Introduction

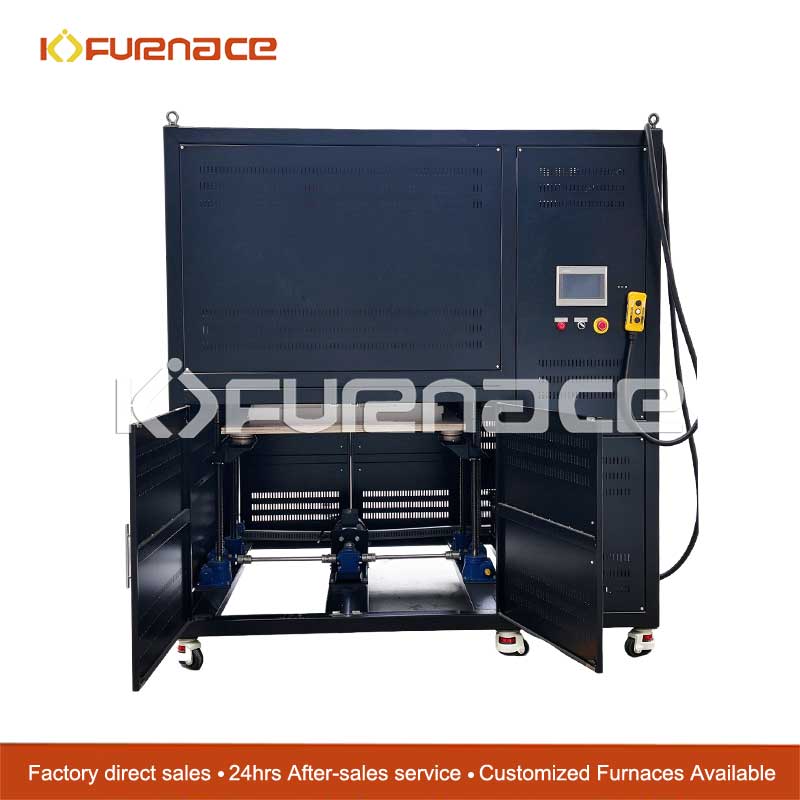

The KJ-MZ1600-221LD is a bottom-loading bell (muffle) furnace designed for high-temperature sintering and heat treatment up to 1600 °C. The furnace body stays fixed while the worktable lifts vertically on a motorized drive, loading the charge into a 700 × 700 × 450 mm chamber from below. MoSi₂ (silicon-molybdenum) heating rods and a Type B thermocouple deliver stable, uniform high-temperature performance at 1400 °C continuous working temperature.

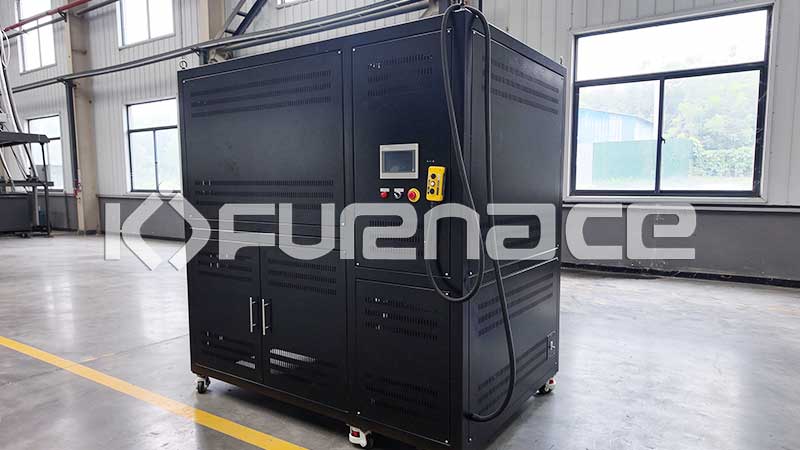

Housed in a ventilated black mobile cabinet with locking casters, the furnace is operated through a touch-screen controller and a remote hand pendant. The bottom-loading arrangement gives convenient access for bulky loads, allows faster cycle cooling, and makes it well suited to ceramic sintering, metal heat treatment, and materials research.
Applications
1. Ceramic sintering and debinding — structural ceramics, electronic ceramics, and ceramic parts2. Metal heat treatment — annealing, hardening, and tempering of small parts
3. Glass annealing and fusing — stress relief and glass working
4. Brazing and sealing — metal-to-ceramic brazing and hermetic sealing
5. Refractory and composite materials research — cements, refractories, and advanced-material processing
6. Small-batch production and QC labs — R&D, pilot, and quality-control heat treatment
