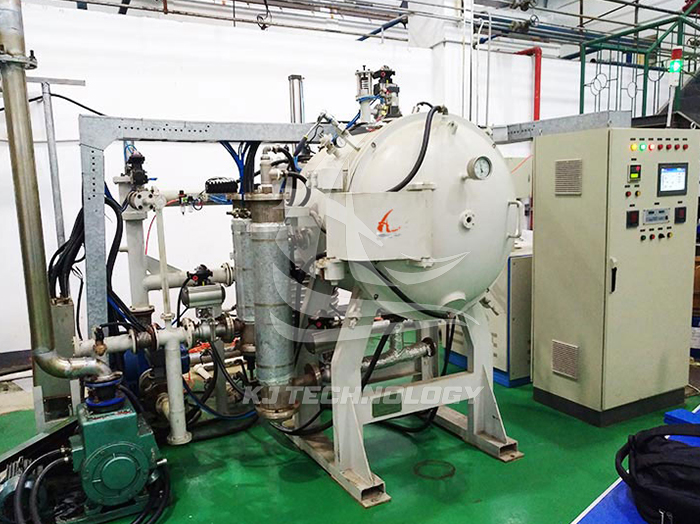

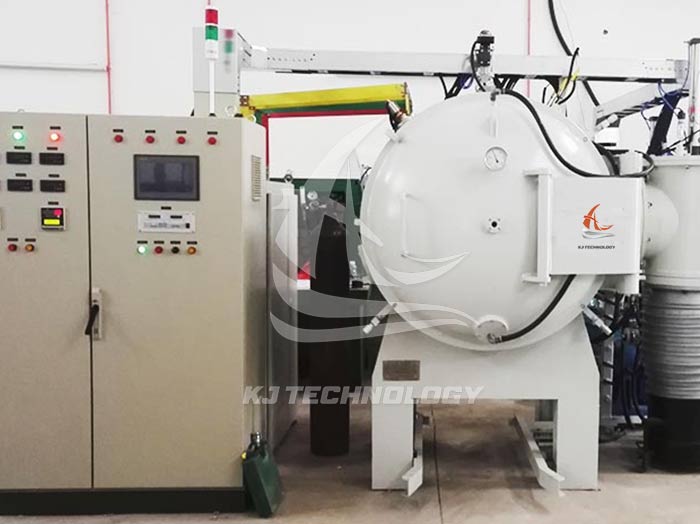

Titanium alloy sintering furnace
  • Titanium alloy sintering furnace
  • Titanium alloy sintering furnace
  • Titanium alloy sintering furnace
  • Titanium alloy sintering furnace
  • Model:KJ-V1600

    Titanium alloy sintering furnace

    Description:

    ​​​​​​​This equipment is not only suitable for titanium alloys, but also can be used for sintering of other metal materials, cemented carbide, etc., which can meet the sintering needs of different materials.
    ...


    This equipment is not only suitable for titanium alloys, but also can be used for sintering of other metal materials, cemented carbide, etc., which can meet the sintering needs of different materials.

    Widely used in the aerospace field to manufacture titanium alloy structural parts; in the biomedical field, to produce artificial joints, dental implants, bone trauma repair materials, etc.; in the electronic information field, to prepare titanium alloy electronic components, semiconductor packaging materials, etc.; in the mechanical engineering field, to manufacture titanium alloy tools, bearings, gears and other mechanical parts; and high-end equipment manufacturing industry, etc. Due to the high strength and low density characteristics of titanium alloys, its manufacturing and processing are difficult, and high-precision and high-efficiency tools are required to complete processing, forming and other processes.



    Titanium alloy sintering furnace  Titanium alloy sintering furnace



    features
    • The working space is extremely pure, fully guaranteeing the performance of the processed products.

    • Equipped with interlocking functions such as temperature, pressure, water pressure, vacuum, etc., with highly safe protection and prevention functions.

    • High ultimate vacuum degree and fast evacuation speed.

    • Fully automatic program operation.

    Technical Parameters
    Model Effective heating area size
    (width * height * depth/mm)
    Maximum temperature(℃) Ultimate vacuum(pa) Temperature uniformity(℃) Pressure rise rate(Pa/h) Loading capacity(kg)
    KJ-V1600-12W 200*200*300 1500 6.67*10-3Pa ±5 ≤0.67 30
    KJ-V1600-36W 300*300*400 1500 6.67*10-3Pa ±5 ≤0.67 80
    KJ-V1600-96W 400*400*600 1500 6.67*10-3Pa ±5 ≤0.67 120

    The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
