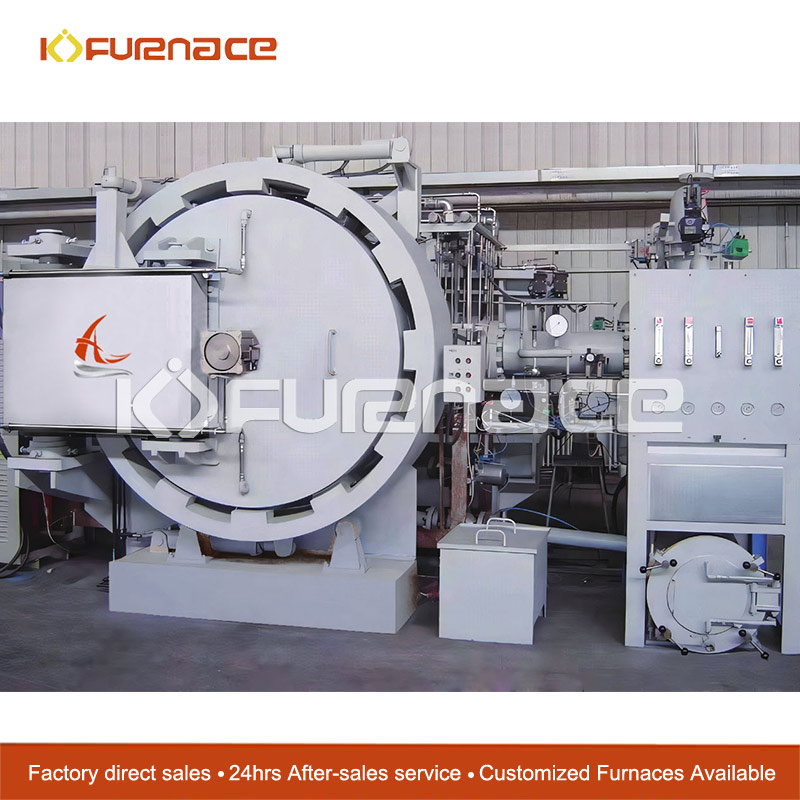

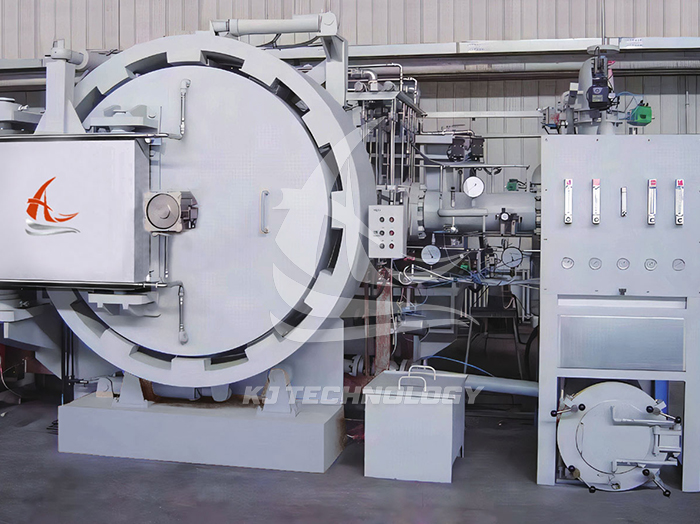

Vacuum degreasing and sintering integrated furnace

Model：KJ-V1600

Vacuum degreasing and sintering integrated furnace

Description：

The vacuum degreasing sintering furnace is mainly used for the degreasing sintering process of cemented carbide, metal ceramics, stainless steel (nickel-based), iron-based, titanium alloy, alloy steel, high-speed steel and other metals....

Email：web@kejiafurnace.com

Leave A Message

Online Chat

IntroductionFeaturesTechnical ParametersInquiryCustomer Case

Introduction:
The vacuum degreasing sintering furnace is mainly used for the degreasing sintering process of cemented carbide, metal ceramics, stainless steel (nickel-based), iron-based, titanium alloy, alloy steel, high-speed steel and other metals.

Widely used in the processing and manufacturing of medical and equipment parts (orthodontic series products. Freight elevator sampling forceps, etc.), mobile phone parts (metal decorative parts of the shell, metal navigation keys, card tray keys, buckles, shafts, mobile phone vibrators, etc.), computer parts and hardware tools.

features

Special hot zone structure and heating element design to ensure good temperature uniformity; Professional degreasing device, well sealed and removable, can effectively prevent internal component contamination;
Equipped with vacuum sintering, micro positive pressure sintering, partial pressure sintering, micro negative pressure degreasing and micro positive pressure degreasing functions.
The furnace cover is pneumatically locked to ensure positive and negative pressure bidirectional sealing，optional rapid cooling system.
Equipped with temperature, pressure, water pressure, vacuum and other interlocking functions, with highly safe protection and prevention functions.

Technical Parameters

Model	Effective heating area size (width * height * depth/mm）	Maximum temperature(℃)	Ultimate vacuum(pa)	Temperature uniformity(℃)	Pressure rise rate(Pa/h)	Loading capacity(kg)
KJ-V1600-12W	200200300	1600	≤5Pa	±5	≤0.67	30
KJ-V1600-36W	300300400	1600	≤5Pa	±5	≤0.67	80
KJ-V1600-96W	400400600	1600	≤5Pa	±5	≤0.67	180
KJ-V1600-175W	500500700	1600	≤5Pa	±5	≤0.67	300
KJ-V1600-324W	600600900	1600	≤5Pa	±5	≤0.67	500
KJ-V1600-768W	8008001200	1600	≤5Pa	±5	≤0.67	800

The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
