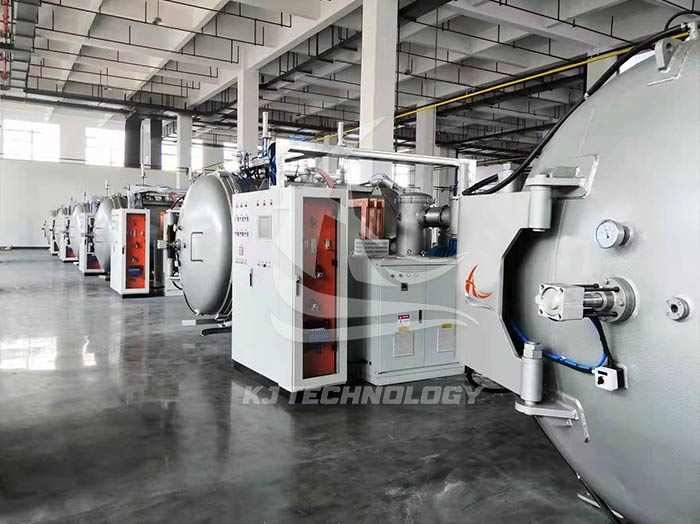

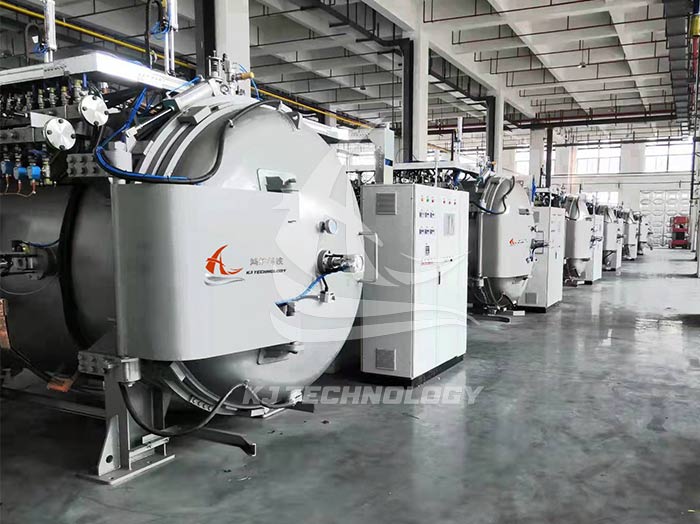

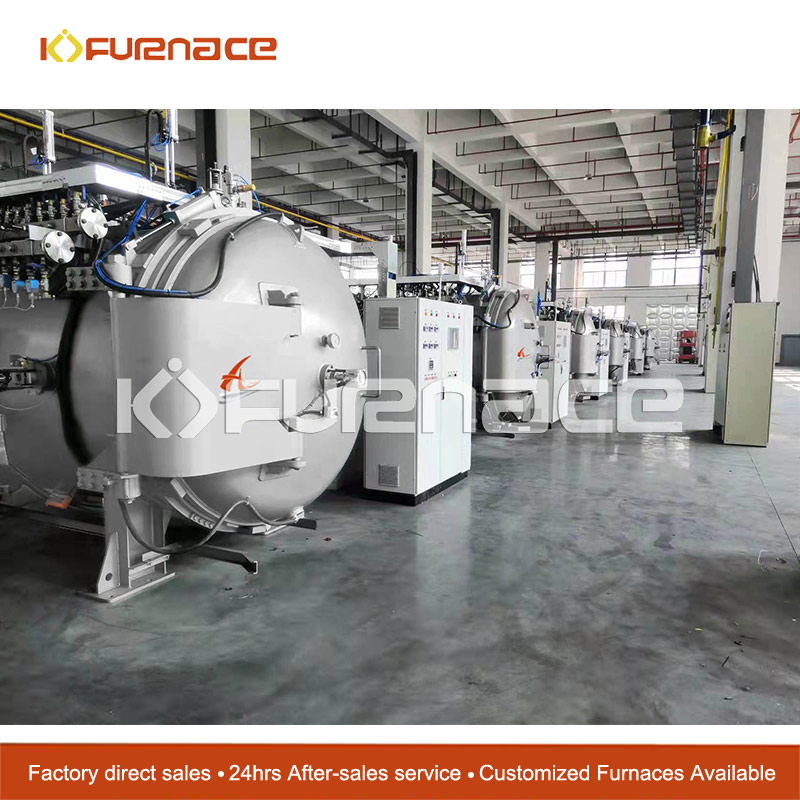

Silicon carbide reaction sintering furnace
  • Silicon carbide reaction sintering furnace
  • Silicon carbide reaction sintering furnace
  • Silicon carbide reaction sintering furnace
  • Silicon carbide reaction sintering furnace
  • Model:KJ-V1800

    Silicon carbide reaction sintering furnace

    Description:

    Silicon carbide reaction sintering furnace is used for vacuum sintering of metals such as cemented carbide, copper-tungsten alloy and alloy materials composed of refractory metals, as well as high-temperature sintering of ceramic materials and silicon car...

    Introduction:
    Silicon carbide reaction sintering furnace is used for vacuum sintering of metals such as cemented carbide, copper-tungsten alloy and alloy materials composed of refractory metals, as well as high-temperature sintering of ceramic materials and silicon carbide. The mechanical design of the equipment is advanced and reasonable, and the design and manufacturing comply with the corresponding national and industry standards and specifications to meet the user's requirements. Its supporting products and components are at the international advanced level, and can adapt to long-term, stable, safe and reliable production needs, and the equipment has a good energy-saving effect. The use, operation and maintenance of the equipment are convenient and simple, the shape is beautiful, safe and reliable, and the after-sales service is fast and efficient.

    The composite ceramics produced by the silicon carbide reaction sintering furnace are widely used in military bulletproof, lithium battery new energy, semiconductors, sanitary and building ceramics, chemicals, power plants and automobiles.



    Silicon carbide reaction sintering furnace  Silicon carbide reaction sintering furnace



    features
    • Reasonable arrangement of heating elements, large radiation area, long lifespan, and lower failure rate;

    • Optimized heating chamber structure, fast heating, good insulation effect, energy saving and consumption reduction; Dual level pressure protection for safer use.

    • Integrate rapid cooling to improve production efficiency; Multiple condensation and replenishment methods to extend the lifespan of vacuum pumps.

    • A one to two structure can be developed to save space and reduce investment costs;

    Technical Parameters
    Model Effective heating area size
    (width * height * depth/mm)
    Maximum temperature(℃) Ultimate vacuum(pa) Temperature uniformity(℃) Pressure rise rate(Pa/h) Loading capacity(kg)
    KJ-V1800-936W 600*600*2600 1800 5Pa ±5 ≤0.67 600
    KJ-V1800-1260W 600*600*3500 1800 5Pa ±5 ≤0.67 800
    KJ-V1800-1470W 700*700*3000 1800 5Pa ±5 ≤0.67 1000
    KJ-V1800-1960W 700*700*4000 1800 5Pa ±5 ≤0.67 1200
    KJ-V1800-2200W 700*700*4500 1800 5Pa ±5 ≤0.67 1500


    The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
