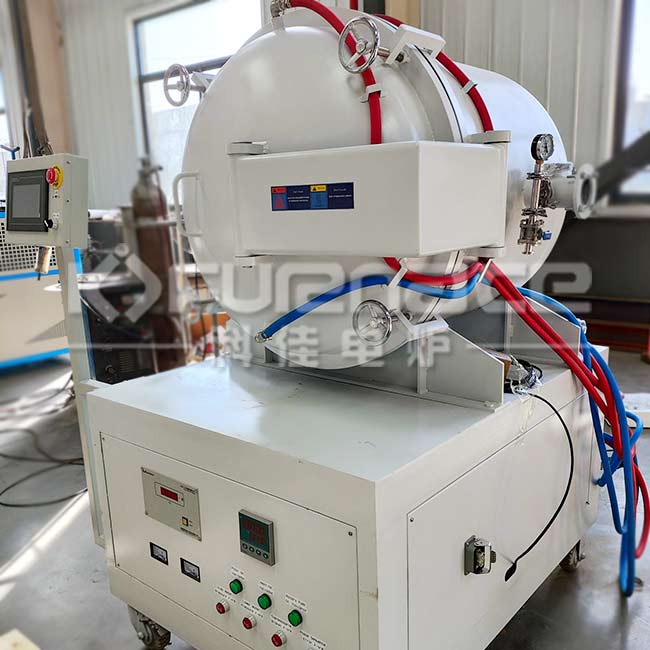

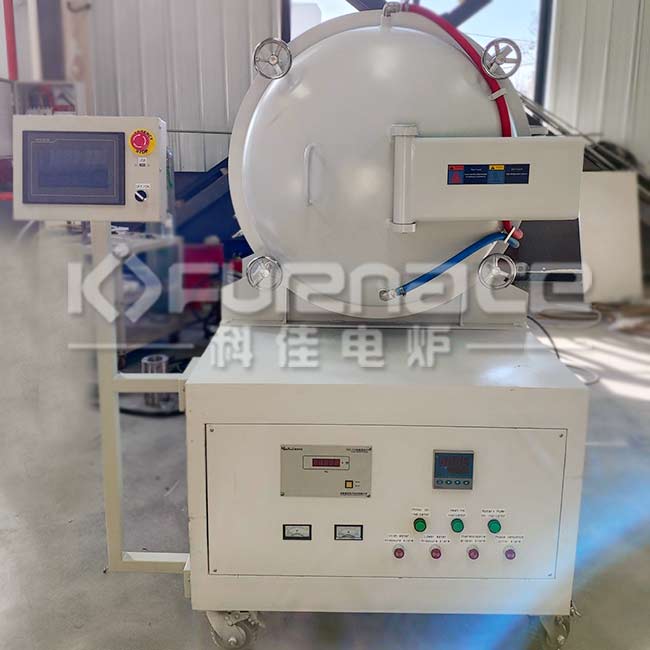

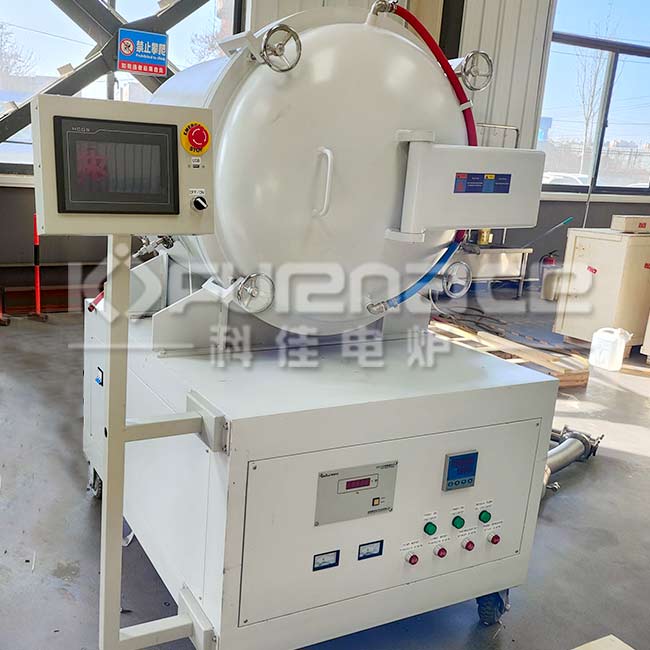

1600℃ Vacuum Fiber Furnace
  • 1600℃ Vacuum Fiber Furnace
  • 1600℃ Vacuum Fiber Furnace
  • 1600℃ Vacuum Fiber Furnace
  • 1600℃ Vacuum Fiber Furnace
  • 1600℃ Vacuum Fiber Furnace

    Model:KJ-VX1600-12CWD

    Description:

    KJ-VX1600-12CWD vacuum furnace is used for vacuum sintering of powder material such as,rare earth permanent magnet alloy, carbide, metal ceramics, etc. and vacuum brazing, such as high temperature alloy, cemented carbide alloy, ceramic, etc. The furnace i

    Introduction:
    KJ-VX1600-12CWD vacuum furnace is used for vacuum sintering of powder material such as,rare earth permanent magnet alloy, carbide, metal ceramics, etc. and vacuum brazing, such as high temperature alloy, cemented carbide alloy, ceramic, etc. The furnace is equipped with a mechanical rotary vacuum pump to ensure a max. vacuum degree of 10Pa.

    Features:
    1.High purity fiber alumina board chamber for the best energy saving;
    2.The temperature is controlled by precision SCR.
    3.The furnace chamber is ceramic fiber brick with excellent thermal insulation.

    Technical Parameter:

    Furnace Part

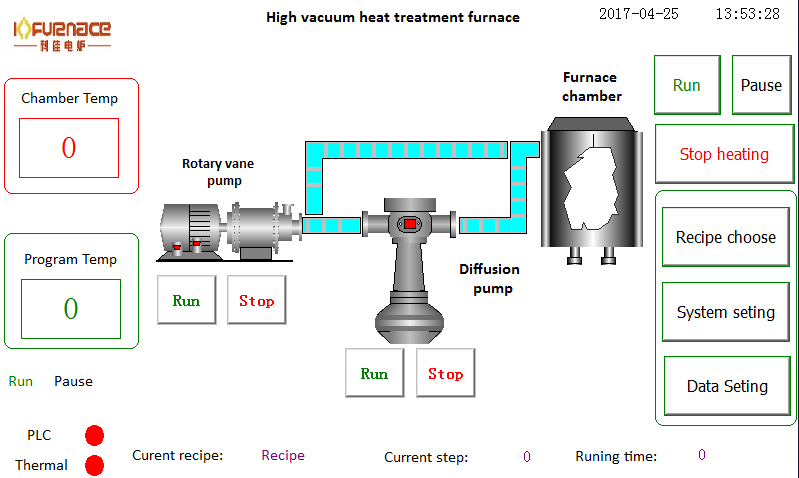

    Display Touch Screen
    lcd touch screen
    LCD touch screen can operate both furnace and vacuum pump systems.
    Over 16working programs can be set and saved
    Heating curves can be saved
    Body structure Double Layer carbon steel Shell with water cooling jacket.
    (water chiller is not included.)
    Furnace shell High intensity carbon steel with electrostatic spraying
    Furnace chamber Alumina fiber insulation materials
    Max. Temp. 1600℃ for short time
    Continuous working temp. ≦1500℃ i
    Heating rate Suggest≦ 10℃/min
    Heating elements MoSi2 Heating Elements
    Furnace chamber size 200*200*300mm W*H*D
    Temperature  Control 30 segment “time - temperature” curve adjustable and PID auto control
    Temperature controller Linear output current
    Sealing method Vaccum tank
    Over-temperature alarm Yes
    Over-current protection Yes
    Thermocouple broken indication Yes
    Temperature measuring elements B type thermocouple
    Suction mouth 1 pc
    Gas Outlet Port   1 pc
    Gas Inlet Port  1 pc
    Power supply Single Phases 220V 50Hz (or according to your requirement)
    Max. Power 6KW
    Vacuum System Part
    Max. Vacuum 10Pa
    Vacuum Tank Silicone sealing device
    Hand wheel locking device
    Vacuum system
    Max. Vacuum degree of furnace chamber is
    10Pa

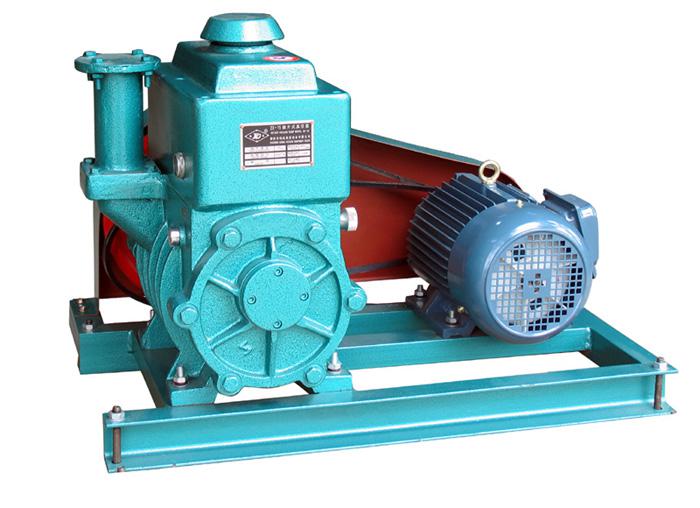

    A vacuum pressure tan,mechanical rotary vane vacuum pump+ digital vacuum gauge
     mechanical rotary vane vacuum pump
    vacuum pump
    After sale service   12 month quality warranty except Consumables parts like heating elements
    Package Plywood wooden packaging
    Standard Accessories Protective Glove x 1 pair
    Crucible Tong x 1 pair
