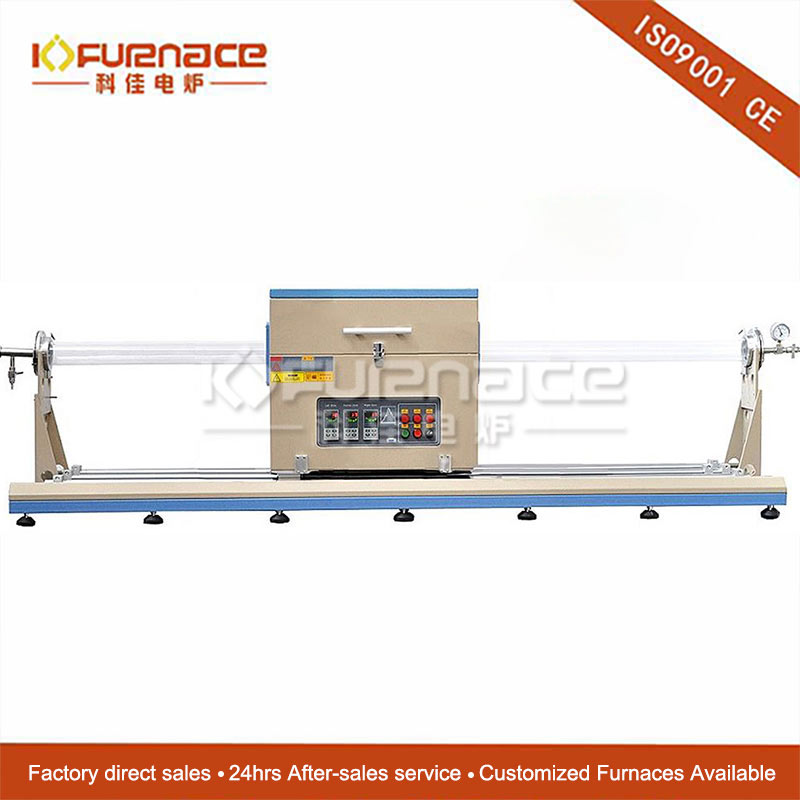

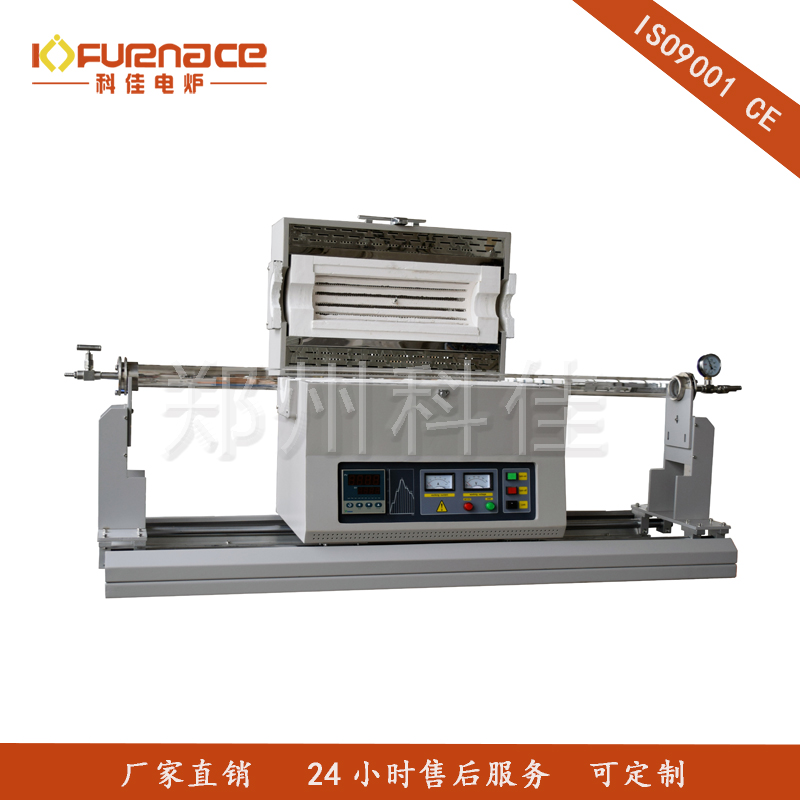

Double furnace tube Sliding Tube Furnace
  • Double furnace tube Sliding Tube Furnace
  • Double furnace tube Sliding Tube Furnace
  • Double furnace tube Sliding Tube Furnace
  • Double furnace tube Sliding Tube Furnace

    • Double furnace tube Sliding Tube Furnace

    Model：KJ-T1200S-II

    Description：

    KJ-T1200S-II Sliding Tube Furnace can heat the sample in different environment, such as, vacuum, atmosphere, and air. The main application, quick annealing of many kinds of material, silicidation, diffusion, crystallization and densification, etc.

    Email：web@kejiafurnace.com
    Leave A Message Online Chat
    IntroductionFeaturesTechnical ParametersInquiryCustomer Case
    Brief Introduction:
    KJ-T1200S-II Sliding Tube Furnace can heat the sample in different environment, such as, vacuum, atmosphere, and air. The main application, quick annealing of many kinds of material, silicidation, diffusion, crystallization and densification, etc.


    features

    • (1).Double layer steel structure with cooling fans.

    • (2).One pair of sliding rails are installed on bottom of furnace, which allows furnace to be manually moved from side to side.

    • (3).Vacuum flanges and a vmechanical pressure gauge are installed  for immediate use.

    • (4).Sliding rail length is about 1800mm.

    Technical Parameters








    KJ-T1200S-II Sliding tube furnace(Two tube furnaces on one sliding rail)

         		 Display LED
    Max. Temperature 1200℃
    Continuous working temperature ≤1100℃
    Heating Rate 0~20℃/min(suggest 0-10℃/min)

    Furnace tube    		 Tube size: OD50/ID44 x L1800mm
    First furnace: Heating zone length: 350mm
    Second furnace: Heating zone length: 150mm
    Heating Element Resistance wire with Mo
    Sliding Rails / Table Double sliding rail made by Cr plated steel Sliding length: 1800 mm
    Thermocouple K Type
    Tube material High purity quartz
    Sealing flanges Stainless steel water cooling KF25 flangesOne side with Mechanical vacuum gauge
    Max. Heating Power 5.0 KW
    Accuracy ±1℃
    Temperature Control -Two furnaces with separate temperature controller
    -30 steps PID automatic control via SCR power control
    Working Voltage 220V, Single phases, 50HZ(or according to your requirement)
    Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)


    We can customize different functions, categories, temperatures, sizes, etc. according to customer needs. Welcome all friends come to inquire.
    double tube sliding tube furnace
