Model:KJ-T1200
Description:

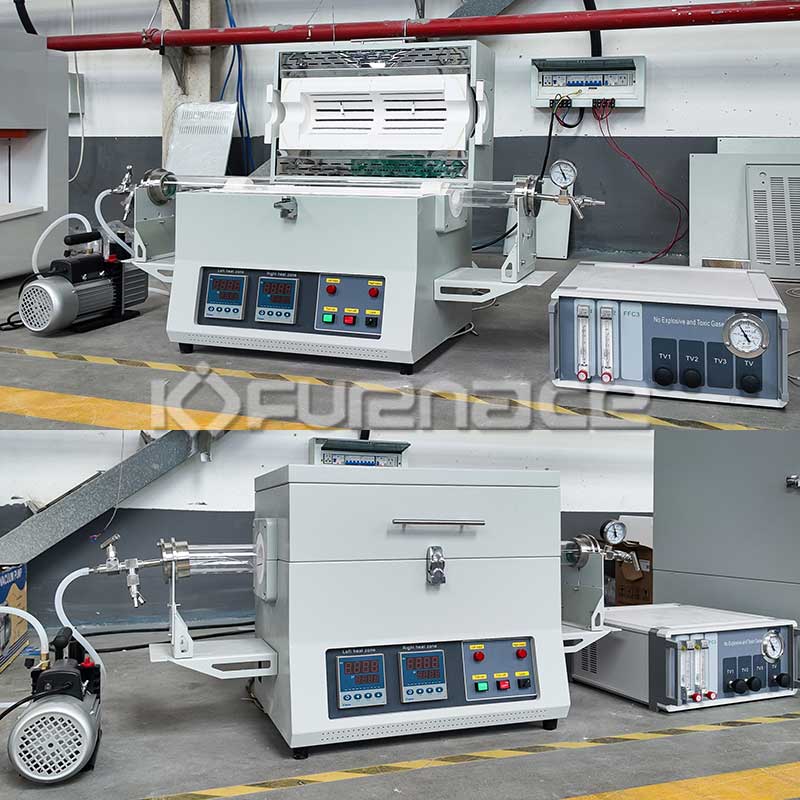

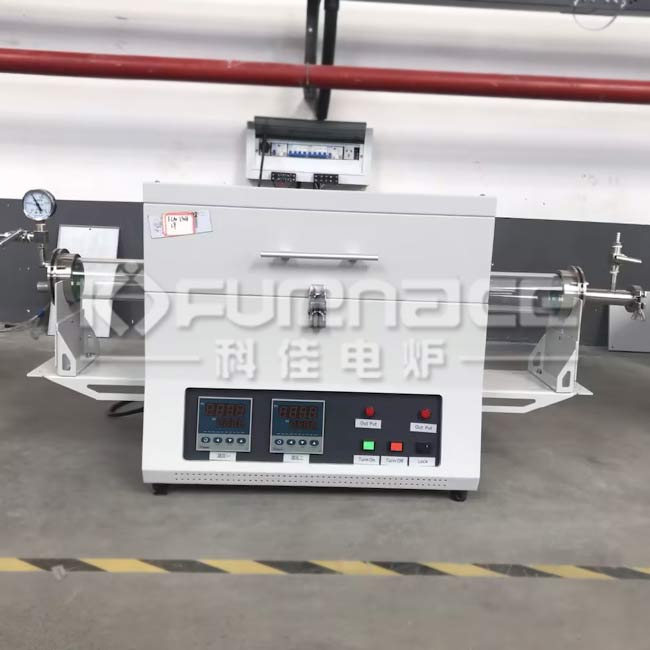

KJ-T1200 is a compact laboratory tube furnace with a heating chamber made of high-purity alumina ceramic fiber. With 0Cr27Al7Mo2 resistant wires and intellectual 30-segment PID controller, it can work up to 1200℃.
Polycrystalline fiber furnace, energy-saving and corrosion-resistant.
Microcomputer PID control, temperature control accuracy up to ±1℃.
The furnace body is equipped with a monitoring meter for real-time observation.
Over-temperature protection and alarm, high safety factor.
Model | KJ-TG1200-S40 | KJ-TG1200-S60 | KJ-TG1200-S80 | KJ-TG1200-S100 | KJ-TG1200-S120 | KJ-TG1200-S150 | KJ-TG1200-S230 | |
Top Temperature | 1200℃ | |||||||
Working Temperature | 1100℃ | |||||||
Tube material | Quartz Tube | |||||||
Tube Diameter/mm (Customization) |
Φ40 | Φ60 | Φ80 | Φ100 | Φ120 | Φ150 | Φ230 | |
Heating zone length/mm (Customization) |
200/300/440/500/600 | |||||||
Heating number | Single or multiple temperature zones, customizable upon request. | |||||||
Other specifications can be customized according to customer needs. | ||||||||
Furnace chamber material | High-Purity Alumina Ceramic fiber | |||||||
Furnace shell structure | Carbon steel shell, double-layer shell with air cooling system | |||||||
Heating Rate | suggest 0-10℃/min | |||||||
Temperature control accuracy | ±1℃ | |||||||
Temperature control method | PID control and auto-tuning, intelligent 30-step programmable | |||||||
Furnace structure | Horizontal type | |||||||
Temperature protection | Over-temperature and burnout protection | |||||||
Working environment | Atmospheric pressure/vacuum/atmosphere | |||||||
Furnace door opening method | Sealed or open (optional) | |||||||
Sealing | Stainless steel vacuum flange with valve and mechanical pressure | |||||||
Optional | Flow meter, vacuum system, door-opening power-off, touch screen, remote control, computer display | |||||||
Customizable multi-temperature zone tubular furnace. Click for details. |
