Rotary tilting tube furnace
  • Rotary tilting tube furnace
  • Rotary tilting tube furnace
  • Rotary tilting tube furnace
  • Rotary tilting tube furnace
  • Rotary tilting tube furnace

    Model:KJ-RT700-100

    Description:

    This rotary tube furnace has functions of rotation and tilting. It is mainly designed for the sintering of inorganic compounds, such as mineral particles and battery materials, with better uniformity.

    Brief Introduction:
        This rotary tube furnace has functions of rotation and tilting. It is mainly designed for the sintering of inorganic compounds, such as mineral particles and battery materials, with better uniformity.

    Main Specifications:
    Product Name Rotary tilting tube furnace
    Model KJ-RT700-100(300*300*300)
    Display Touch Screen(temperature control+Catalyst Feeder control)
    Furnace Structure Double-layer housing
    Cooling system Air-cooling system
    Tube Material 316L Stainless steel Tube
    Tube Diameter 100mm(Tube OD)
    Tube Length 1500mm

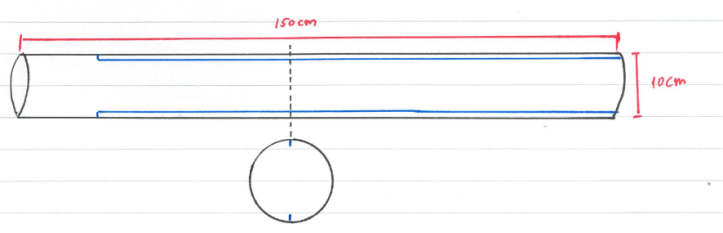

    Tube Baffle Design
    Base on final design
    Heating zone length 300*300*300mm(3 zones)
    Working Temperature 700℃
    Heating element SIC ROD
    Thermocouple K Type
    Temperature Control PID automatic control via SCR power control
    Heating Curves 30 steps programmable
    Safety Device Over-temperature Alarm
    Over-current protection
    Power off when door open
    Thermocouple broken indication
    Chamber Material Alumina fiber
    Heating Rate 0--20℃/min
    Temperature Control Accuracy ±1℃
    Furnace door structure Split type
    Power Supply 380V 50/60 HZ
    Max output power Base on final design
    Tilting Angle 0-35℃
    (An extra protractor will be made on the furnace, that
    would be easy for setting the tilting angle you need)
    Tube rotating Speed 0-5rpm(Both Clockwise or Counter-Clockwise)

    Mobile box
    The lower box is a movable box, and can also be used as
    a material rack, and the whole furnace is easy to move.
    Feeding System
    1. 1# Feeding Bin for raw material: 5L Volume(316L stainless steel, Manual Operation)
    2. Vibration Feeder:
    3. 2# Feeding Bin for catalyst: 5L Volume(316L
    stainless steel )
    The feeding valve can be opened electrically at
    regular intervals, and the customer only needs to set
    the feeding time,Touch screen controlled).
    Discharge System
    1. 5L Volume(316L stainless steel)

    For reference only
    1. Furnace tube cap: SS316 Flange with 5 cm opening
    Standard Accessories Stainless steel tube ×1pc
      Furnace handle hook×1pc
      Protective gloves x 1 pair
      Allen key x 1 pc
    Package Wooden box
    Warranty One year limited warranty&lifetime technical support (Consumable parts such as heating elements are not covered by the warranty)

    rotary inclined tube furnace
