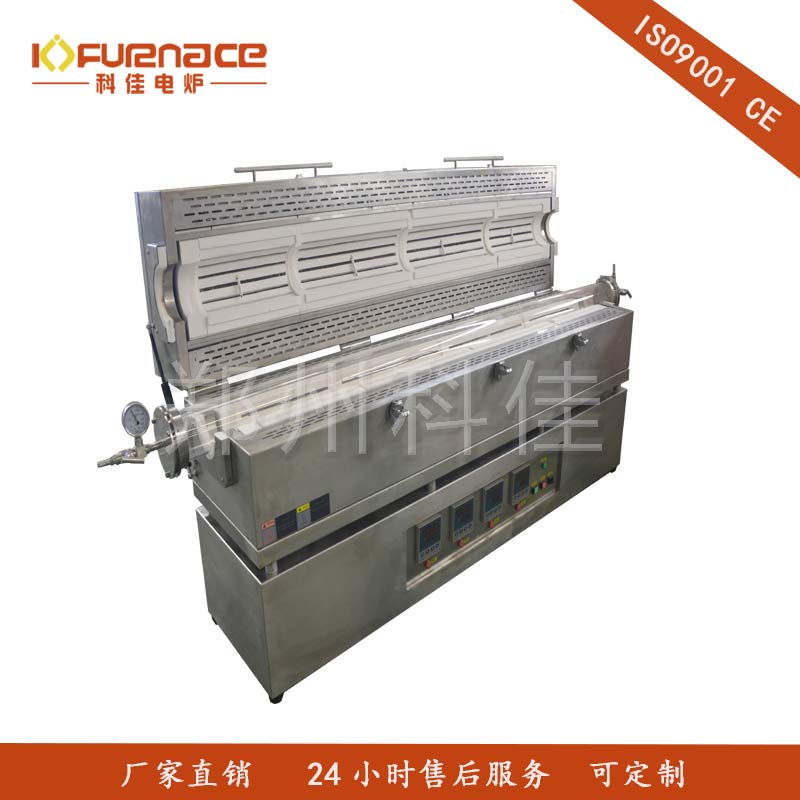

Four Zone Tube Furnace
  • Four Zone Tube Furnace
  • Four Zone Tube Furnace
  • Four Zone Tube Furnace
  • Four Zone Tube Furnace
  • Four Zone Tube Furnace

    Model:KJ-T1200-IV

    Description:

    KJ-T1200-IV four zone tube furnace adopts alumina ceramic fiber as insulation layers, double-layer structure. Four heating zones can work separately with different temperatures. It can work precisely with PID and intellectual temperature con

    Specific Introduction:
        This KJ-T1200-IV tube furnace is mainly used for sintering, coating, Nanotube study, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises.

    Parameters:

    Model

    KJ-T1200-IV

    KJ-T1400-IV

    KJ-T1600-IV

    Top Temperature

    1200℃

    1400

    1600

    Working Temperature

    1100℃

    1300℃

    1500℃

    Tube Diameter

    Φ60/80/100/120

    Quartz

    Φ60/80

    Alumina ceramic

    Heating zone length

    220+220+220+220mm/300+300+300+300mm

    Insulation layers

    High-Purity Alumina Ceramic fiber

    Power Supply

    110/220V 50/60HZ

    Heating Rate

    0-20℃/min

    Control Accuracy

    ±1℃

    Temperature Sensor

    K-type Thermocouple

    S-type Thermocouple

    B-type Thermocouple

    Heating Element

    0Cr27Al7Mo2 Resistance Wire

    SiC Heating Rods

    MoSi2 Heating Rods

    Sealing

    Flanges

    Structure

    Split

    Split and Non-split

    Non-split

    Accessories

    Gloves, Crucibles, Tongs, Crucible hook.

    Optional

    Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.

    Customization is available.
