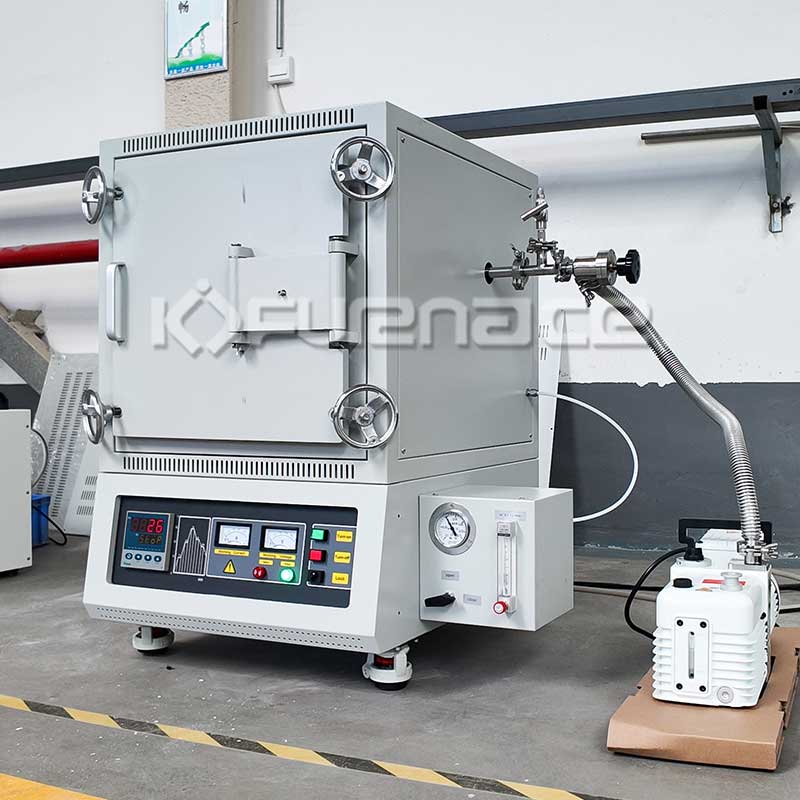

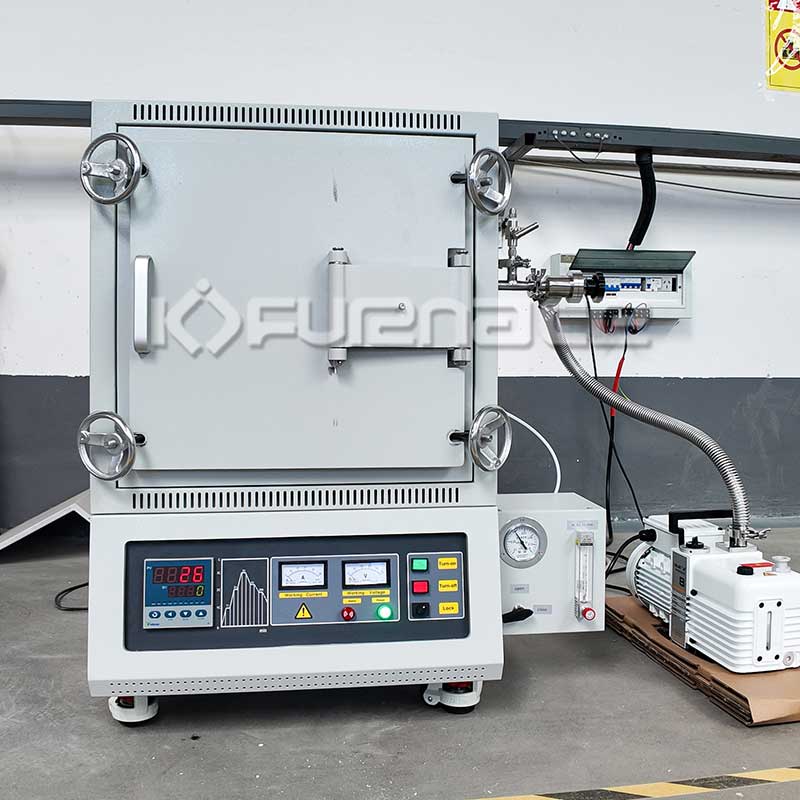

KJ-A1600-3.38LZ atmosphere furnace
  • KJ-A1600-3.38LZ atmosphere furnace
  • KJ-A1600-3.38LZ atmosphere furnace
  • KJ-A1600-3.38LZ atmosphere furnace
  • KJ-A1600-3.38LZ atmosphere furnace
  • KJ-A1600-3.38LZ atmosphere furnace

    Model:

    Description:

    KJ-A1600-3.38LZ atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of

    Brief Introduction:
        KJ-A1600-3.38LZ atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.

    Technical Parameter:
    Display LED display
    Chamber material Alumina fiber
    Max. Temperature 1700℃
    Constant working temperature ≦1600℃
    Heating elements Mosi2 Rods
    Heating rate 0-10℃/min (Max 20℃/min)
    Inside chamber size 150×150×150mm (W×H×D)
    Volume 3.38L
    Temperature accuracy ±1℃
    Thermocouple S type
    Temperature control 30 segments programmed setting control
    Voltage AC 110-480V, 50/60HZ
    Output Power 4KW
    Float flowmeter for Argon Flow range can be desiged on your request.
    Inlet&Outlet 1 Inlet+1 Outlet+1 Vacuum Port(KF16)
    Mechanical vacuum gauge -0.1-0.15MPA measurement range
    Warranty One year (consumable parts such as heating elements are not covered by the warranty)
    Standard Accessories Thermal gloves
    Crucible Tong
    Thermocouple
    Furnace Door Block
    User Manual
