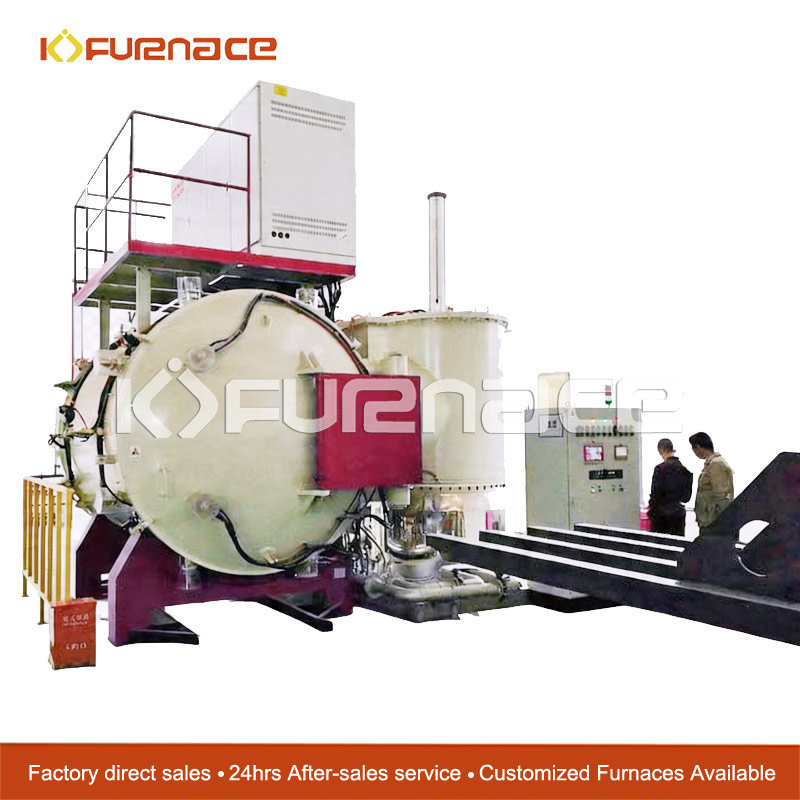

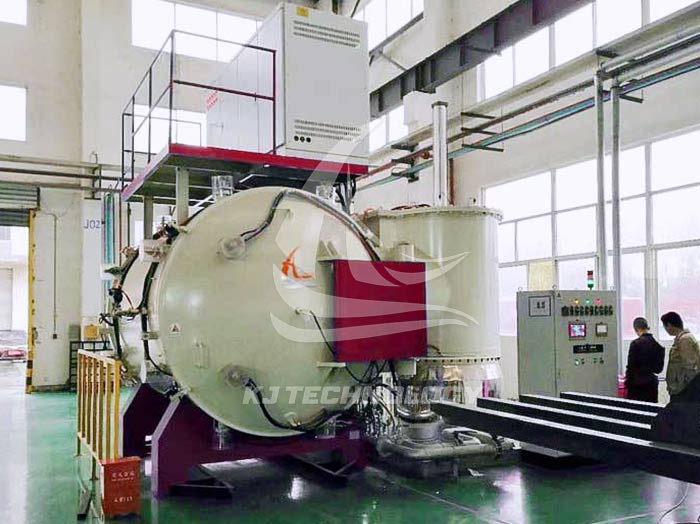

Aluminum brazing vacuum furnace(Low temperature)

Model：KJ-V750

Aluminum brazing vacuum furnace(Low temperature)

Description：

Introduction:
The heating chamber of the vacuum aluminum brazing furnace is heated by nickel-chromium belts and has a composite insulation structure with multip...

Email：web@kejiafurnace.com

Leave A Message

Online Chat

IntroductionFeaturesTechnical ParametersInquiryCustomer Case

Introduction:

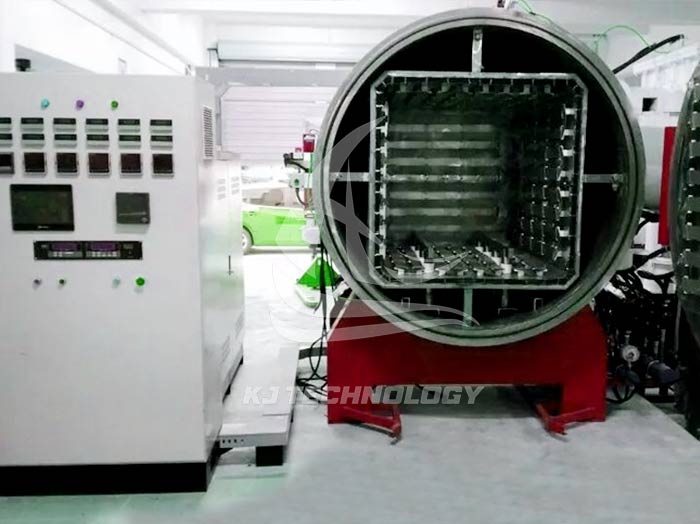

The heating chamber of the vacuum aluminum brazing furnace is heated by nickel-chromium belts and has a composite insulation structure with multiple layers of 1Cr18Ni9Ti reflective screens;

The vacuum system is a three-stage high vacuum system consisting of a diffusion pump, a Roots pump, and a mechanical front pump;

All aluminum brazing furnaces are negative pressure furnaces, and external circulation air cooling systems can also be installed according to customer requirements;

The size of the effective area can be customized according to customer needs;

Computer control system;

Application:
Used for vacuum brazing of heat exchangers and electronic communication components used in automobiles, aircraft, ships, compressors, air separation equipment, household appliances, etc.

Aluminum brazing vacuum furnace

features

Single chamber, internal heating, cold wall, horizontal or vertical structure; Reasonable arrangement of heating elements, large radiation area, long life;
Multi-zone heating and multi-zone temperature control to ensure good temperature uniformity in the working area; Reasonable design of metal heat insulation screen, good insulation effect, saving electricity.
Multiple recording, multiple monitoring and alarm devices; Special setting of water-cooled electrodes to prevent power short circuit caused by magnesium precipitation.
Good working vacuum and pressure rise rate, good surface quality of workpiece.

Technical Parameters

Model	Effective heating area size (width * height * depth/mm）	Maximum temperature(℃)	Ultimate vacuum(pa)	Temperature uniformity(℃)	Pressure rise rate(Pa/h)	Loading capacity(kg)
KJ-V750-12W	200200300	750	6.67*10-3	±5	0.67	30
KJ-V750-36W	300300400	750	6.67*10-3	±5	0.67	80
KJ-V750-96W	400400600	750	6.67*10-3	±5	0.67	200
KJ-V750-175W	500500700	750	6.67*10-3	±5	0.67	300
KJ-V750-324W	600600900	750	6.67*10-3	±5	0.67	500
KJ-V750-768W	8008001200	750	6.67*10-3	±5	0.67	800
