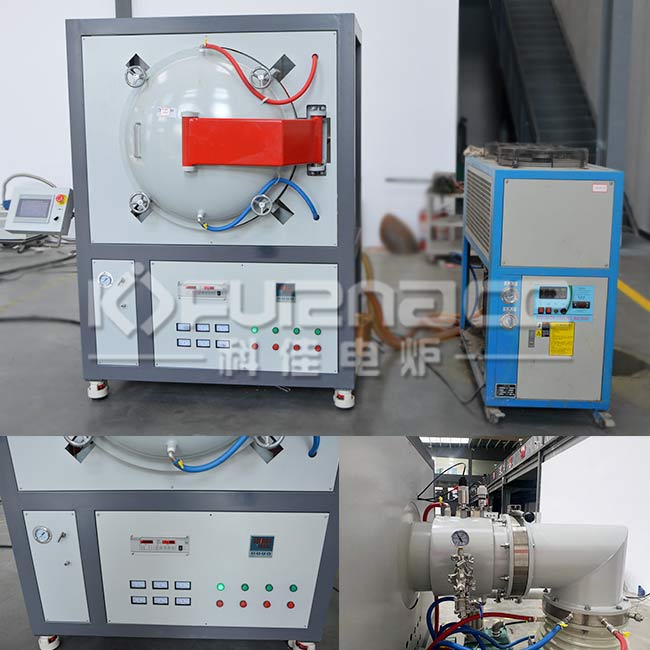

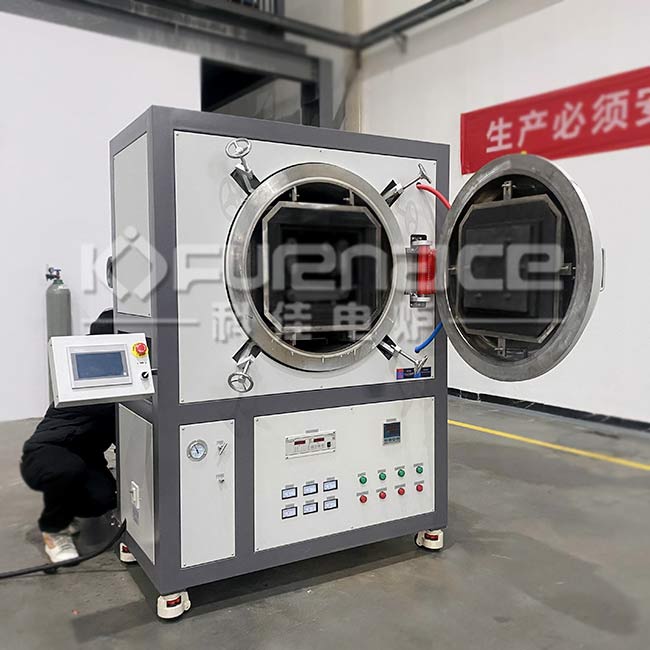

Graphite vacuum furnace
  • Graphite vacuum furnace
  • Graphite vacuum furnace
  • Graphite vacuum furnace
  • Graphite vacuum furnace
  • Graphite vacuum furnace

    Model:KJ-VS1700-12CWG

    Description:

    Kejia vacuum furnace is widely used for heat treatment of metal materials in high vacuum, recursive, protective atmosphere, also can be used for heat treatment of special materials such as carbonization fiber with excellent thermal insulation.

    Introduction:
    Kejia vacuum furnace is widely used for heat treatment of metal materials in high vacuum, recursive, protective atmosphere, also can be used for heat treatment of special materials such as carbonization fiber with excellent thermal insulation.

    Technical Parameters:
    Furnace model KJ-VS1700-12CWG
    Structure Outside shell:
    1, Carbon steel
    2, Double-layer with water running in to keep low temperature.
    Insulation layer:
    Graphite felt.
    Chamber dimension 200x200x300 mm
    Thermocouple B-type thermocouple
    Heating element Graphite board.
    Working temp. 1700 deg.C
    Heating rate 0-20℃/min (Suggestion: 0-10℃/min)
    Temp. accuracy +/-1℃
    Temp. control Screen control (16 temperature curves can be stored.)
    16-segment Programmable controller
    PID automatic controller
    Broken thermocouple protection and automatic over heating protection alarm

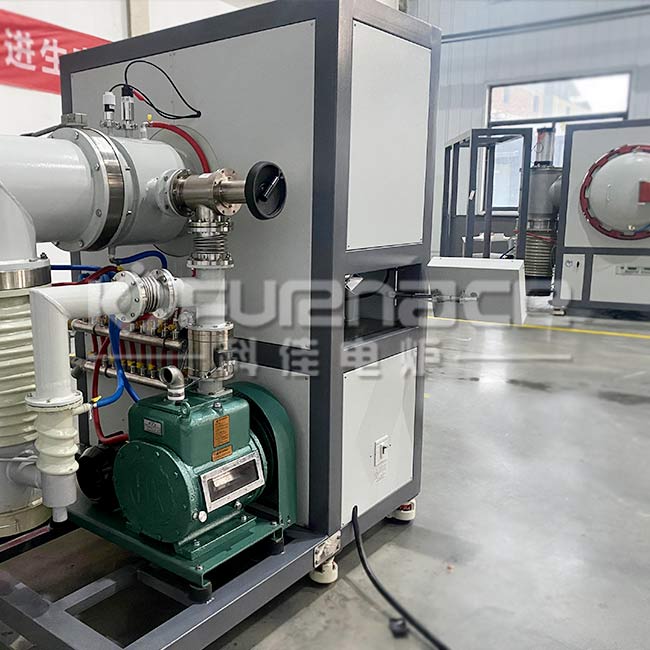

    Vacuum pump system Rotatory vane vacuum pump
    Power 3kw
    Pumping speed 30L/S
    Ultimate degree 6×10(-2)pa
    Diffusion vacuum pump
    Power 4.5kw
    Pumping speed 2000L/S
    Ultimate degree 7×10(-5)pa
    Vacuum gauge  Composite Vacuum Gauge
    Measure range 1.0×105~1.0×10(-5)Pa

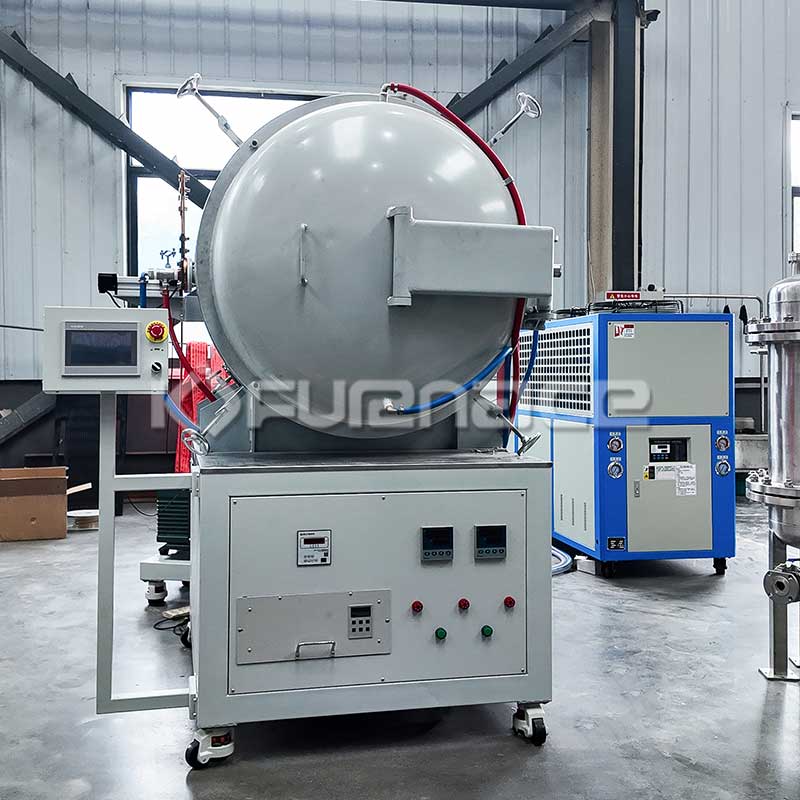

    Cooling system Industry chiller for outside shell and vacuum pumps
    Industry chiller is optional at extra costs and you can just use a water pump and a pool.
    Power 8 KW
    Power supply 380V, Three phase, 50/60Hz(Customized).
    Accessories Gloves, Allen Keys, Heating rods, Tongs.
    Production period 25 working days.
    Warranty period 1 year
