Product Introduction:

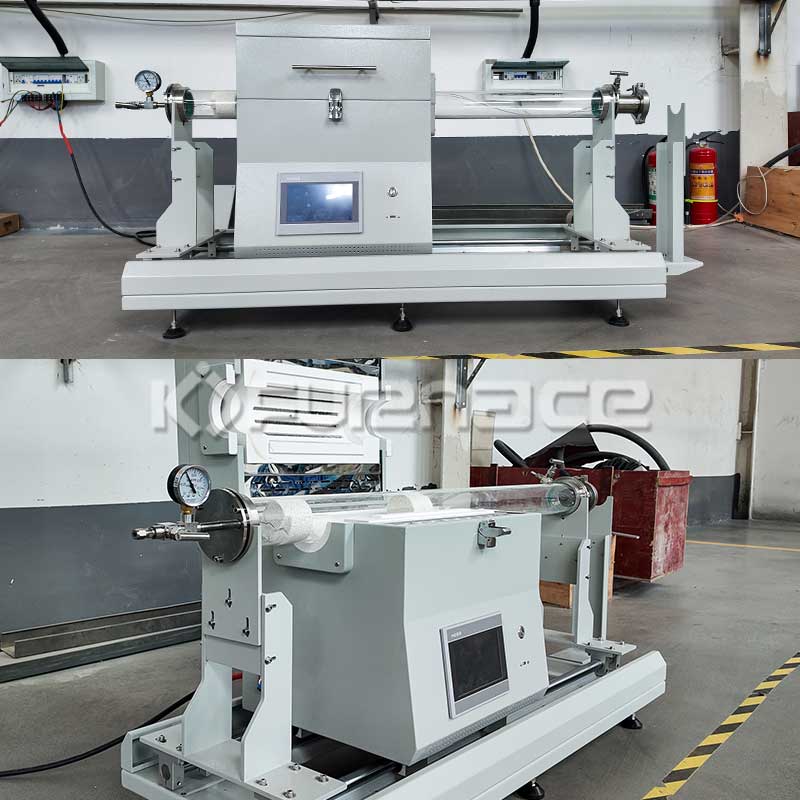

Kejia 1200℃ three-temperature zone sliding rail furnace is a sliding three-temperature zone tube furnace. The outer diameter of the quartz tube is 80mm and the maximum temperature is 1200°C. A pair of slide rails are installed at the bottom of the furnace, which can slide the furnace from one side of the furnace tube to the other side to achieve rapid heating and rapid cooling. To achieve the fastest heating, you can preheat the furnace to the required temperature and slide the furnace body to the sample position. To achieve the fastest cooling, you can slide the furnace body to the other side after heating the sample. It is an ideal equipment for low-cost rapid heat treatment.
Kejia 1200℃ three-temperature zone sliding rail furnace is a sliding three-temperature zone tube furnace. The outer diameter of the quartz tube is 80mm and the maximum temperature is 1200°C. A pair of slide rails are installed at the bottom of the furnace, which can slide the furnace from one side of the furnace tube to the other side to achieve rapid heating and rapid cooling. To achieve the fastest heating, you can preheat the furnace to the required temperature and slide the furnace body to the sample position. To achieve the fastest cooling, you can slide the furnace body to the other side after heating the sample. It is an ideal equipment for low-cost rapid heat treatment.
Technical Parameter:
|
Shell structure |
Double air cooling |
|
Furnace material |
Alumina refractory fiber |
|
Maximum temperature |
1200°C |
|
Working temperature |
≤1100°C |
|
Heating rate |
10℃/min |
|
Heating element |
Resistance wire |
|
Temperature control |
Adopt PID method to adjust the temperature, 30 sections of temperature rise and fall programs can be set, with over-temperature and burnout protection. |
|
Thermocouple |
N Type |
|
Length of heating zone |
220+220+220 |
|
Tube diameter |
80mm |
|
Furnace tube |
High purity quartz tube |
|
Furnace tube length |
80*2400mm |
|
Slide |
Chrome-plated steel double slide rail |
|
Slide rail length |
About 2500mm |
|
Flange |
A set of 304 stainless steel sealing flange, sealed with silicone sealing ring, easy to assemble, and can be repeatedly disassembled. |
|
Passable gas |
Inert gas (slightly positive pressure) |
