Introduction

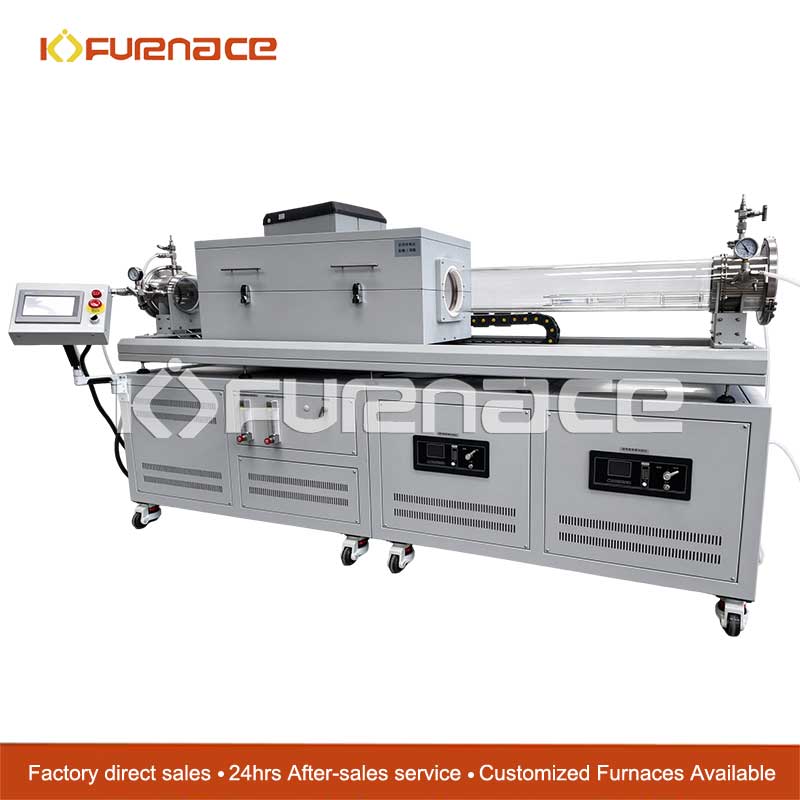

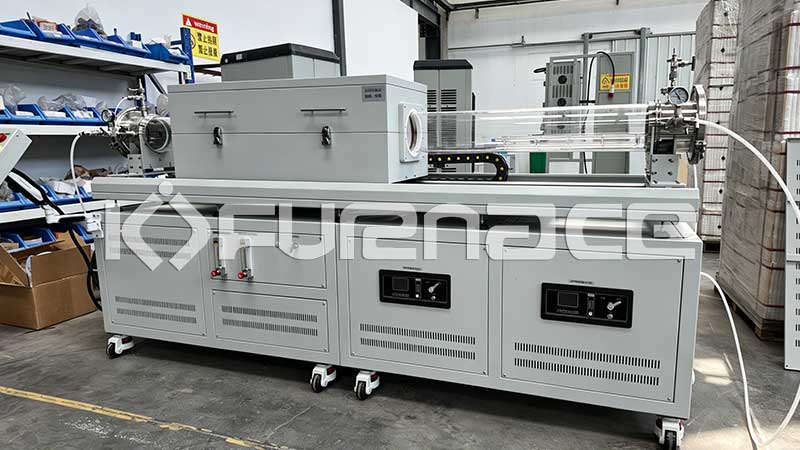

The KJ-TG1100-S170CK-H3 is a high-temperature sliding (rail-type) tube furnace built around a large-bore, long fused-quartz tube. The furnace chamber is mounted on horizontal rails and can be slid left or right by hand; when it is moved away, cooling fans at both ends rapidly bring the parts down to temperature—making the furnace especially suited to annealing small metal parts and electronic materials, where a controlled inert atmosphere and fast cooling after the soak are required.
The system reaches a maximum temperature of 1100 °C (≤1000 °C continuous) across three independently controlled 300 mm zones, giving a 900 mm heated length and a 550 mm constant-temperature zone with ±3 °C uniformity. A 7-inch swing-arm touch screen, smart PID, and 30-segment program control hold temperature within ±1 °C. A double-shell cabinet, integrated lower electrical enclosure, quick-release flanges, dual gas flow meters, and dual oxygen analyzers complete a clean, laboratory-to-pilot-scale platform.
Applications
1. Annealing of small metal parts and electronic materials — stress relief and microstructure tuning under a controlled inert atmosphere
2. Fast cooling after anneal — slide the furnace open to rapidly cool parts after the soak
3. Controlled-atmosphere sintering of powders, ceramics, and battery materials under inert gas
4. Metal and alloy heat treatment under inert atmosphere to prevent oxidation
5. Oxygen-sensitive material processing — dual 0.6–6 ppm oxygen analyzers monitor residual oxygen at both ends
6. R&D and materials research — universities, institutes, and battery / new-material labs
7. Pilot-scale process development where repeatable atmosphere and cooling rates matter
