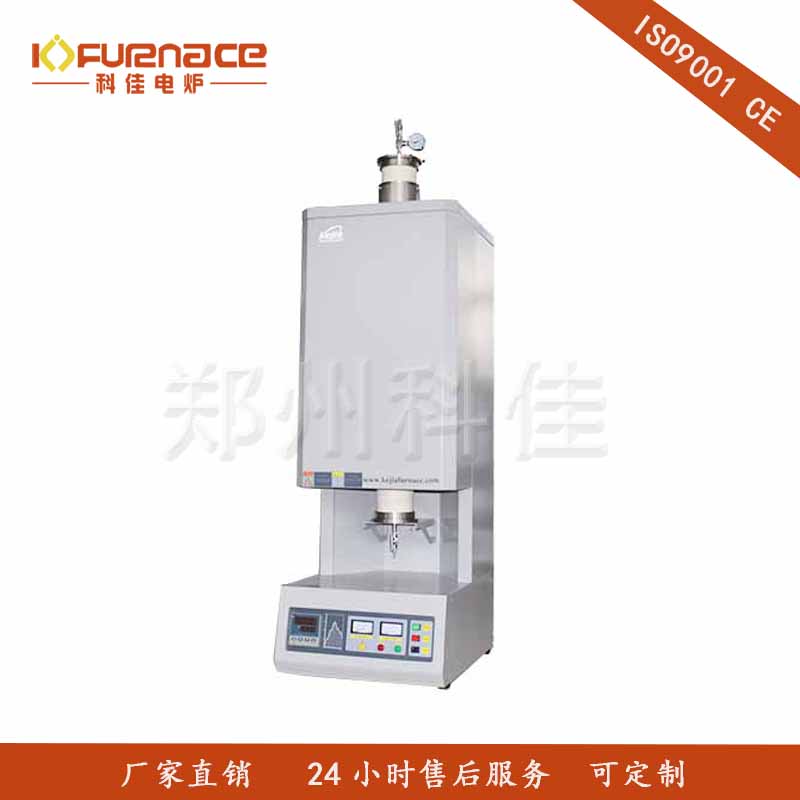

1400℃ Vertical Tube Furnace
  • 1400℃ Vertical Tube Furnace
  • 1400℃ Vertical Tube Furnace
  • 1400℃ Vertical Tube Furnace
  • 1400℃ Vertical Tube Furnace
  • 1400℃ Vertical Tube Furnace

    Model:KJ-T1400-V

    Description:

    In KJ-T1400-V Vertical Tube Furnace, the tube is placed on a shelf vertically. The split structure make installation and uninstallation quite easy. It can heat samples very fast in vacuum and atmosphere condition.

    Specific Introduction:
        This KJ-T1400-V Vertical Tube Furnace is mainly used for nanotube reseach, coating on silicon crystal plate, electrode tests, growth of oxide crystal and so on.

    Parameters:

    Model KJ-T1400-VC KJ-T1400-VD
    Top Temperature 1400℃
    Working Temperature 1300℃
    Tube Diameter
    (Alumina ceramics)
    Φ60 Φ80
    Heating zone length 300/440mm
    Insulation layers High-Purity Alumina Ceramic fiber
    Power Supply 110/220V/380 50/60HZ
    Heating Rate 0-20℃/min
    Control Accuracy ±1℃
    Temperature Sensor S-type Thermocouple
    Heating Element Silicon Carbide (SiC) heating rods
    Sealing Flanges
    Structure Split, Vertical
    Accessories Gloves, Crucibles, Tongs, Crucible hook.
    Optional Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.
    Customization is available.
