1200℃ Vertical Tube Furnace
  • 1200℃ Vertical Tube Furnace
  • 1200℃ Vertical Tube Furnace
  • 1200℃ Vertical Tube Furnace
  • 1200℃ Vertical Tube Furnace
  • 1200℃ Vertical Tube Furnace

    Model:KJ-T1200-V

    Description:

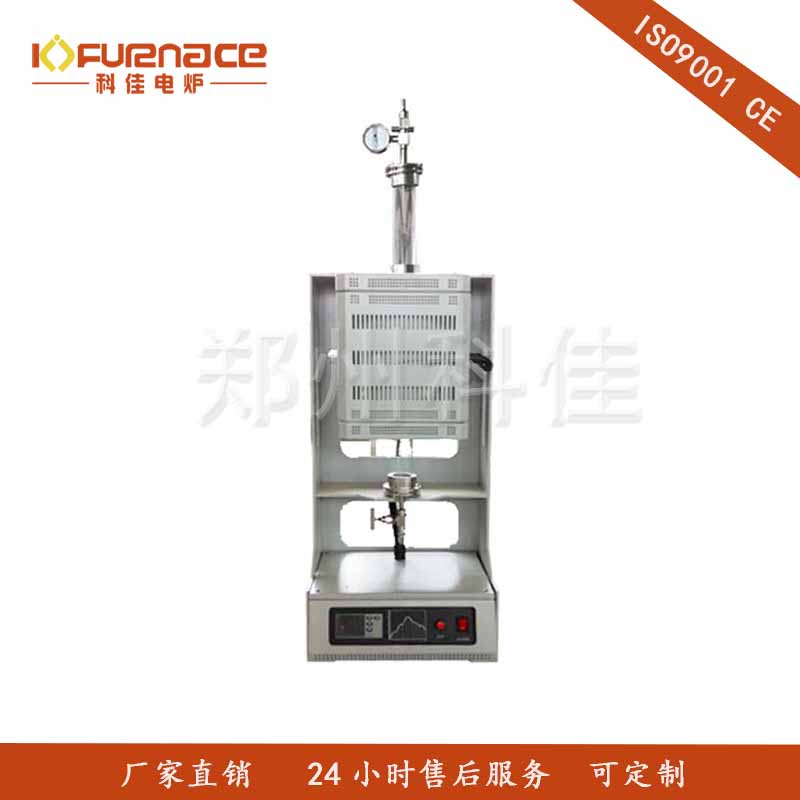

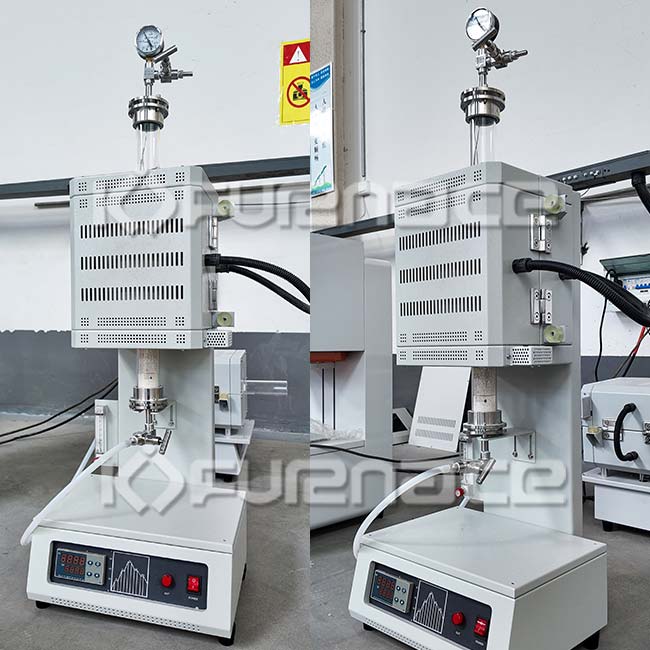

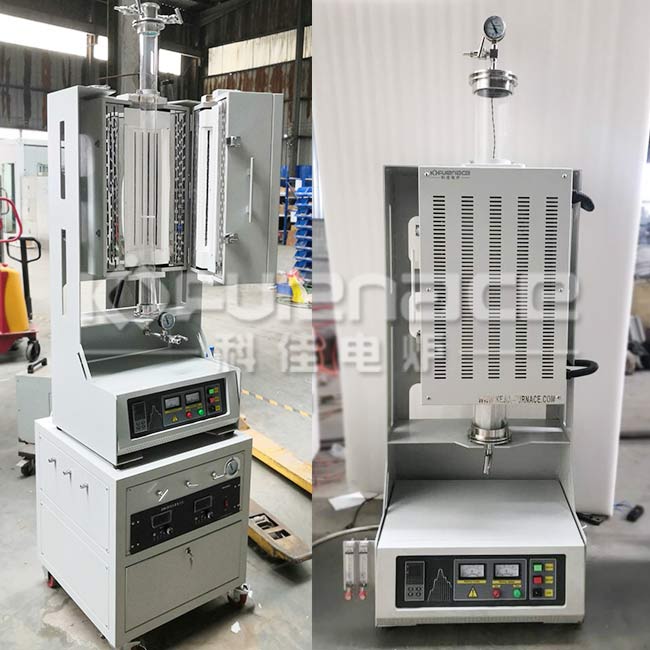

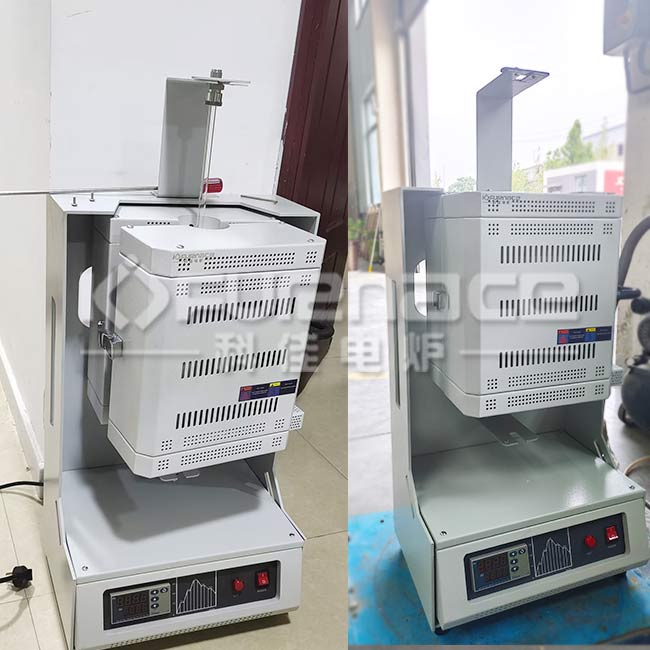

    In KJ-T1200-V Vertical Tube Furnace, the tube is placed on a shelf vertically. The split structure make installation and uninstallation quite easy. It can heat samples very fast in vacuum and atmosphere condition.

    Specific Introduction:
        This KJ-T1200-V Vertical Tube Furnace is mainly used for nanotube reseach, coating on silicon crystal plate, electrode tests, growth of oxide crystal and so on.

    Parameters:

    Model

    KJ-T1200-VC

    KJ-T1200-VD

    KJ-T1200-VE

    KJ-T1200-VF

    Top Temperature

    1200℃

    Working Temperature

    1100℃

    Quartz Tube Diameter

    Φ60/80

    Φ100/120

    Φ150

    Φ230

    Heating zone length

    300/440mm

    Insulation layers

    High-Purity Alumina Ceramic fiber

    Power Supply

    110/220V 50/60HZ

    Heating Rate

    0-20℃/min

    Control Accuracy

    ±1℃

    Temperature Sensor

    K-type Thermocouple

    Heating Element

    0Cr27Al7Mo2 Resistance Wire

    Sealing

    Flanges

    Structure

    Split, Vertical

    Accessories

    Gloves, Crucibles, Tongs, Crucible hook.

    Optional

    Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.

    Customization is available.
