Range of Application:
This furnace can do fast annealing of samples in vacuum or atmosphere condition, it’s widely used for coating, fast annealing, silicification, crystallization, densifying of different materials.
Technical parameters:
We can customize different functions, categories, temperatures, sizes, etc. according to customer needs. Welcome to inquire.
Touch screen type:

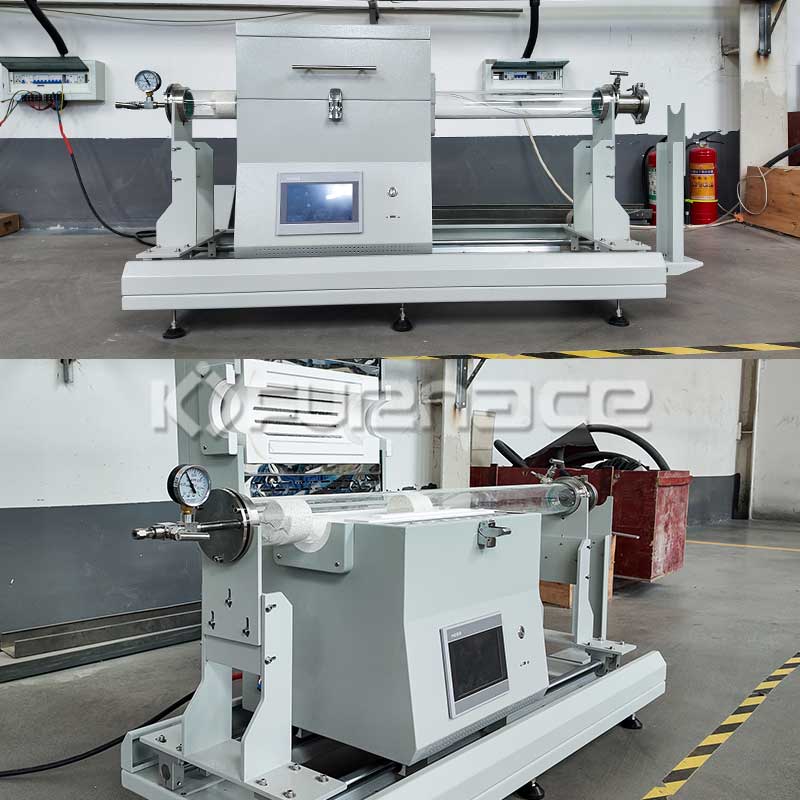

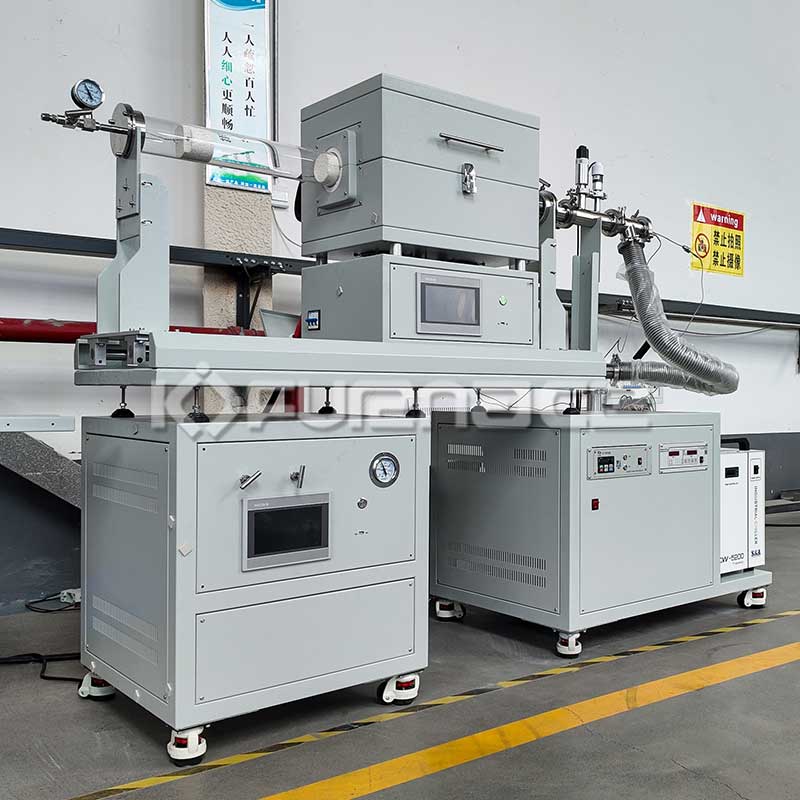

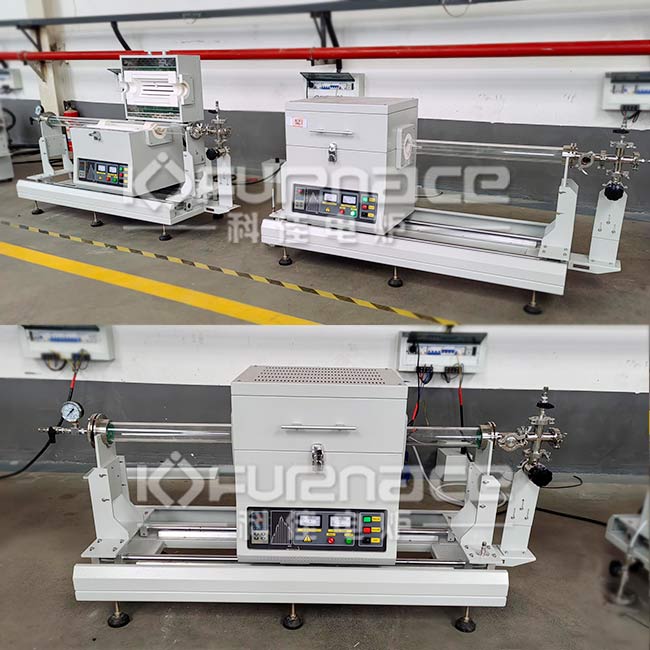

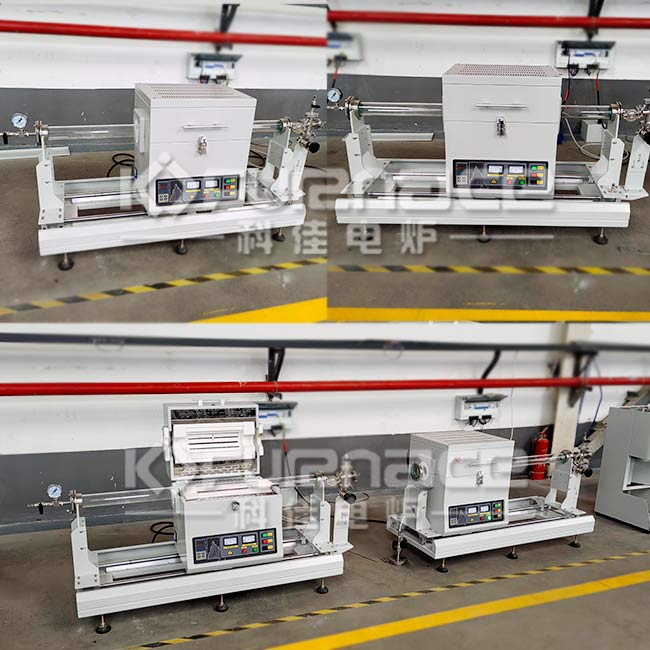

Sliding cvd furnace system
This furnace can do fast annealing of samples in vacuum or atmosphere condition, it’s widely used for coating, fast annealing, silicification, crystallization, densifying of different materials.
Technical parameters:
|
Model |
KJ-T1200-HC |
KJ-T1200-HD |
KJ-T1200-HE |
KJ-T1200-HF |
|
Top Temperature |
1200℃ |
|||
|
Working Temperature |
1100℃ |
|||
|
Quartz Tube Diameter |
Φ60/φ80 |
Φ100/φ120 |
Φ150 |
Φ230 |
|
Heating zone length |
220/300mm |
|||
|
Heating zone |
Two/three/four/five |
|||
|
Insulation layers |
High-Purity Alumina Ceramic fiber |
|||
|
Heating Rate |
0-20℃/min |
|||
|
Control Accuracy |
±1℃ |
|||
|
Temperature Sensor |
N-type Thermocouple |
|||
|
Heating Element |
0Cr27Al7Mo2 Resistant Wire |
|||
|
Sealing |
Flanges |
|||
|
Structure |
Split |
|||
|
Sliding |
Left and right |
|||
|
Optional |
Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters. |
|||
|
Customization is available. |
||||
Touch screen type:
Sliding cvd furnace system
