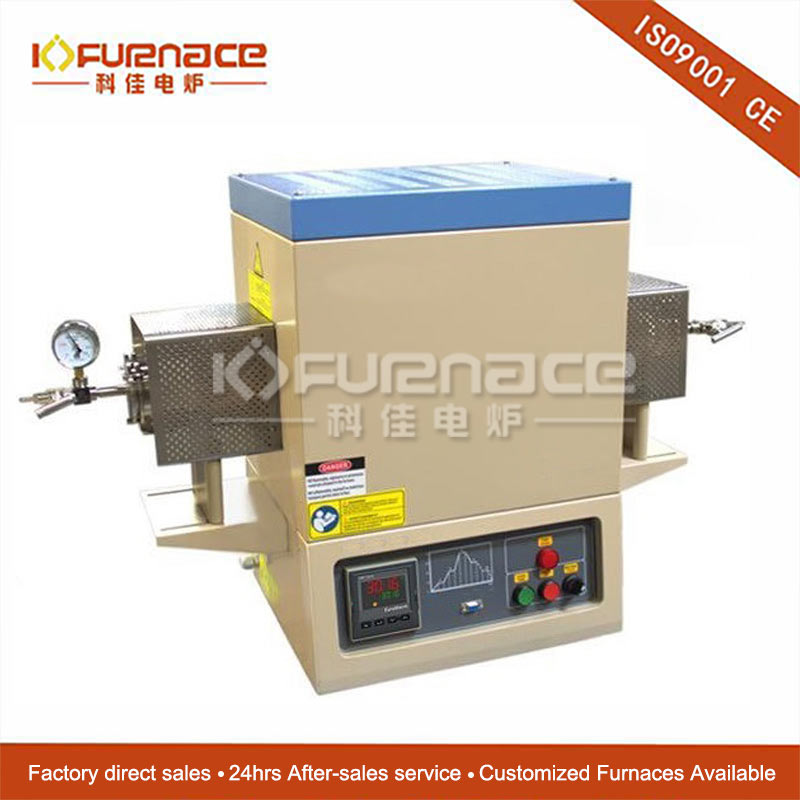

1700℃ Hinged flange tube furnace
  • 1700℃ Hinged flange tube furnace
  • 1700℃ Hinged flange tube furnace
  • 1700℃ Hinged flange tube furnace
  • 1700℃ Hinged flange tube furnace
  • 1700℃ Hinged flange tube furnace

    Model:KJ-1700X-HNG

    Description:

    The KJ-1700X series is a high-temperature tube furnace that has passed CE certification, and the furnace tube is a high-purity corundum tube. This tube furnace adopts a folding flange, which makes setting out and sampling more convenient.

    Specific Introduction:
        The KJ-1700X series is a high-temperature tube furnace that has passed CE certification, and the furnace tube is a high-purity corundum tube. This tube furnace adopts a folding flange, which makes setting out and sampling more convenient. It adopts 30-step temperature rising and falling program to control the temperature, and its temperature control accuracy is +/-1 ℃. The maximum temperature can reach 1700℃, which is especially suitable for high temperature sintering of various materials.
    Parameters:
    Furnace structure

    • Use high-purity alumina as the furnace material to minimize heat loss
    Maximum power
    • 5KW
    Power supply
    • Single phase 220V AC, 50/60 Hz (40A air switch required)
    Working temperature
    • 1650ºC (<2 hour) (Updated: 19.12.10 - JS2)
    Continuously working
    • 800~1600ºC
    Maximum heating rate
    • 5ºC / min
    Length of heating zone
    • 290mm
    Constant temperature zone
    • 150 mm (6")
    Heating element
    • Use 8 1800℃ silicon molybdenum rods for heating
    Temperature Control System
    • Use PID method to control temperature through SCR
    • 30 steps of heating and cooling program can be set
    • Temperature control instrument operation video
    • The control system has overheating and burnout protection
    • Temperature control accuracy: +/- 1 ºC
    • An RS485 communication interface is installed on the instrument panel. As long as you purchase a PC control module, you can set the temperature rise and fall program and export the temperature curve through the computer.
    Furnace tube
    • Furnace tube material: corundum tube with purity> 99.9%
    • (Standard configuration) OD: 60mm x ID: 50mm x 1000 mm l
    • The instrument is equipped with 4 alumina pipe plugs (before the instrument is used, pipe plugs must be placed at both ends of the furnace tube)
    Vacuum sealed
    • This tube furnace adopts stainless steel folding flange for sealing, which is more convenient to use
    • Stainless steel needle valve and mechanical pressure gauge are installed on the flange
    • Vacuum degree: 10-2 Torr (using mechanical pump)
    •        10-5Torr (using molecular pump) can choose various vacuum pumps from our company
    • Optional: Digital vacuum indicator with anti-corrosion type imported by our company
    Instrument size
    590L x 490W ×760H, mm
    Net weight
    • 150 kg
    Warranty
    • One-year warranty (excluding consumable parts such as furnace tubes, sealing rings and heating elements)
    Quality Certification
    • CE certification
    • All electrical components (>24V) have passed UL / MET / CSA certification
    • If the customer pays the certification fee, the company guarantees that a single device passes the German TUV certification or CAS certification
