Regular 1700℃ High-temperature Tube Furnace
  • Regular 1700℃ High-temperature Tube Furnace
  • Regular 1700℃ High-temperature Tube Furnace
  • Regular 1700℃ High-temperature Tube Furnace
  • Regular 1700℃ High-temperature Tube Furnace
  • Regular 1700℃ High-temperature Tube Furnace

    Model:KJ-T1700 Series

    Description:

    This KJ-T1700 Series tube furnace is mainly used for sintering, coating, Nanotube study, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises.

    Product Introduction:
    Tube furnaces are widely used for heat treatment experiments in universities, research institutes, industrial and mining enterprises, and other facilities. They utilize an intelligent programmable temperature control system, phase-shift triggering, thyristor control, and a 30-segment programmable controller for precise temperature control. Furnace tubes are available in a variety of materials, including heat-resistant alloys, quartz, and alumina, to accommodate diverse experimental and production needs. Tube furnaces offer safety, reliability, ease of operation, high temperature control accuracy, excellent furnace temperature uniformity, customizable temperature zones, and optional atmosphere and vacuum configurations.

    Applications:
    Experimental tube furnaces are commonly used for experimental heat treatment, with the following specific applications:

    Material Synthesis and Sintering: Used for the research and development of new materials, including the synthesis and sintering of nanomaterials, superconducting materials, ceramics, and composite materials.

    Metal Heat Treatment: Tube furnaces precisely control temperature to perform heat treatments such as annealing and quenching on metals or alloys, altering their microstructure and properties.

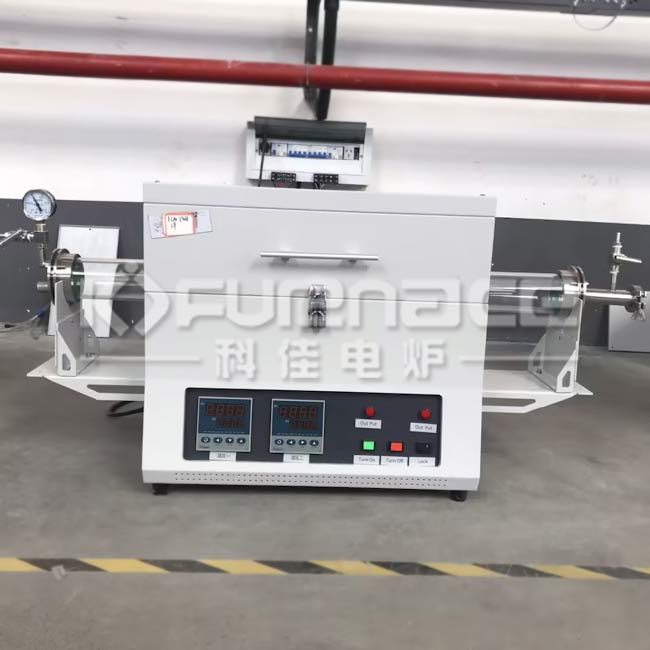

    1700°C tube furnace
    Touch screen version 1700°C tube furnace

    1700°C tube furnace
    Temperature control version 1700°C tube furnace

    Technical Parameters
    Model KJ-TG1600-S60 KJ-TG1400-S80 KJ-TG1400-S100
    Max. Temperature 1600℃
    Working Temperature 1500℃
    Tube material Alumina tube
    Tube Diameter/mm
    (Customization)
    Φ60 Φ80 Φ100
    Heating zone length
    (Customization)
    300/440mm
    Heating number Single or multiple temperature zones, customizable upon request.
    Other specifications can be customized according to customer needs.
    Furnace chamber material High-Purity Alumina Ceramic fiber
    Furnace shell structure Carbon steel shell, double-layer shell with air cooling system
    Heating Rate suggest 0-10℃/min
    Temperature control accuracy ±1℃
    Temperature control method PID control and auto-tuning, intelligent 30-step programmable
    Furnace structure Horizontal type
    Temperature protection Over-temperature and burnout protection
    Working environment Atmospheric pressure/vacuum/atmosphere
    Furnace door opening method Sealed or open (optional)
    Sealing Stainless steel vacuum flange with valve and mechanical pressure
    Optional Flow meter, vacuum system, door-opening power-off, touch screen, remote control, computer display
    Customizable multi-temperature zone tubular furnace. Click for details.

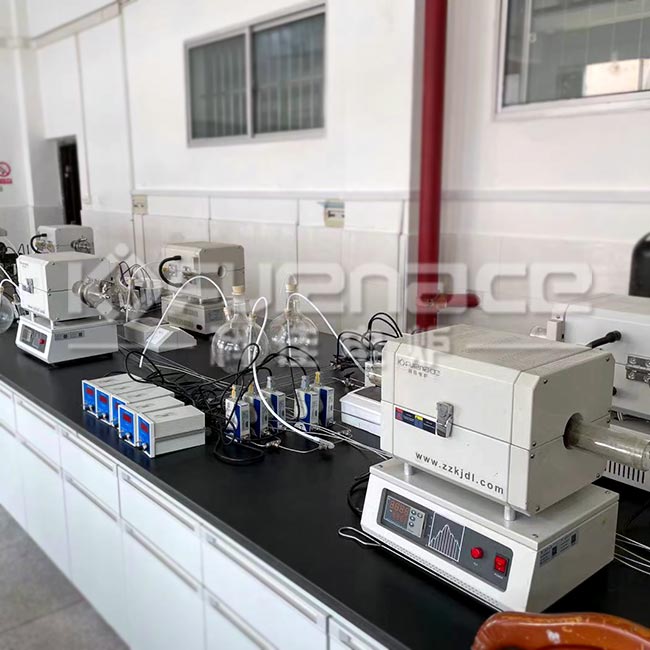

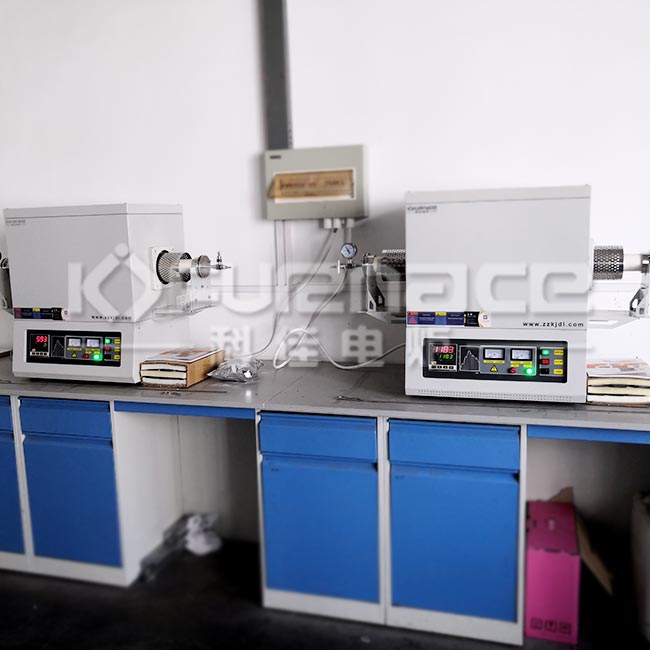

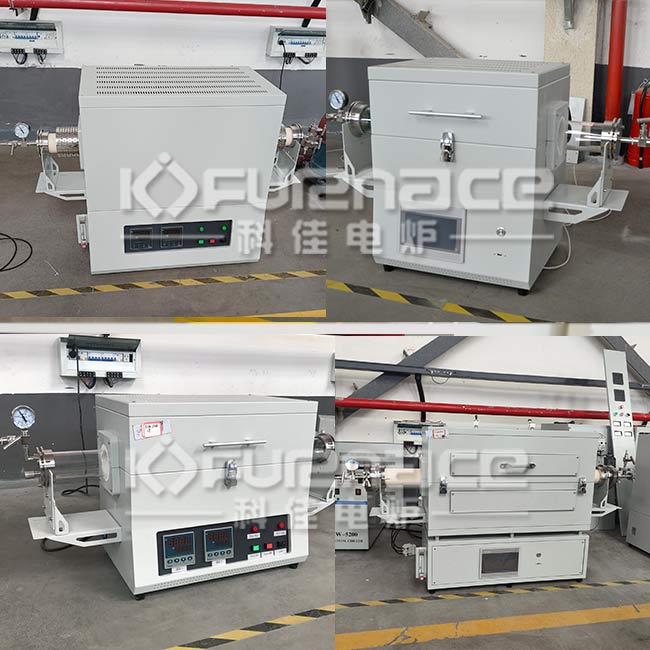

    The following are some of the tube furnaces we have made:
    mini tube furnace

    Mini tube furnace

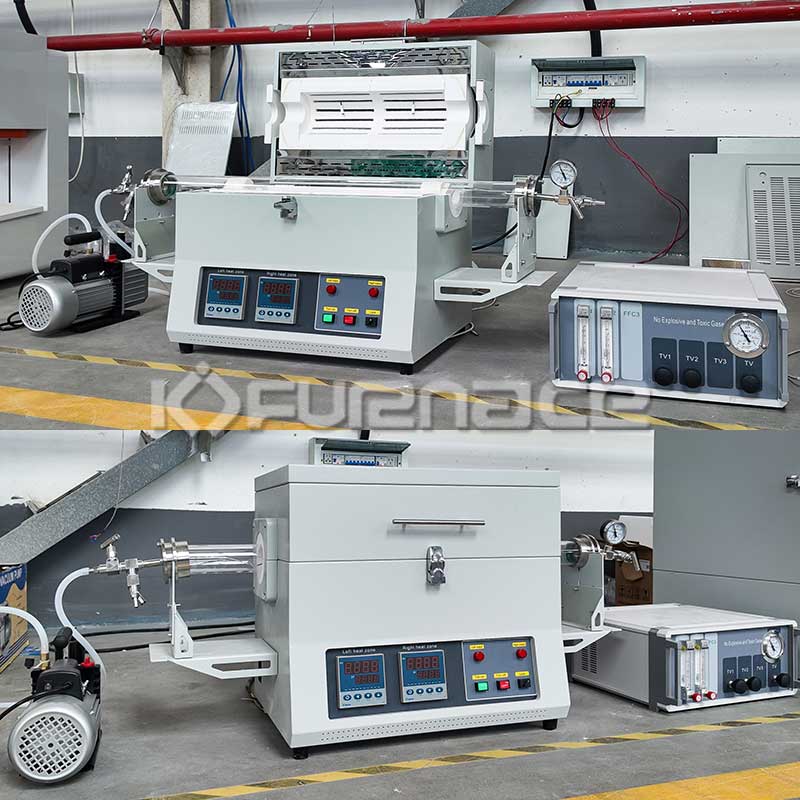

    Tube furnace + gas mixing system

    Tube furnace + gas mixing system


    Mullite Tube Furnace-1700°C

    2 zone tube furnace


    We can customize different temperatures, furnace tube sizes and materials, as well as configurations and other functions according to customer needs. Welcome to consult.
    1700°C tube furnace series

    1700°C rotary tube furnace
