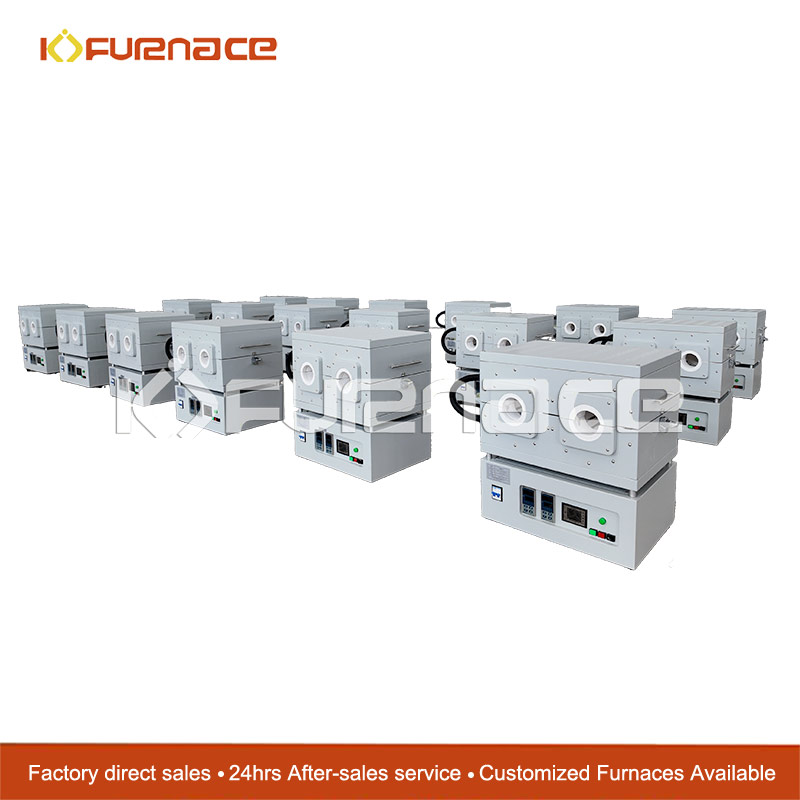

  • Double tube tube furnace

    Model:KJ-T1200-S80

    Continuous Temp:1200℃

    Chamber/Tube size:

    Description:

    Technical parameter:
    Model KJ-T1200-S80
    Furnace structure Double-layer shell structure, equipped with a cold air system to automatically cool down the furnace shell temperature does not exceed 50 ℃
    chamber size High-quality high-purity alumina polycrystalline fiber curing furnace formed by Japanese technology vacuum adsorption has good thermal insulation performance, high reflectivity and balanced temperature field.
    Max.temperature 1200℃
    Continuous working temperature 1100℃
    heating rate Recommended ≤10℃/min, the fastest heating rate is 20℃/min
    tube size High Purity Quartz Tube
    Heating zone length
    (double hearth)
    200mm (heating area) + 150mm (heat preservation area)
    flange Stainless steel sealing flange, easy to disassemble, one end is a common flange, one end is a hinge flange
    Temperature Control System The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions, and can compile 30-stage heating and cooling programs;
    Heating element Molybdenum alloy resistance wire
    Temperature measuring element K-type thermocouple, independent temperature control of two temperature zones
    Working power AC220V,50Hz
    rated power 2.2KW
