Model：KJ-BPLE

Biomass pyrolysis system

Description：

KJ-BPLE mainly used for laboratory biomass pyrolysis experiments. The whole set of equipment includes pyrolysis furnace, tar gas condensation collection tank, synthesis gas collection tank, There is a gas outlet in the gas collection tank, which is conven

Email：web@kejiafurnace.com

Leave A Message

Online Chat

IntroductionFeaturesTechnical ParametersInquiryCustomer Case

Introduction:
KJ-BPLE mainly used for laboratory biomass pyrolysis experiments. The whole set of equipment includes pyrolysis furnace, tar gas condensation collection tank, synthesis gas collection tank, There is a gas outlet in the gas collection tank, which is convenient for connecting to a gas analyzer for gas composition analysis experiments of synthesis gas.

From biomass to green energy, KJ-BPLE helps you unlock the code of pyrolysis!"

features

Used in laboratory biomass cracking process to efficiently realize continuous heat treatment.
Using a high-efficiency condensation collection and separation device for biomass pyrolysis gas, a variety of high-quality materials can be obtained.
Configure gas collection and exhaust gas treatment system.
It has strong experimental functions, high experimental efficiency, compact structure, high safety performance and energy saving.

Technical Parameters

Model	KJ-BPLE
Display	LCD touch screen
Working Temperature	≤1100℃
Heating Rate	0~20℃/min ,≤10℃/min recommended
Heating Zone	Big belly quartz tube OD100 mm in the middle and two ends are OD60mm (Furnace tube size and temperature zone can be customized according to customer needs)
Tube Material	High purity quartz Tube
Heating Element	Resistance Wire With Mo
Tube Rotating Speed	0-10 RPM
Furnace Tilt Angle	0~30 degree
Thermocouple	N type
Temperature Control	PID automatic control via SCR power control
Heating curves	16 temperature curves can be set,each temperature curve can be automatically set with 30 steps programmable.
Chamber material	Alumina Fiber
Rotatable intake joint	Easy access to carrier gas
Metal bellows connecting pyrolysis furnace and condensate tank	Wrapped by heating tape to prevent syngas from cooling before entering the condensate tank.
Tar gas collection	Tar gas condensation collection tank with Water chiller to cool the gas
Synthesis gas collection tank	Collect synthesis gas for sampling analysis
Warranty	One year limited warranty (Consumable parts such as quartz tube are not covered by the warranty)

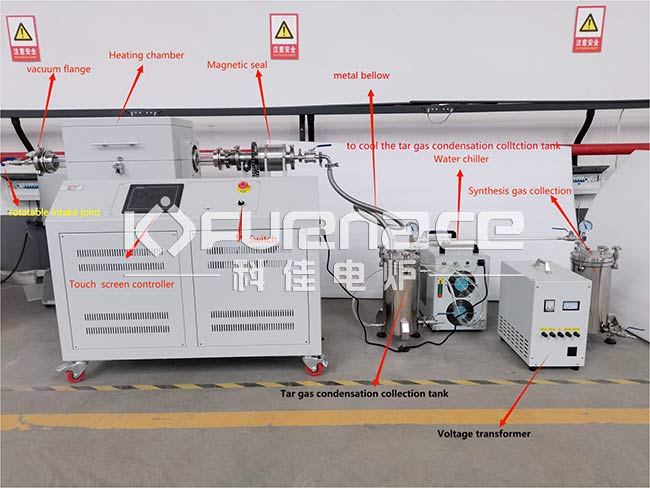

We can also customize different temperature zones and material collection and transportation configurations according to customer needs. The equipment in the following photo is furnace body + condenser tank + gas collection tank + water sealing tank. You can take a look. Welcome to consult.

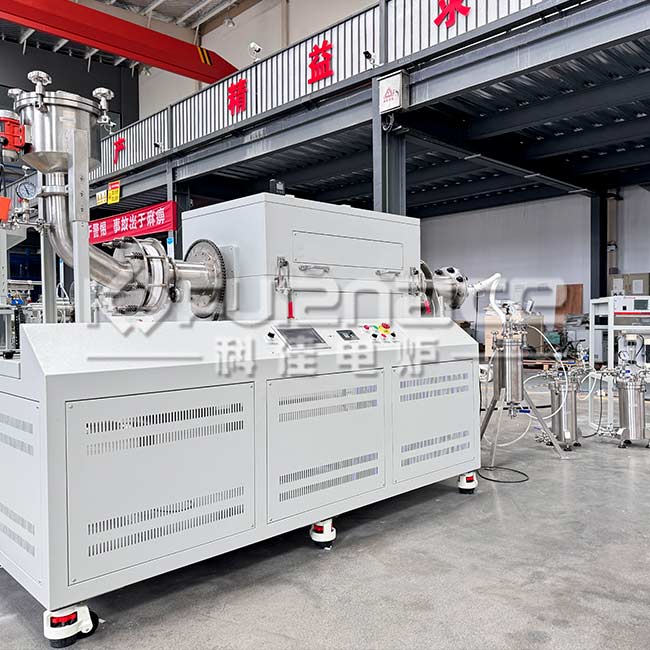

The following figure shows a customized system for customers that adds a biochar collection tank、a buffer tank and a gas analyzer to the carbon and oil collection system.
