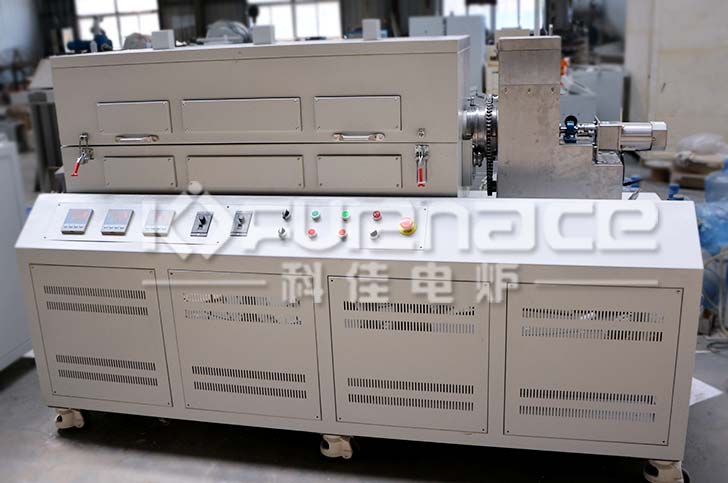

High temperature Rotary tube furnace
  • High temperature Rotary tube furnace
  • High temperature Rotary tube furnace
  • High temperature Rotary tube furnace
  • High temperature Rotary tube furnace
  • High temperature Rotary tube furnace

    Model:KJ-R1300

    Description:

    Rotary tube furnaces consist of heating coils/ rods surrounding a cylindrical cavity where temperature is controlled by a thermocouple. A rotary tube furnace is available as single or multi-zone, split design.

    Brief introduction
    Rotary tube furnaces consist of heating coils/ rods surrounding a cylindrical cavity where temperature is controlled by a thermocouple. A rotary tube furnace is available as single or multi-zone, split design. They also come in either continuous or batch rotary tube furnaces. Many tube furnaces are equipped with two or more heating zones and can produce temperatures up to 1300°C. The general design will vary based on process temperature, throughput, atmosphere requirements, characteristics of material, cooling requirements, etc.



    features
    • The tube is rotary design for uniform heating.

    • Three independent heating zone with independent temperature controller to guarantee good uniform heating.

    • Adjustable slanted control for sintering material in / out.

    • Continuous spiral feeding.

    • 30 steps of programmable temperature, PID automatic temperature controller.

    • Combined aural and visual alarm for accident of over temperature & thermocouple broken, and the power supply of the heating part will cut off automatically.

    Technical Parameters



    Model KJ-R1300
    Display LED
    Max Working Temp. 1300℃
    Heating Rate Suggested heating rate: below 1000°C≤10°C/min, above 1000°C≤5°C/mi
    Tube Material Mullite
     Tube Diameter OD130mm
    Heated Zone Length 1000mm
    Heated Zone Num 3
    Tube length 1700mm
    Max Rotary Speed 10RPM
    Max Angle of Inclination 10°
    Heating Element SiC rod
    Thermal Couple S type
    Input Hopper Capacity As required
    Discharge Hopper Capacity As required
    Feeding mode Spiral or vibrated feeding
    Chamber Material Ceramic fiber
    Working Voltage As required
    Temperature Control PID automatic control via SCR power control
    Warranty One year warranty(not include heating element and other wear parts)


    Rotary tube furnaces


    We can customize different pipe diameters, temperature zones, heating sizes, etc. according to customer needs. Everyone is welcome to come for consultation.
