Introduction:
This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell. The room is equipped with an air cooling system that can heat up quickly; the furnace body can be tilted 0-10° (Button control), and the furnace tube can rotate 360 degrees.
Specification:

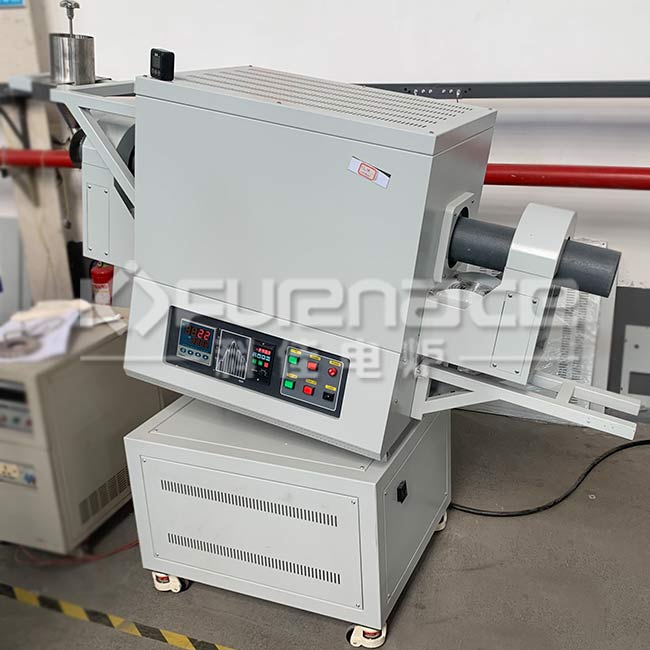

Furnace photos
Openable type corundum heating tube-tube furnace
Sealed continuous feeding and discharging tube furnace
This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell. The room is equipped with an air cooling system that can heat up quickly; the furnace body can be tilted 0-10° (Button control), and the furnace tube can rotate 360 degrees.
Specification:
|
Structure
|
Carbon steel outside shell Two layers of Alumina fiber boards · 1400deg.C alumina fiber · 1600deg.C alumina fiber Cooling fans |
|
Tube |
Alumina ceramic tube OD.100mm,ID.92mm×Len.1260mm Quartz tube OD.100mm,ID.92mm×Len.1260mm Silicon carbide tube OD.100mm,ID.80mm×Len.1260mm |
|
Sealing |
SS 316 Flanges with rubber (With analog vacuum gauge) |
|
Working Temperature |
≦1300℃ ( Alumina ceramic tube) ≦1300℃ ( Silicon Carbide Tube) ≦1100℃ ( Quartz tube) |
|
Temperature sensor |
S-type Thermocouple |
|
Temperature Control |
PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant |
| Heating Rate | 0~15℃/min (suggestion: ≤10℃/min) |
| Temperature control Accuracy | +/-1℃ |
| Heating Element | SiC heating rods |
| Rotary Speed | 0-30RPM variable (speed regulator) |
| Tilting Angle | 0-10°variable (Button control) |
| Working Voltage | AC 220V, Single Phase, 50 Hz |
| Max. Power | 5.0 kW |
| Warranty Period | 1 year (Consumable parts such as tube,heating rods and thermocouple are not covered) |

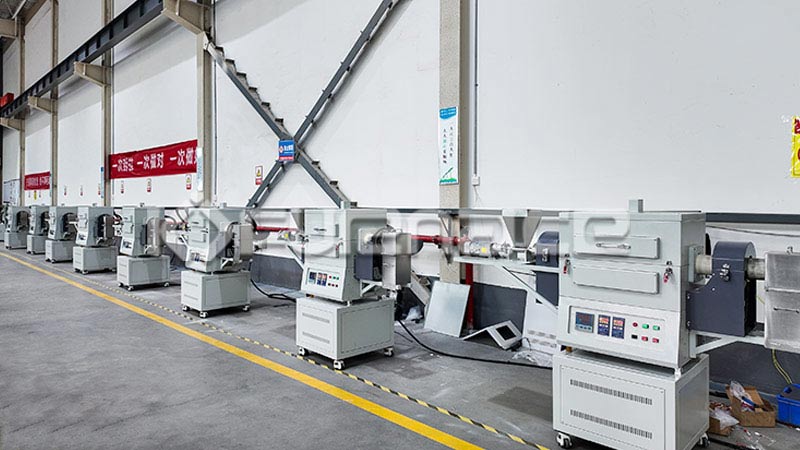

Furnace photos
Kejia Furnace Company can customize different pipe diameters, temperatures and functions according to customer needs. Welcome to consult.
Below is a material bin of different sizes, openable type/sealed type, and a corundum heating tube that we customized for customers.
Below is a material bin of different sizes, openable type/sealed type, and a corundum heating tube that we customized for customers.
Openable type corundum heating tube-tube furnace
Sealed continuous feeding and discharging tube furnace
