Customized 3 zone rotary tube furnace
  • Customized 3 zone rotary tube furnace
  • Customized 3 zone rotary tube furnace
  • Customized 3 zone rotary tube furnace
  • Customized 3 zone rotary tube furnace
  • Customized 3 zone rotary tube furnace

    Model:KJ-TX1100-S150LK3W

    Description:

    The customized rotary tube furnace is composed of heating system, vacuum system, control system and gas supply system.

    The customized rotary tube furnace is composed of heating system, vacuum system, control system and gas supply system.

    The customized rotary tube furnace adopts three temperature zones to independently control heating, each zone has a multi-stage program temperature control system, phase-shift trigger, and thyristor control. The furnace body is a double-shell air-cooled structure, and the upper opening is convenient for cooling and heat dissipation and replacing the furnace tube. It has a tilting function (to facilitate the entry and exit of materials).

    The furnace tube is made of high-purity quartz tube, which has good sealing performance and corrosion resistance, and is equipped with a mechanical pressure gauge. With forward and reverse function and adjustable speed. A lifting piece can be installed inside to make the material heated evenly.

    The furnace is made of alumina polycrystalline fiber material, heated by high-quality resistance wire, the temperature field is balanced in a circular arrangement, and an air cooling system is equipped between the double-layer furnace shells;

    Technical Parameters:
    Product name Customized rotary tube furnace
    Model KJ-TX1100-S150LK3W
    shell structure Double-layer shell. Equipped with air cooling system
    Furnace tube size Outer diameter 80-150-80*Length about 1500mm (subject to actual needs)
    Furnace tube High-purity custom-made quartz tube with lifting plate inside
    sealed structure Customized sealing structure can realize the sealing when the furnace tube rotates
    air intake 1 way air inlet
    air outlet 1 exhaust port
    Number of temperature zones 3 temperature zone
    Temperature zone length The total length is 600mm
    Working temperature The temperature is not higher than 1100°C under continuous operation; limit temperature: 1200°C
    Temperature control method Using intelligent 30-segment programmable control
    Super high temperature alarm With super high temperature alarm
    Marriage Reminder There is a reminder
    Furnace chamber material High Purity Alumina Refractory Fiber
    Heating rate 0--10℃/min

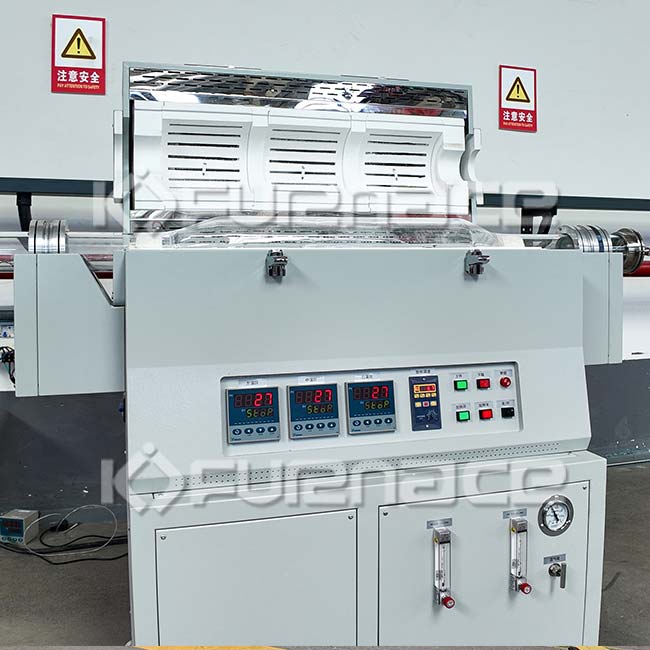

    Furnace door structure upper opening
    Heating element High quality resistance wire
    Operating Voltage 380V     50HZ
    Inclined direction of furnace body The left side of the furnace can be tilted
    tiltable angle 0-15 degrees (adjustable)
    Furnace tube speed 0-5 rev/min (adjustable)
    Mobile box The lower box is a movable box, which can also be used as a material rack, and the furnace is easy to move as a whole.
    Airway assembly 2-way float flowmeter, the range is tentatively set at 0.15-1.5L/min, and the gas flow can be controlled through the valve.
    delivery 2L pumping speed vacuum pump and 1 set of silicone tube, 1 set of digital display angle meter, 1 set of sealing flange, 1 set of customized quartz tube (one for one)
    warranty 1 year after acceptance or 15 months after delivery, whichever comes first (except for wearing parts and man-made damage)
    Precautions for use 1. The air pressure in the furnace tube should not be higher than 0.02MPa
    2. Due to the high internal pressure of the gas cylinder, when the gas is fed into the furnace tube, a pressure reducing valve must be installed on the gas cylinder, which will be safer during use
    3. When the furnace body is at high temperature, the furnace tube cannot be in a vacuum state. The air pressure in the furnace tube must be equal to the atmospheric pressure and kept at normal pressure.
    4. It is recommended to pass inert protective gas. If dangerous, corrosive materials or gases are used, please install relevant safety devices
    Remark Other items can be added according to customer needs


    Inquiry

    Please leave a message here. We will reply you in 24 hours.

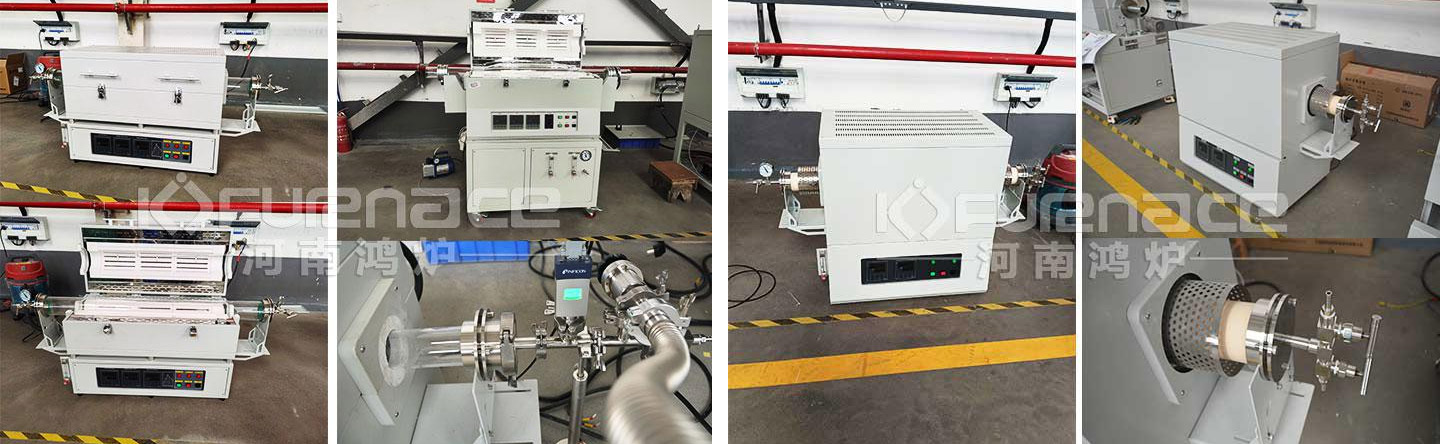

    Relate Customer Case
