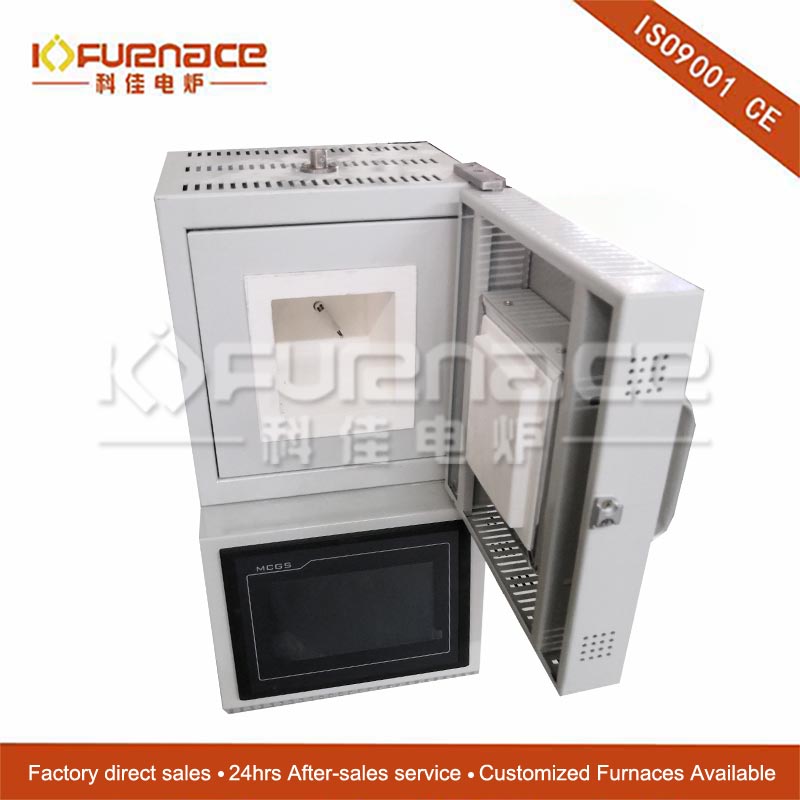

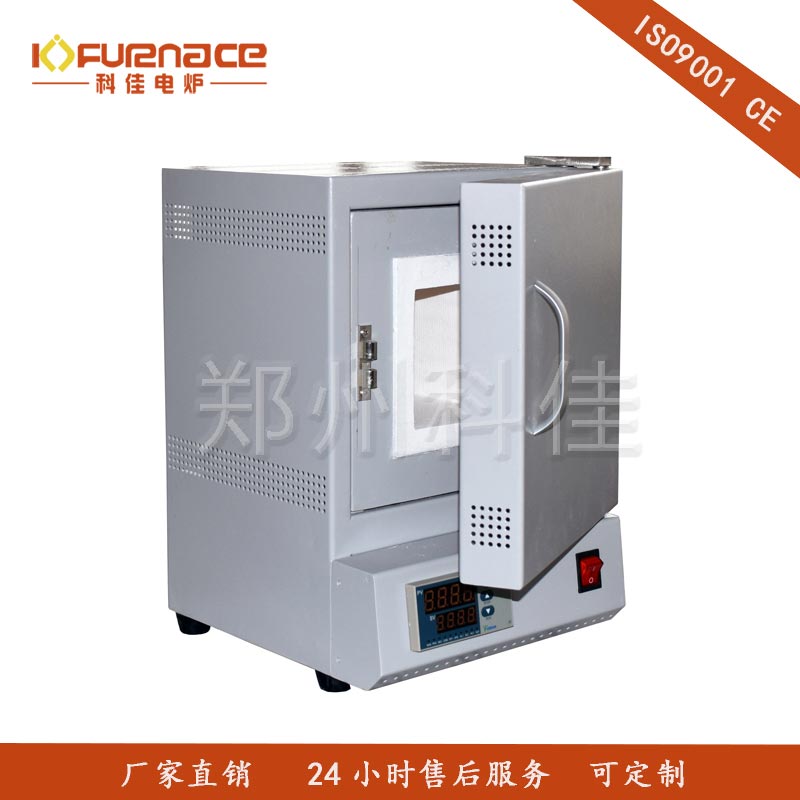

Brief Introduction:
The product is for Debinding, Presintering, Sintering etc.
Main Features:
1. Great temperature uniformity.
2. PID automatic control via SCR power control
3.Over temperature protection and alarm allows for operation without attendant(s)
Technical Parameter:
The product is for Debinding, Presintering, Sintering etc.
Main Features:
1. Great temperature uniformity.
2. PID automatic control via SCR power control
3.Over temperature protection and alarm allows for operation without attendant(s)
Technical Parameter:
| Chamber Structure | Side Door |
| Display | LED |
| Working temp. | ≤1000°C |
| Heating Rate | Suggestion 0~10°C/min |
| Temperature Accuracy | ±1°C |
| Inside Chamber Size | 4x4x4 inch (100×100×100mm) |
| Heating Element | Resistance wire with Mo |
| Thermocouple | K Type |
| Max. Power | 1.0KW |
| Working Voltage | AC 208V-240V single phase, 50 Hz |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Alumina Fiber |
| Outside Dimension | 260x270x360(mm) |
| Warranty | One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
| Standard Accessories | Protective glove x 1 pair Crucible tong x 1 pair |
