Description：

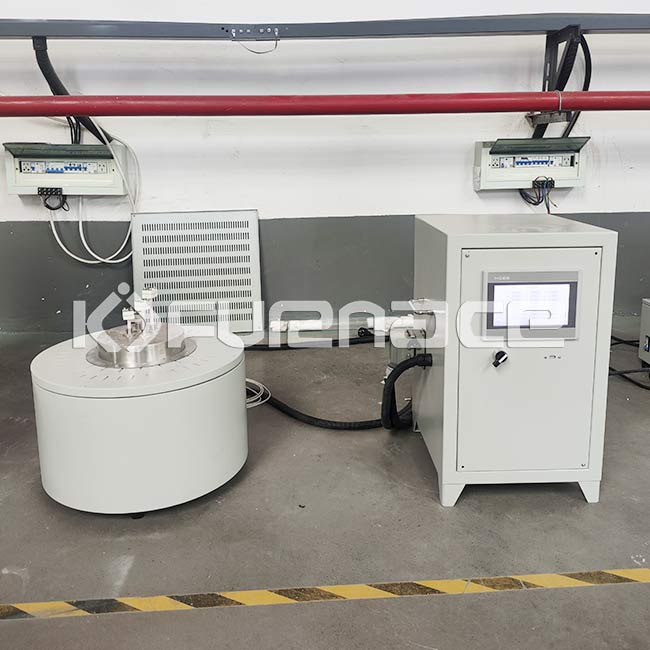

Chamber heating muffle furnace used in universities, research institutes, industrial and mining enterprises for high temperature sintering , materials sintering,
Features of electric crucible furnace:
1. A low temperature around the furnace, smoke less, a good operating environment;2. Simple operation process;
3.Uniform heating temperature, small burning injury, uniform metal components, quality casting;
4.Warming fast, easy temperature control, high production efficiency.
5. Real time temperature chart display can dynamic monitor the heating process.
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
Technical parameters of electric crucible furnace:
| Model | KJ-1200C Crucible furnace |
| Limiting temperature | 1200°C |
| Working temperature | ≤1150°C |
| Temperature accuracy | +/- 1 °C |
| Furnace structure | Double layer steel structure with air cooling |
| Chamber material | High purity fiber alumina insulation |
| Chamber size | ø100×150mm |
| Temperature controller | PID automatic control and auto-tune function; 30 programmable segments for precise process; Built in protection for over-heated and broken Thermal couple. |
| Heating element | 1300oC grade Fe-Cr-Al Alloy doped by Mo |
| Rated power | 2.2 KW |
| Working voltage | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
Crucible furnace can be customized according to customers’requirements.
