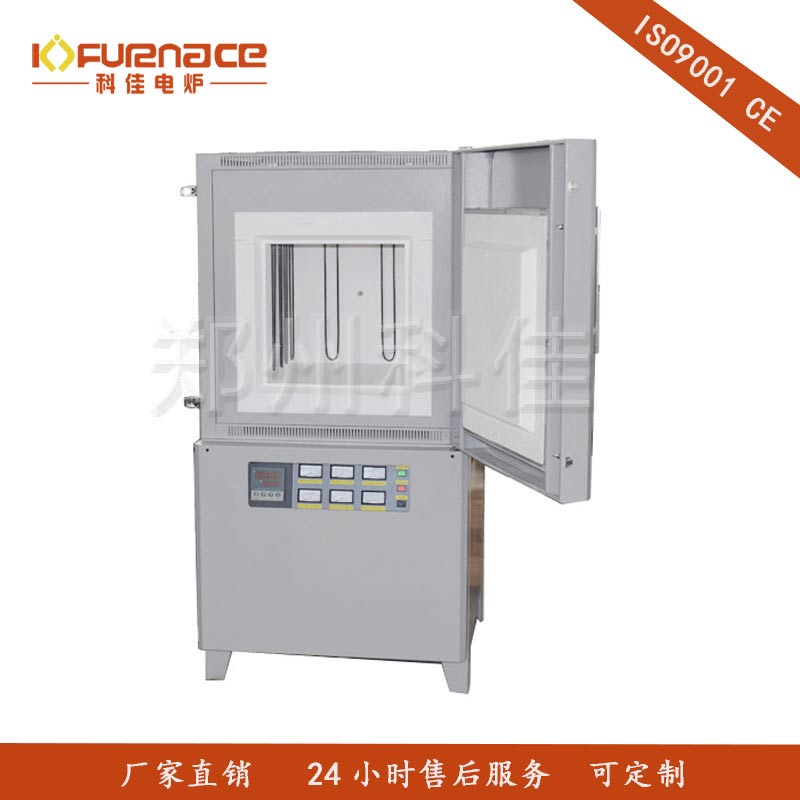

KJ-M1700-27LZ High-temperature Box Muffle Furnace

Model：KJ-M1700-27LZ

Description：

KJ-M1700-27LZ box furnace is a CE-approved high-temperature box muffle furnace with MoSi2 heating rods as heating element, SCR, 518p intellectual temperature controller and B-type thermocouple to achieve high temperature and automatic control. The top tem

Specific Introduction:
KJ-M1700-27LZ High-temperature Box Muffle Furnace is CE-approved with MoSi2 heating rods as heating element, SCR, 518p intellectual temperature controller and B-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1700℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.

Parameters：

Model	KJ-M1700-27LZ
Working Chamber Size	300300300mm
Heating Chamber Material	High-Purity Alumina Ceramic fiber
Working temperature	Top temperature: 1700℃ Working temperature: 1600℃
Temperature Control	PID, Intellectual 30-segment Programmable Controller
Heating Rate	0-30℃/min(Suggestion: 0-10℃/min)
Control Accuracy	±1℃
Heating Element	MoSi2 heating rods
Temperature Sensor	B-type Thermocouple (With Breakage and over-heating alarm)
Outside Shell	Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
Door	Side-open
Power Supply	220V 50HZ/60HZ （Customizable）
Plug	Please let us know the plug in your country when you book the furnace.
Max. Power	12kW
Accessories	Door block, Crucible Tong, Gloves, Instruction manual
Certificate	CE, ISO.
Option	Crucible, Screen Control, Software
Notes	1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min. 2, This furnace is not air-tight. 3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.
Warranty	One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered.
