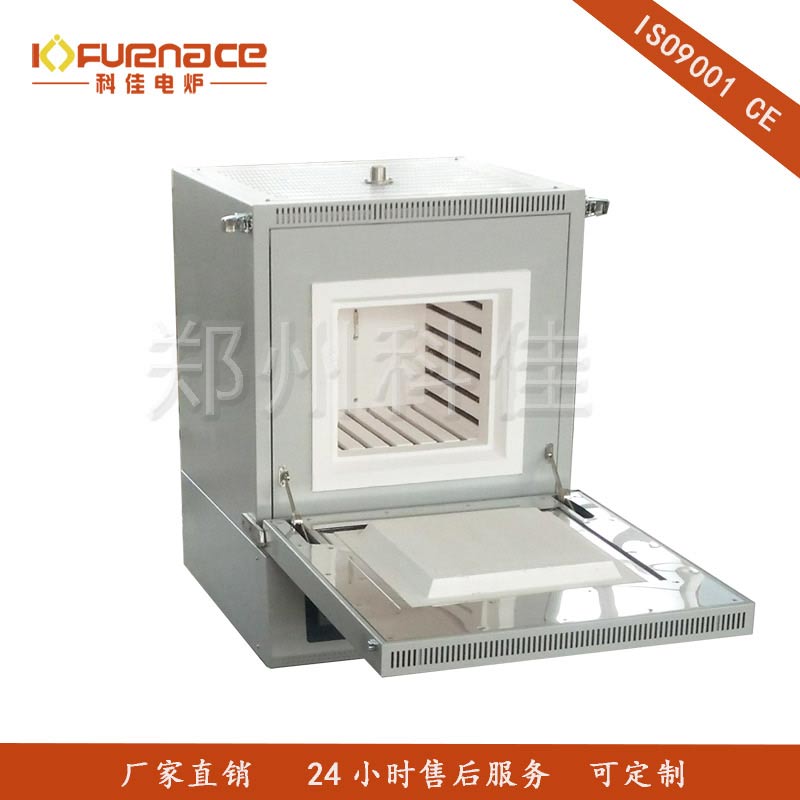

KJ-M1700-3.4LZ Drop-down-door Box Muffle Furnace
  • KJ-M1700-3.4LZ Drop-down-door Box Muffle Furnace
  • KJ-M1700-3.4LZ Drop-down-door Box Muffle Furnace
  • KJ-M1700-3.4LZ Drop-down-door Box Muffle Furnace
  • KJ-M1700-3.4LZ Drop-down-door Box Muffle Furnace
  • KJ-M1700-3.4LZ Drop-down-door Box Muffle Furnace

    Model:KJ-M1700-3.4LZ

    Description:

    With 1700deg.C top temperature, It characterizes uniform heating performance, low surface temperature, fast heating and cooling, high efficiency, is an ideal product for sintering, annealing, quality test in universities, research institutio and enterpris

    Specific Introduction:
    KJ-M1700-3.4LZ box furnace is CE-approved with MoSi2 heating rods as heating element, SCR, 518p intellectual temperature controller and B-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1700℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.





    Parameters:
    Model KJ-M1700-3.4LZ
    Working Chamber Size 150*150*150mm
    Heating Chamber Material High-Purity Alumina Ceramic fiber
    Working temperature Top temperature: 1700℃
    Working temperature: 1600℃
    Temperature Control PID, Intellectual 30-segment Programmable Controller
    Heating Rate 0-30℃/min(Suggestion: 0-10℃/min)
    Control Accuracy ±1℃
    Heating Element MoSi2 heating rods
    Temperature Sensor B-type Thermocouple
    (With Breakage and over-heating alarm)
    Outside Shell Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
    Door Side-open
    Power Supply 220V   50HZ/60HZ
    (Customizable)
    Plug Please let us know the plug in your country when you book the furnace.
    Max. Power 2.5kW
    Accessories Door block, Crucible Tong, Gloves, Instruction manual
    Certificate CE, ISO.
    Option Crucible, Screen Control, Software
    Notes 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.
    2, This furnace is not air-tight.
    3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.

    Warranty
    One year warranty with life-time technical support.
    Special notes:
    1, Consumables like heating element, quartz, crucible and so on are uncovered.
    2, Man-made damage and damage caused by misuse are uncovered.
