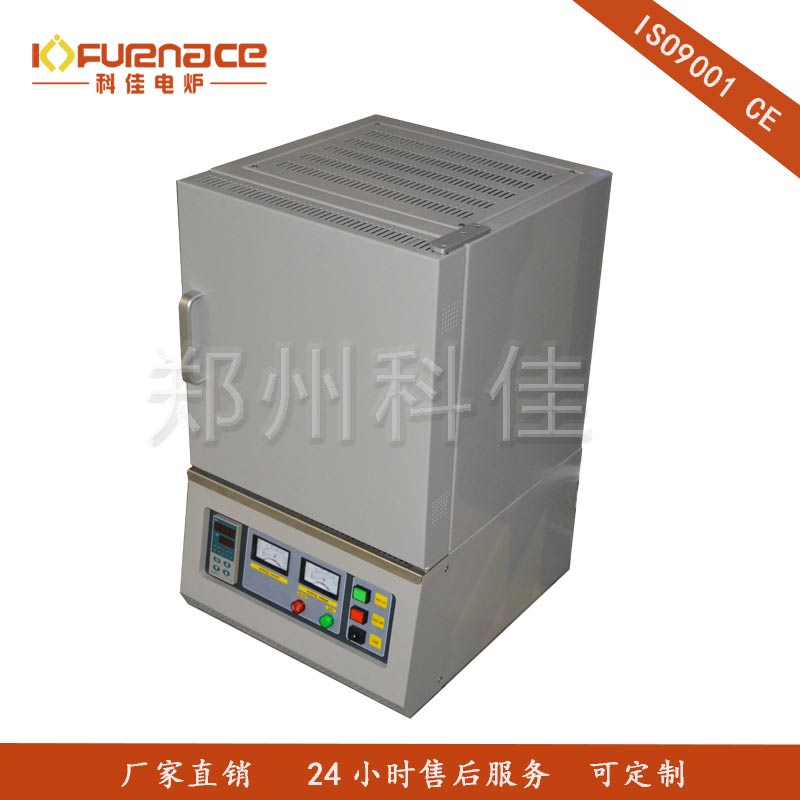

  • 1400℃ High-temperature Box Muffle Furnace 8L

    Model:KJ-M1400-8LZ

    Continuous Temp:

    Chamber/Tube size:

    Description:

    Specific Introduction:
    KJ-M1400-8LZ box furnace is CE-approved with SiC heating rods as heating element, SCR, 518p intellectual temperature controller and S-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1450℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.
    Parameters:

    Model

    KJ-M1400-8LZ

    Working Chamber Size

    200*200*200mm

    Heating Chamber Material

    High-Purity Alumina Ceramic fiber

    Working temperature

    Top temperature: 1400

    Working temperature: 1300

    Temperature Control

    PID, Intellectual 30-segment Programmable Controller

    Heating Rate

    0-30/min(Suggestion: 0-10/min)

    Control Accuracy

    ±1

    Heating Element

    SiC heating rods

    Temperature Sensor

    S-type Thermocouple

    (With Breakage and over-heating alarm)

    Outside Shell

    Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans

    Door

    Side-open

    Power Supply

    220V   50HZ/60HZ

    (Customizable)

    Plug

    Please let us know the plug in your country when you book the furnace.

    Max. Power

    4kW

    Accessories

    Door block, Crucible Tong, Gloves, Instruction manual

    Option

    Crucible, Screen Control, Software

    Notes

    1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10/min.
    2, This furnace is not air-tight.

    3, It is normal that there will be tiny cracks on the wall of the heating chamber, they wont affect the performance of the furnace, and can be repaired with alumina coating.



    Warranty

    One year warranty with life-time technical support.

    Special notes:

    1, Consumables like heating element, quartz, crucible and so on are uncovered.

    2, Man-made damage and damage caused by misuse are uncovered.
