Position:Home > Products > Box Furnace > 1300℃-1400℃ Box Furnace

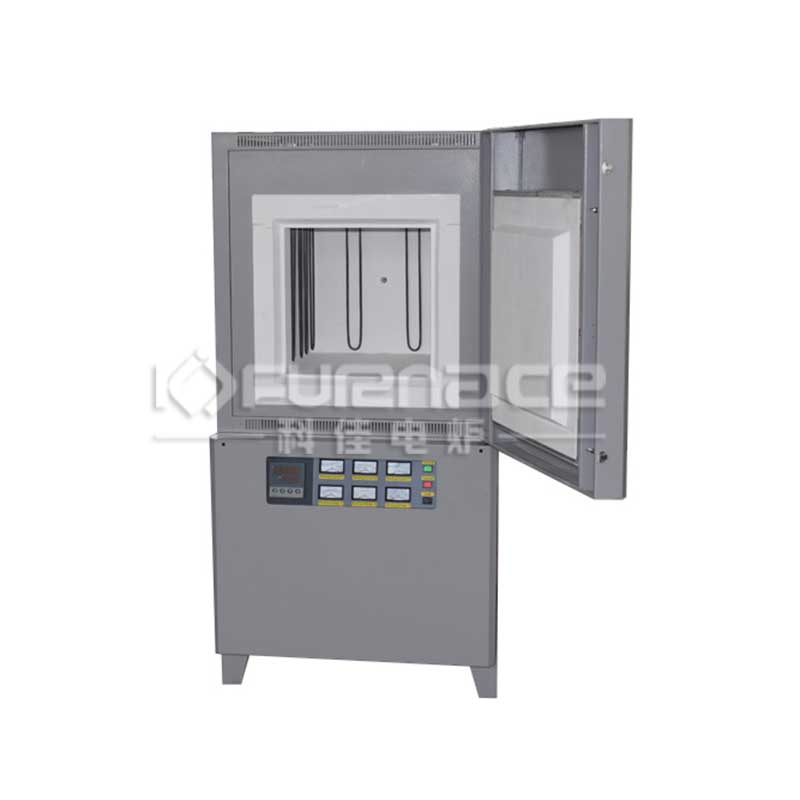

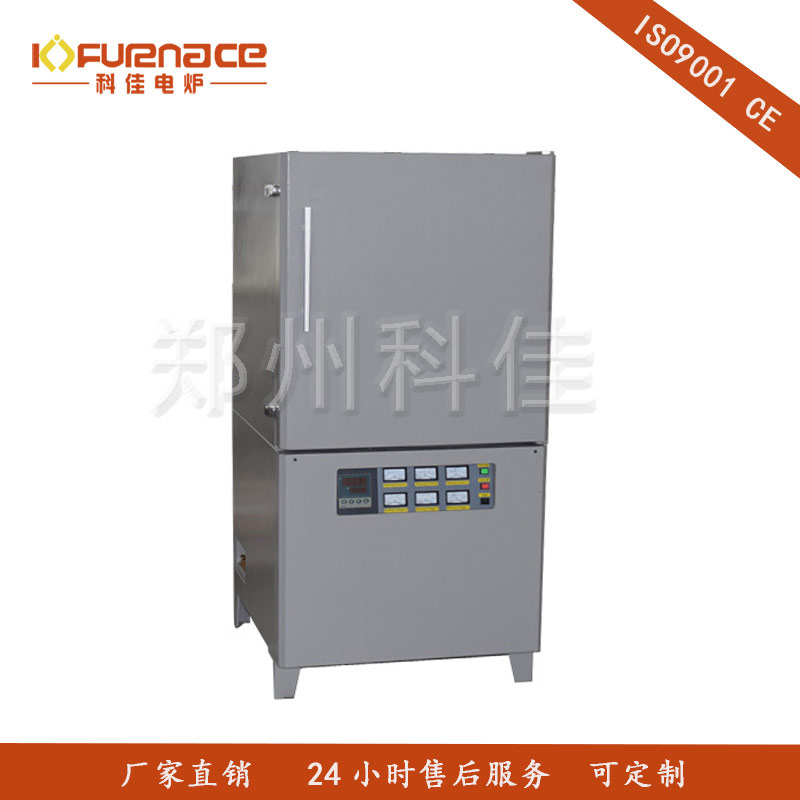

1400℃ Big Box Muffle Furnace 36L
  • 1400℃ Big Box Muffle Furnace 36L
  • 1400℃ Big Box Muffle Furnace 36L
  • 1400℃ Big Box Muffle Furnace 36L
  • 1400℃ Big Box Muffle Furnace 36L
  • 1400℃ Big Box Muffle Furnace 36L

    Model:KJ-M1400-36LZ

    Description:

    KJ-M1400-36LZ box furnace is CE-approved with SiC heating rods as heating element, SCR, 518p intellectual temperature controller and S-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1400℃

    Specific Introduction:
    KJ-M1400-36LZ box furnace is CE-approved with SiC heating rods as heating element, SCR, 518p intellectual temperature controller and S-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1400℃. It characterizes uniform heating performance, low surface temperature, fast heating and cooling, high efficiency, is an ideal product for sintering, annealing, quality test in universities, research institutions and enterprises.

    Parameters:
    Model KJ-M1400-36LZ
    Working Chamber Size 300*300*400mm
    Heating Chamber Material High-Purity Alumina Ceramic fiber
    Working temperature Top temperature: 1400℃
    Working temperature: 1300℃
    Temperature Control PID, Intellectual 30-segment Programmable Controller
    Heating Rate 0-30℃/min(Suggestion: 0-10℃/min)
    Control Accuracy ±1℃
    Heating Element SiC heating rods
    Temperature Sensor S-type Thermocouple
    (With Breakage and over-heating alarm)
    Outside Shell Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
    Door Side-open
    Power Supply 220V   50HZ/60HZ
    (Customizable)
    Plug Please let us know the plug in your country when you book the furnace.
    Max. Power 11kW
    Accessories Door block, Crucible Tong, Gloves, Instruction manual
    Certificate CE, ISO.
    Option Crucible, Screen Control, Software
    Notes 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.
    2, This furnace is not air-tight.
    3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.

    Warranty
    One year warranty with life-time technical support.
    Special notes:
    1, Consumables like heating element, quartz, crucible and so on are uncovered.
    2, Man-made damage and damage caused by misuse are uncovered.
