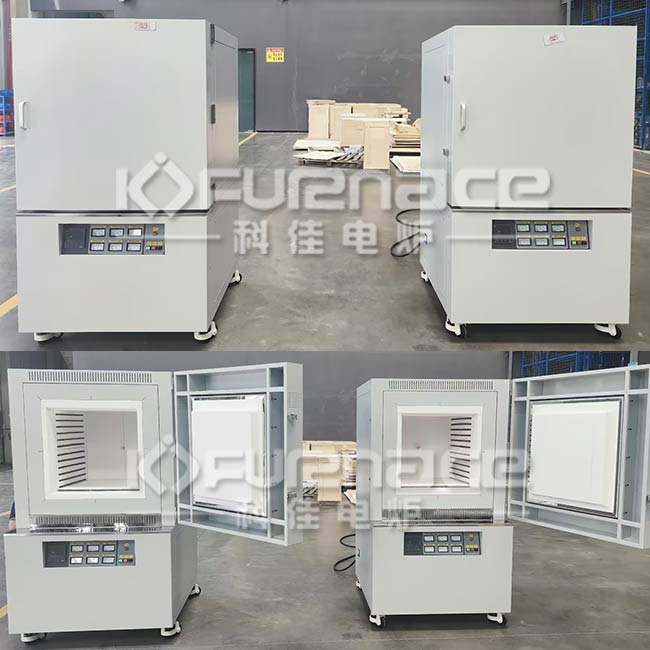

KJ-M1200-64L Muffle Furnace
  • KJ-M1200-64L Muffle Furnace
  • KJ-M1200-64L Muffle Furnace
  • KJ-M1200-64L Muffle Furnace
  • KJ-M1200-64L Muffle Furnace
  • KJ-M1200-64L Muffle Furnace

    Model:KJ-M1200-64L

    Description:

    This equipment is specially processed and designed to meet the needs of customers. It is a medium-temperature sintering furnace with high cost performance. Simplified classic design process, light alumina fiber sintering furnace, touch screen control, man

    Product description:
    This equipment is specially processed and designed to meet the needs of customers. It is a medium-temperature sintering furnace with high cost performance. Simplified classic design process, light alumina fiber sintering furnace, touch screen control, man-machine dialogue, barrier-free communication, making the operation easier!

    Features:
    1. The furnace volume is moderate, suitable for heat treatment of various materials;
    2. The refractory insulation material made by advanced technology has small heat loss and effectively reduces the power of equipment;
    3. Modular mechanism, durable and easy to maintain;
    4. There is an exhaust chimney on the top of the furnace to effectively remove the volatiles generated during the sintering process;
    5. Touch screen operation, intuitive display of temperature curve;


    Technical parameter
    Chamber size 400x400x400mm (Width x Height x Depth)
    Max. temperature 1200 o
    Working temperature 1100 oC
    Temperature control  ● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
    ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
    ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
    ● Over temperature protection and alarm allows for operation without attendant.
    Heating rate 0-10 ℃ /min
    Thermocouple K type
    Temperature accuracy ±1℃
    Heating element High quality resistance wire
    Furnace structure Double layer steel casing with dual cooling fan, temperature of furnace shell below 60 oC
    Furnace door ● Front open to aside
    ● Power cutting off when furnace door open
    Furnace Insulation Two layers of ceramic fiber insulation materials
    ● First layer: 1430°C ceramic fiber board
    ● Second layer: 1260°C ceramic fiber board
    Working voltage 380V 50/60Hz 2 phases
    Max. Power 15KW
    Certification CE


    muffle box furnace
