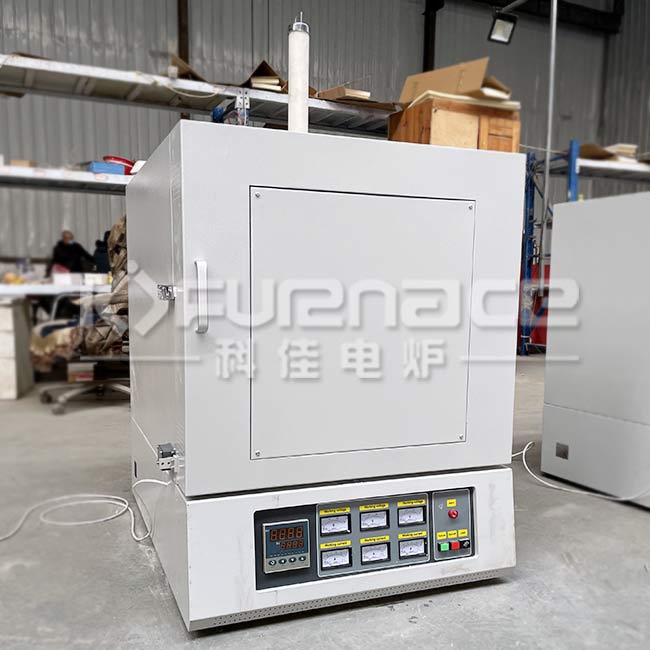

1200℃ Box Muffle Furnace

Model:KJ-M1200-36LZ

Description:

     Kejia KJ-M1200-36LZ box furnace shell adopts double-layer air-cooling mechanism, electrostatic adsorption spraying process, beautiful appearance, low surface temperature, PID controller, intelligent 30-stage programmable control, heating speed can be

Detailed
product description:
     Kejia KJ-M1200-36LZ box furnace shell adopts double-layer air-cooling mechanism, electrostatic adsorption spraying process, beautiful appearance, low surface temperature, PID controller, intelligent 30-stage programmable control, heating speed can be adjusted Control and has slope control function, stove top chimney, easy to exhaust.

The main purpose:
     It is widely used in high temperature sintering, material sintering, composition analysis, quality inspection and testing in universities, scientific research institutes, industrial and mining enterprises.


Name 1200℃ Box Muffle Furnace
Model KJ-M1200-36LZ
shell structure Double-layer air-cooled structure, electrostatic adsorption spraying process
chamber size Length 300×height 300×depth 400mm, effective volume 36L
Max.temperature ≤1200℃
Working temperature ≤1000℃
temperature uniformity ±5℃
chamber material Alumina polycrystalline ceramic refractory fiber
Temperature control method Adopt PID controller, intelligent 30-segment programmable control, controllable heating speed and slope control function
Holding time setting 0-9999min
Temperature control accuracy ±1℃
temperature stability 0.2%FS
Insulation layer thickness ≥110mm
Heating rate 0-30℃/min,RT-1000℃ The shortest heating time≤35min
Heating element HRE ultra-high temperature alloy resistance wire, heating on the upper, left and right sides, plug-in design, easy to replace at any time
Thermocouple Type K type
Furnace door opening method front side opening
Safety protection function 1. With the function of opening the door and powering off
2. Sound and light alarm in case of over temperature and broken couple
Operating Voltage 380V   50HZ
Maximum power approx. 6KW
chimney Φ50*350
Standard accessories 1 set of crucible tongs, 1 pair of high temperature gloves, 1 copy of certificate, warranty card and instruction manual.
Equipment net weight ≤95kg
Warranty 1 year warranty (except for wearing parts and man-made damage)
