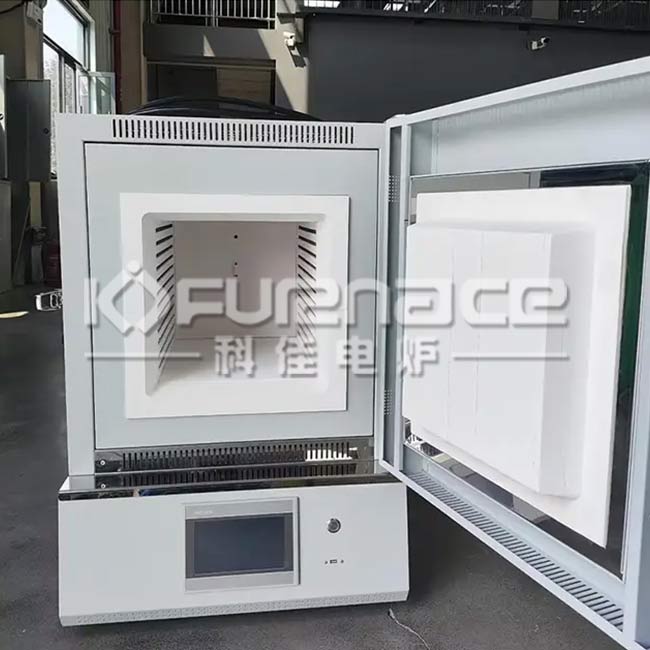

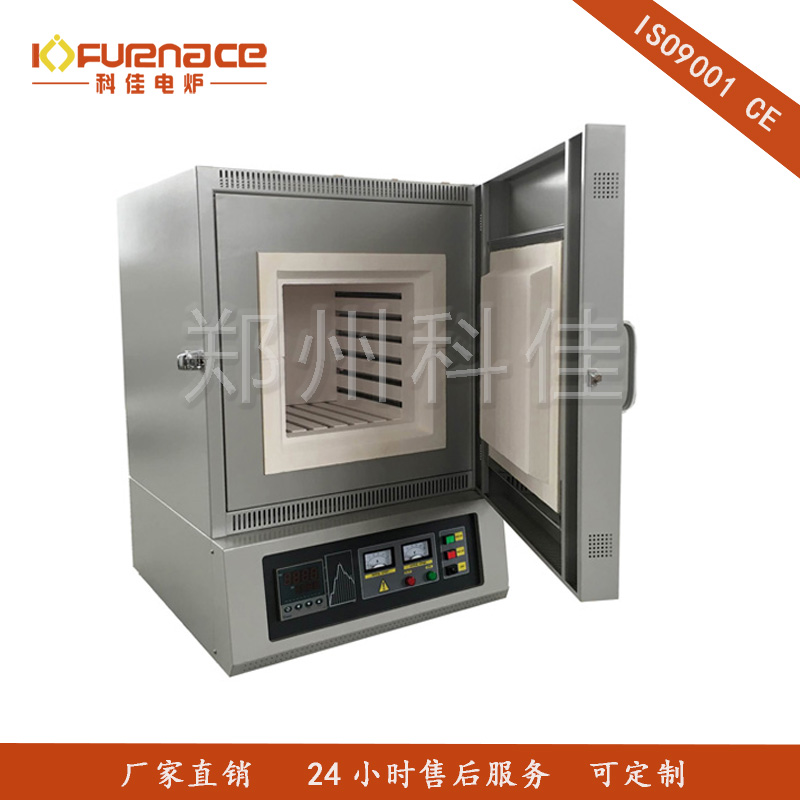

1200℃ mid-size bench-top box muffle furnace-27L
  • 1200℃ mid-size bench-top box muffle furnace-27L
  • 1200℃ mid-size bench-top box muffle furnace-27L
  • 1200℃ mid-size bench-top box muffle furnace-27L
  • 1200℃ mid-size bench-top box muffle furnace-27L
  • 1200℃ mid-size bench-top box muffle furnace-27L

    Model:KJ-M1200-27LZ

    Description:

    KJ-M1200-27LZ box-type muffle furnace adopts 0Cr27Al7Mo2 resistance wire as heating element, double layers of alumina ceramic fiber as insulation layer and 30-segment-programmable controller, its temperature can go up to 1200℃.

    Brief introduction:
        With 0Cr27Al7Mo2 resistance as heating element, double layers of alumina ceramic fiber as insulation layer, and 30-segment-programmable controller, its temperature can go up to 1200℃ and work continuously for long time at 1100℃. It characterize with uniform temperature, low surface temperature, fast heating and cooling, high energy efficiency. It’s an ideal furnace for high temperature sintering, annealing and quality test in laboratory, universities, enterprises and research institutions.
    Parameters:

    Model

    KJ-M1200-27LZ

    Working Chamber Size

    300*300*300mm

    Heating Chamber Material

    High-Purity Alumina Ceramic fiber

    Working temperature

    Top temperature: 1200℃

    Working temperature: 1100℃

    Temperature Control

    PID, Intellectual 30-segment Programmable Controller

    Heating Rate

    0--30/min

    Control Accuracy

    ±1

    Heating Element

    0Cr27Al7Mo2 Resistance Wire

    Temperature Sensor

    K-type Thermocouple

    (With Breakage and over-heating alarm)

    Outside Shell

    Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans

    Door

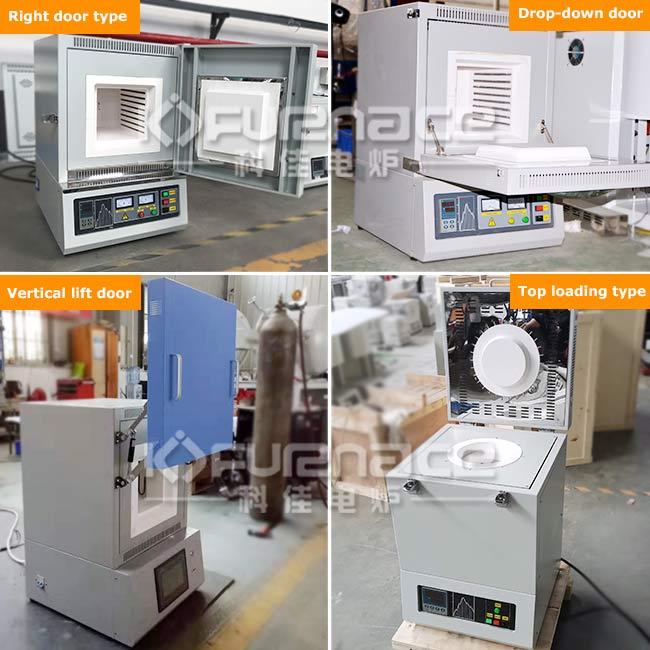

    Side-open Design

    Power Supply

    220V   50HZ/60HZ

    Plug

    Please let us know the plug in your country when you book the furnace.

    Max. Power

    4kW

    Accessories

    Crucible Tong, Gloves, Instruction manual

    Option

    Crucible, Screen Control, Software

    Notes:

    1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.

    2, Cooling rate no higher than 5℃ /min.

    3, This furnace is not air-tight.

    4, It is normal that there will be tiny cracks on the wall of the heating chamber, they wont affect the performance of the furnace, and can be repaired with alumina coating.

    5, The heating chamber is replaceable.

    6, We suggest you put the furnace in the fume hood if the material you heat release smoke or any harmful gas.

    Warranty

    One year warranty with life-time technical support.

    Special notes:

    1, Consumables like heating element, quartz, crucible and so on are uncovered.

    2, Man-made damage and damage caused by misuse are uncovered.
