1200℃ box-type muffle furnace-8L_Zhengzhou Kejia Furnace

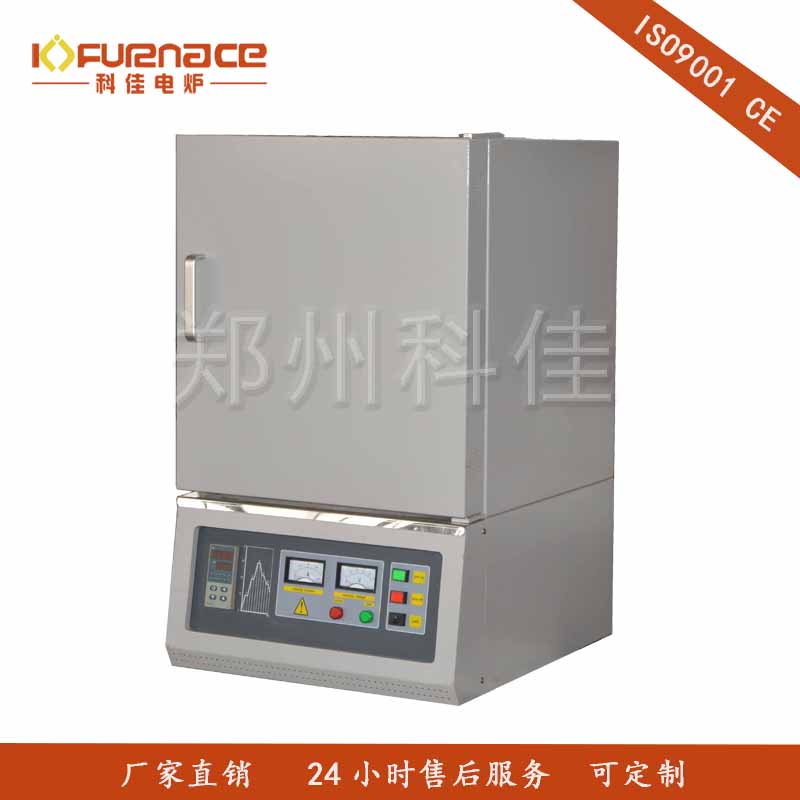

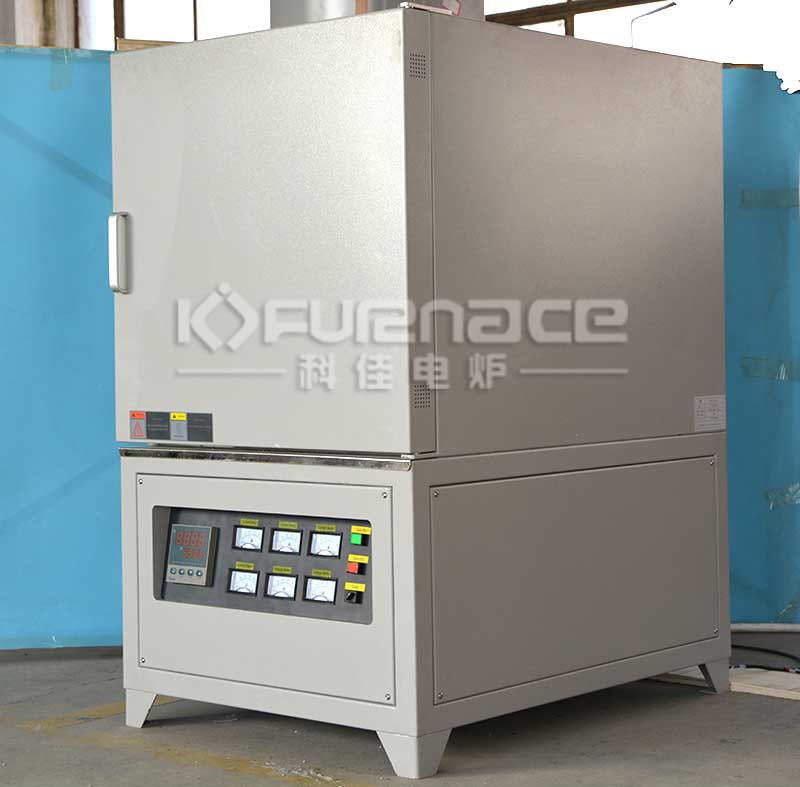

1200℃ box-type muffle furnace-8L

Model：KJ-M1200-8LZ

Description：

KJ-M1200-8L box-type muffle furnace adopts 0Cr27Al7Mo2 resistance wire as heating element, double layers of alumina ceramic fiber as insulation layer and 30-segment-programmable controller, its temperature can go up to 1200℃.

Brief introduction:
With 0Cr27Al7Mo2 resistance as heating element, double layers of alumina ceramic fiber as insulation layer, and 30-segment-programmable controller, its temperature can go up to 1200℃ and work continuously for long time at 1100℃. It characterize with uniform temperature, low surface temperature, fast heating and cooling, high energy efficiency. It’s an ideal furnace for high temperature sintering, annealing and quality test in laboratory, universities, enterprises and research institutions.

Parameters：

Model	KJ-M1200-8LZ
Working Chamber Size	200200200mm
Heating Chamber Material	High-Purity Alumina Ceramic fiber
Working temperature	Top temperature: 1200℃ Working temperature: 1100℃
Temperature Control	PID, Intellectual 30-segment Programmable Controller
Heating Rate	0--20℃ /min
Control Accuracy	±1℃
Heating Element	0Cr27Al7Mo2 Resistance Wire
Temperature Sensor	K-type Thermocouple (With Breakage and over-heating alarm)
Outside Shell	Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
Door	Side-open Design
Power Supply	220V 50HZ/60HZ
Plug	Please let us know the plug in your country when you book the furnace.
Max. Power	4kW
Accessories	Crucible Tong, Gloves, Instruction manual
Option	Crucible, Screen Control, Software
Notes:	1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃ /min. 2, Cooling rate no higher than 5℃ /min. 3, This furnace is not air-tight. 4, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating. 5, The heating chamber is replaceable. 6, We suggest you put the furnace in the fume hood if the material you heat release smoke or any harmful gas.
Warranty	One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered.
