Product use:
Alloys and other metal materials that require high temperature field uniformity are annealed.
Product introduction:

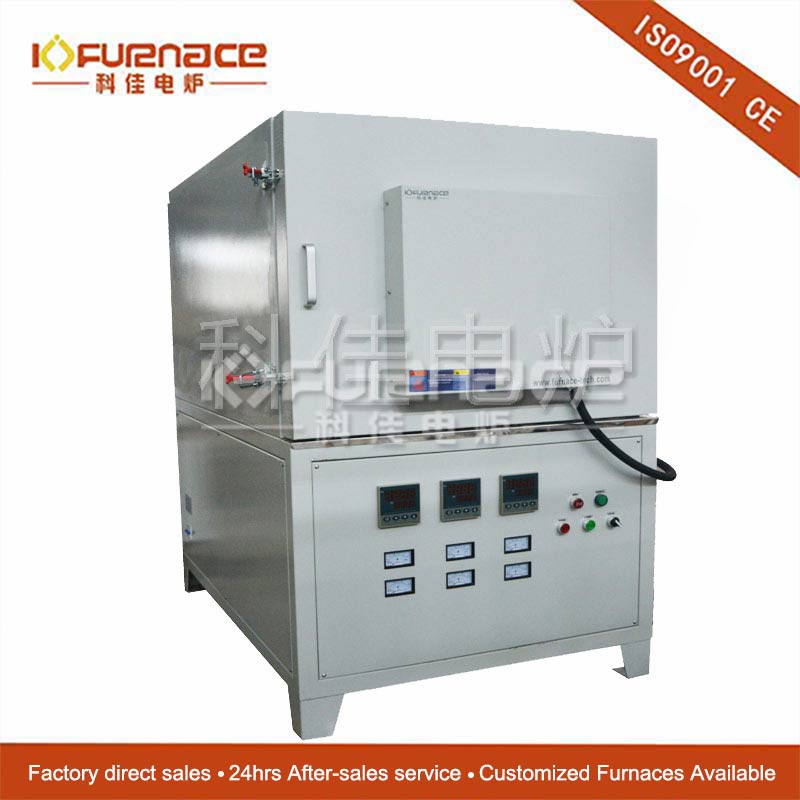

This equipment is a five-sided high-temperature muffle furnace. Because the five sides of the furnace cavity are equipped with heating elements, and the temperature is controlled by multiple temperatures, the uniformity of the temperature field is better. The heating element is a resistance wire, a high-box double-layer air-cooled shell structure and 30-segment program temperature control. K-type thermocouple, the furnace is made of alumina microcrystalline fiber material, and the double-layer furnace shell is equipped with an air-cooled circulation system, the highest temperature can reach 1200 ℃, and can work continuously at 1100 ℃; the furnace has a balanced temperature field and a low surface temperature , Fast temperature rise and fall, energy saving and other advantages.
Technical Parameters:
Alloys and other metal materials that require high temperature field uniformity are annealed.
Product introduction:
This equipment is a five-sided high-temperature muffle furnace. Because the five sides of the furnace cavity are equipped with heating elements, and the temperature is controlled by multiple temperatures, the uniformity of the temperature field is better. The heating element is a resistance wire, a high-box double-layer air-cooled shell structure and 30-segment program temperature control. K-type thermocouple, the furnace is made of alumina microcrystalline fiber material, and the double-layer furnace shell is equipped with an air-cooled circulation system, the highest temperature can reach 1200 ℃, and can work continuously at 1100 ℃; the furnace has a balanced temperature field and a low surface temperature , Fast temperature rise and fall, energy saving and other advantages.
Technical Parameters:
| Furnace size | 400*400*400/500*500*500/600*600*600mm optional |
| Furnace material | Alumina refractory fiber |
| Maximum temperature | 1200°C |
| Temperature control method | Using PID controller, intelligent 30-segment programmable control |
| Suggested heating rate | 0--10℃/min |
| Heating element | Resistance wire |
| Thermocouple | Type K |
| Shell structure | Double-layer wind-cooled electric spray structure |
| Door opening method | Side opening/high box |
| Operating Voltage | 220V /380V 50HZ/60HZ |
| Maximum power approx. | According to actual |
| Optional | Crucible, touch screen temperature control, computer temperature control software, |
| More specifications can be customized according to requirements | |
