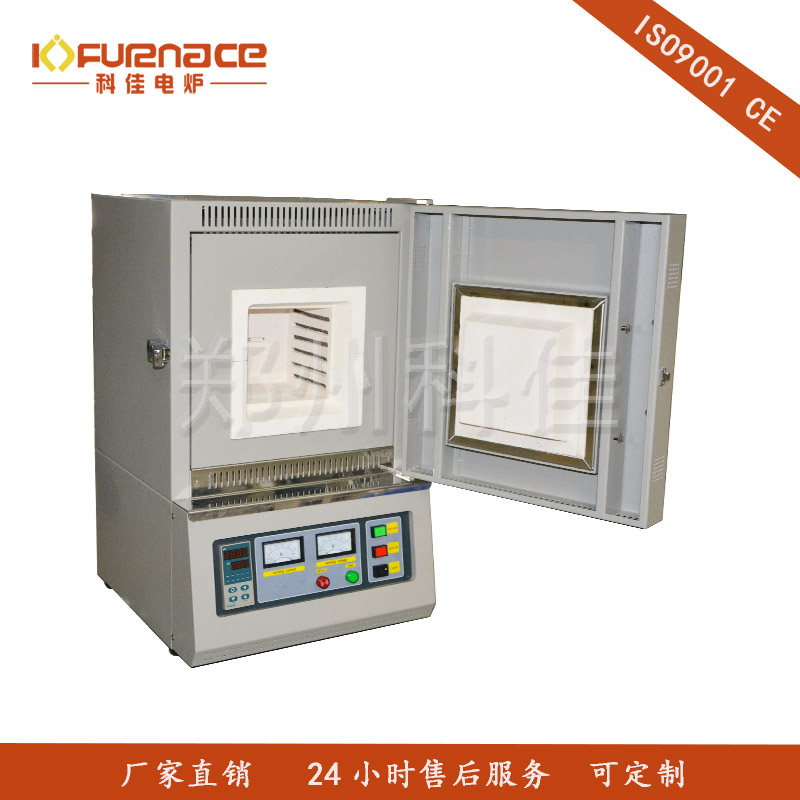

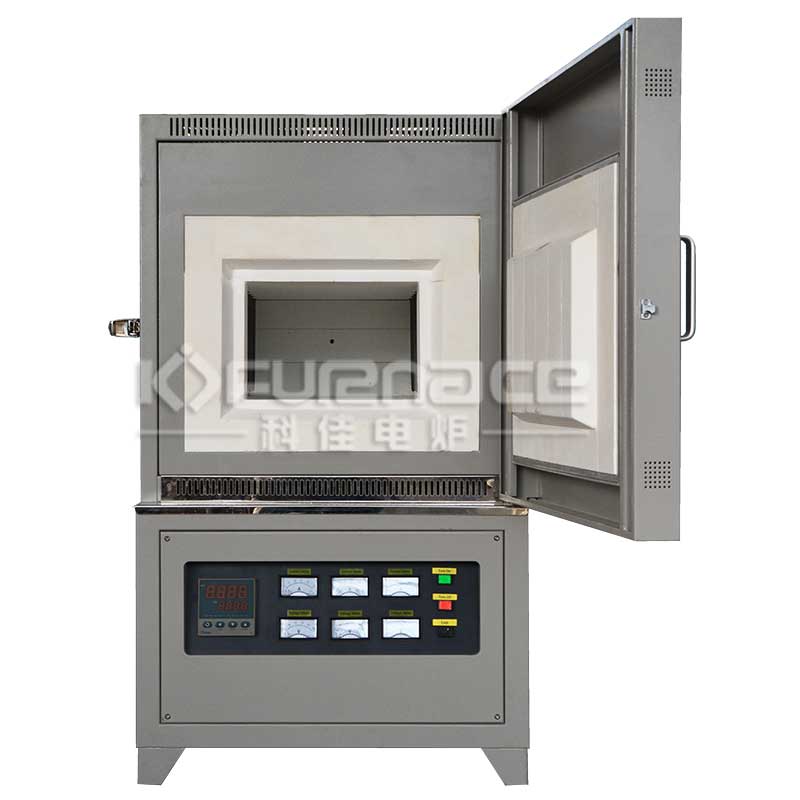

1200℃ 3.4L Small Box Muffle Furnace
  • 1200℃ 3.4L Small Box Muffle Furnace
  • 1200℃ 3.4L Small Box Muffle Furnace
  • 1200℃ 3.4L Small Box Muffle Furnace
  • 1200℃ 3.4L Small Box Muffle Furnace
  • 1200℃ 3.4L Small Box Muffle Furnace

    Model:KJ-M1200-3.4LZ

    Description:

    Approved by CE, KJ-M1200-3.4LZ adopts high-purity alumina ceramic fiber as it insulation chamber, it characterize cleanness, long service life and high energy efficiency.

    Introduction:
        Approved by CE, KJ-M1200-3.4LZ adopts high-purity alumina ceramic fiber as it insulation chamber, it characterize cleanness, long service life and high energy efficiency. The temperature control system adopts PID system, 30-segment programmable controller and can reach 1200℃ .

    Parameters:

    Model KJ-M1200-3.4LZ
    Working Chamber Size 150*150*150mm
    Heating Chamber Material High-Purity Alumina Ceramic fiber
    Working temperature  Top temperature: 1200℃
    Working temperature: 1100℃
    Temperature Control PID, Intellectual Programmable Touchscreen Controller
    Heating Rate 0-30℃/min
    (Suggestion smaller than 10℃/min)
    Control Accuracy ±1℃
    Heating Element  0Cr27Al7Mo2 Resistance Wire
    Temperature Sensor K-type Thermocouple
    (With Breakage and over-heating alarm)
    Outside Shell Carbon Steel Outside Shell with Cooling Fans
    Door Side-open Design
    Power Supply 220V 50HZ/60HZ
    Plug Please let us know the plug in your country when you book the furnace.
    Max. Power 2.5kW
    Accessories Crucible Tong, Gloves, Instruction manual
    Option Crucible, Screen Control, Software
    Notes 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.
    2, Cooling rate no higher than 5℃/min.
    3, This furnace is not air-tight.
    4, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.
    5, The heating chamber is replaceable.
    6, We suggest you put the furnace in the fume hood if the material you heat release smoke or any harmful gas.
    Warranty One year warranty with life-time technical
    Special notes:
    1, Consumables like heating element, quartz, crucible and so on uncovered.
    2, Man-made damage and damage caused by misuse uncovered.
