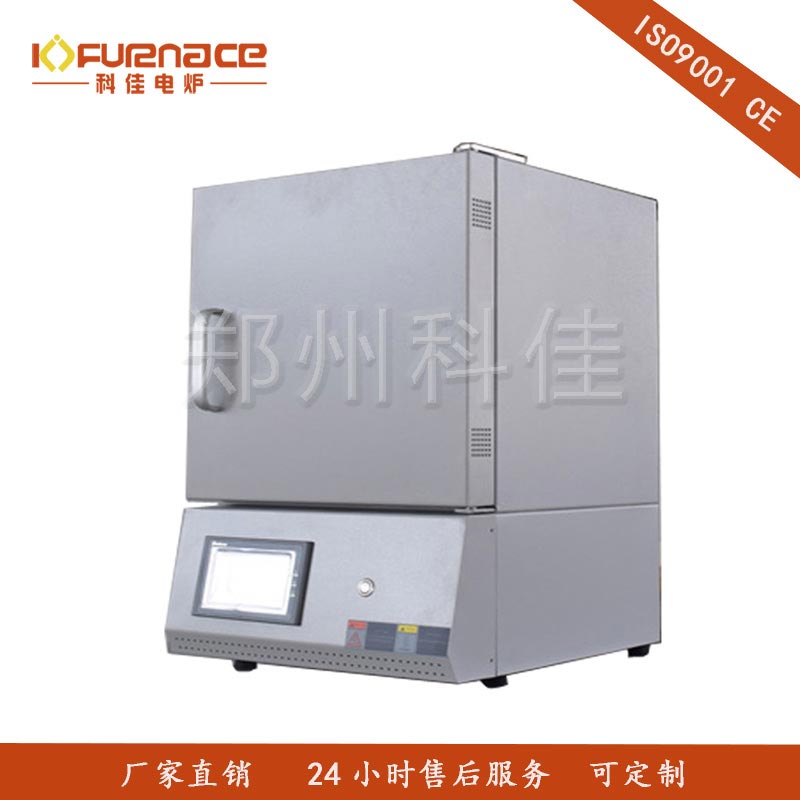

  • 1200℃ Mini Box Muffle Furnace with Touchscreen Control

    Model:KJ-M1200-MC

    Continuous Temp:

    Chamber/Tube size:

    Description:

    Specific Introduction:
    KJ-M1200-MC can reach 1100℃ and work at 1000℃ for long time. It characterize neat structure, light body, uniform heating performance, fast heating and cooling, high efficiency, easy operation, in addition, it can be placed in vacuum glove boxes, is an ideal product for sintering, annealing, quality test in universities, research institutions and enterprises.
    Parameters:


    Model

    KJ-M1200-MC

    Working Chamber Size

    100*100*100mm

    Heating Chamber Material

    High-Purity Alumina Ceramic fiber

    Working temperature

     Top temperature: 1200

    Working temperature: 1100

    Temperature Control

    PID, Intellectual Programmable Touchscreen Controller

    Heating Rate

    0-20/min

    (Suggestion smaller than 10/min)

    Control Accuracy

    ±1

    Heating Element

     0Cr27Al7Mo2 Resistance Wire

    Temperature Sensor

    K-type Thermocouple

    (With Breakage and over-heating alarm)

    Outside Shell

    Carbon Steel Outside Shell with Cooling Fans

    Door

    Side-open Design

    Power Supply

    220V 50HZ/60HZ

    Plug

    Please let us know the plug in your country when you book the furnace.

    Max. Power

    1.5kW

    Accessories

    Crucible Tong, Gloves, Instruction manual

    Option

    Crucible, Screen Control, Software

    Notes

    1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10/min.
    2, Cooling rate no higher than 5
    /min.
    3, This furnace is not air-tight.

    4, It is normal that there will be tiny cracks on the wall of the heating chamber, they wont affect the performance of the furnace, and can be repaired with alumina coating.
    5, The heating chamber is replaceable.

    6, We suggest you put the furnace in the fume hood if the material you heat release smoke or any harmful gas.

    Warranty

    One year warranty with life-time technical

    Special notes:

    1, Consumables like heating element, quartz, crucible and so on uncovered.

    2, Man-made damage and damage caused by misuse uncovered.
