Product Induction:

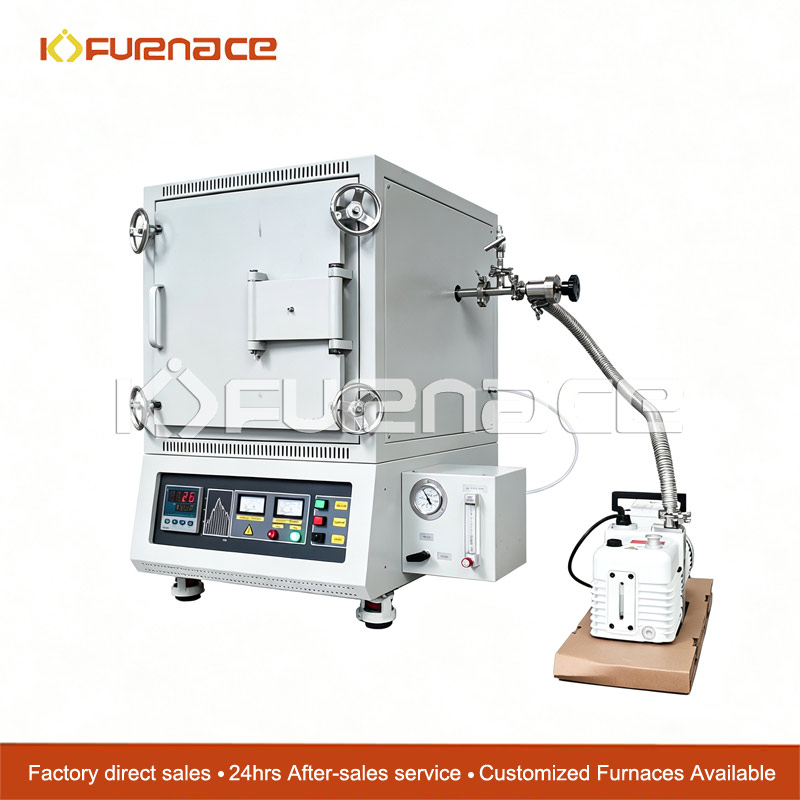

The KJ-A1200-CZ series small box-type atmosphere furnace is a 1200℃-class closed atmosphere heat treatment device specifically developed for laboratories, universities, and research institutes. The entire unit integrates four core systems: high-temperature heating, intelligent temperature control, vacuum sealing, and atmosphere protection. It supports both vacuum and inert protective atmosphere operating environments, isolating samples from air to prevent high-temperature oxidation. It is suitable for various experimental processes such as melting, sintering, annealing, and thermal analysis of metals, non-metals, and inorganic composite materials.
The equipment adopts a double-layer air-cooled shell with a high-purity alumina fiber furnace chamber. It comes standard with an N-type thermocouple with fault alarm and a 30-segment programmable PID temperature controller. The heating rate is continuously adjustable from 0–20℃/min, with stable temperature control accuracy of ±1℃. The unit is compact, space-saving, and easy to operate. It comes standard with a complete set of experimental accessories and supports optional upgrades such as touch screen control and host computer software communication. It is a standard experimental device for materials research and development and small-batch sample heat treatment.
Application Range
1. Materials Laboratories in Universities and Research Institutes
Inorganic non-metallic materials: alumina, aluminum nitride, silicon carbide, sintering of ceramic blanks, heat treatment of ceramic glazes;
New energy materials: lithium battery positive and negative electrode powders, solid electrolytes, rare earth luminescent materials, annealing and reduction of magnetic ferrites;
Nano powders, catalysts, graphene, high-temperature synthesis and thermal analysis of carbon-based composite materials.
2. Powder Metallurgy and Metallic Materials R&D
Titanium, molybdenum, tungsten, copper-based alloys, oxide-free sintering of cemented carbides, annealing of metal powders, alloy brazing, metallographic pretreatment of metal samples.
3. Electronics and Semiconductor Industry
MLCC electronic ceramics, piezoelectric ceramics, silicon-based components, vacuum annealing of semiconductor substrates, oxygen-free heat treatment of electronic powders.
4. Chemical, Mineral, and Refractory Materials
Mineral calcination, high-temperature activation of catalysts, performance testing of refractory materials, high-temperature melting of glass raw materials, thermal decomposition experiments of inorganic compounds. 5. Small Enterprise R&D Quality Inspection Laboratory: Suitable for small-scale testing of new material formulations, product temperature resistance testing, and atmosphere-protected heat treatment of small batch samples. Also applicable to R&D testing in various industries such as new energy, ceramics, metallurgy, chemicals, and biomaterials.
Parameters：
Atmosphere furnace delivery picture:
The KJ-A1200-CZ series small box-type atmosphere furnace is a 1200℃-class closed atmosphere heat treatment device specifically developed for laboratories, universities, and research institutes. The entire unit integrates four core systems: high-temperature heating, intelligent temperature control, vacuum sealing, and atmosphere protection. It supports both vacuum and inert protective atmosphere operating environments, isolating samples from air to prevent high-temperature oxidation. It is suitable for various experimental processes such as melting, sintering, annealing, and thermal analysis of metals, non-metals, and inorganic composite materials.
The equipment adopts a double-layer air-cooled shell with a high-purity alumina fiber furnace chamber. It comes standard with an N-type thermocouple with fault alarm and a 30-segment programmable PID temperature controller. The heating rate is continuously adjustable from 0–20℃/min, with stable temperature control accuracy of ±1℃. The unit is compact, space-saving, and easy to operate. It comes standard with a complete set of experimental accessories and supports optional upgrades such as touch screen control and host computer software communication. It is a standard experimental device for materials research and development and small-batch sample heat treatment.
Application Range
1. Materials Laboratories in Universities and Research Institutes
Inorganic non-metallic materials: alumina, aluminum nitride, silicon carbide, sintering of ceramic blanks, heat treatment of ceramic glazes;
New energy materials: lithium battery positive and negative electrode powders, solid electrolytes, rare earth luminescent materials, annealing and reduction of magnetic ferrites;
Nano powders, catalysts, graphene, high-temperature synthesis and thermal analysis of carbon-based composite materials.
2. Powder Metallurgy and Metallic Materials R&D
Titanium, molybdenum, tungsten, copper-based alloys, oxide-free sintering of cemented carbides, annealing of metal powders, alloy brazing, metallographic pretreatment of metal samples.
3. Electronics and Semiconductor Industry
MLCC electronic ceramics, piezoelectric ceramics, silicon-based components, vacuum annealing of semiconductor substrates, oxygen-free heat treatment of electronic powders.
4. Chemical, Mineral, and Refractory Materials
Mineral calcination, high-temperature activation of catalysts, performance testing of refractory materials, high-temperature melting of glass raw materials, thermal decomposition experiments of inorganic compounds. 5. Small Enterprise R&D Quality Inspection Laboratory: Suitable for small-scale testing of new material formulations, product temperature resistance testing, and atmosphere-protected heat treatment of small batch samples. Also applicable to R&D testing in various industries such as new energy, ceramics, metallurgy, chemicals, and biomaterials.
Parameters：
| Model | KJ-A1200-CZ series | ||||
| Working Chamber Size (Customizable) | |||||
| 100*100*100mm | 120*120*130mm | 150*150*150mm | 150*150*200mm | 200*200*200mm | 200*200*300mm |
| Heating Chamber Material | High-Purity Alumina fiber | ||||
| Working temperature | Top temperature: 1200℃ Working temperature: ≤ 1100℃ |
||||
| Temperature Control | PID, Intellectual 30-segment Programmable Controller | ||||
| Heating Rate | 0-20℃/min | ||||
| Control Accuracy | ±1℃ | ||||
| Heating Element | 0Cr27Al7Mo2 Resistance Wire | ||||
| Temperature Sensor | N-type Thermocouple (With Breakage and over-heating alarm) |
||||
| Outside Shell | Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans | ||||
| Air-tight Tank | Atmosphere condition and vacuum condition | ||||
| Door | Side-open Design with sealing rubber | ||||
| Option | Crucible, Screen Control, Software | ||||
| Notes: | 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃min. 2, Cooling rate no higher than 5℃min. 3, Toxic or explosive air is not allowed. 4, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating. |
||||
|
Warranty |
One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered. |
||||

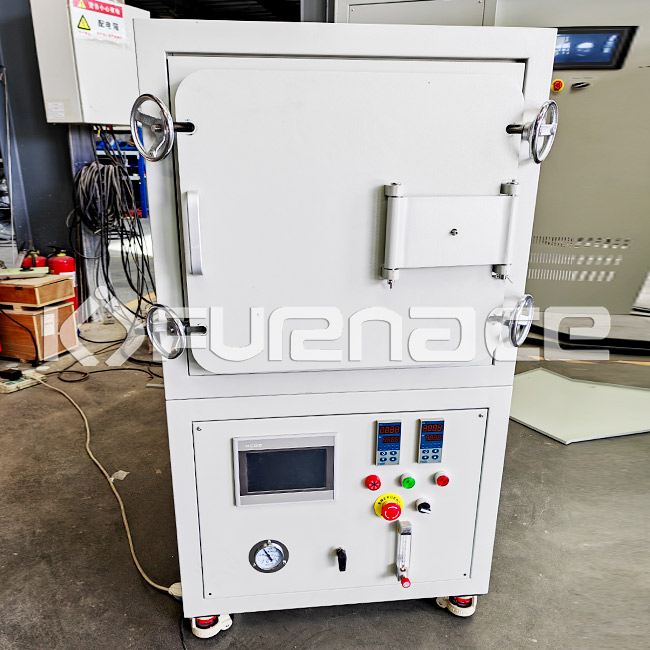

Atmosphere furnace delivery picture:
