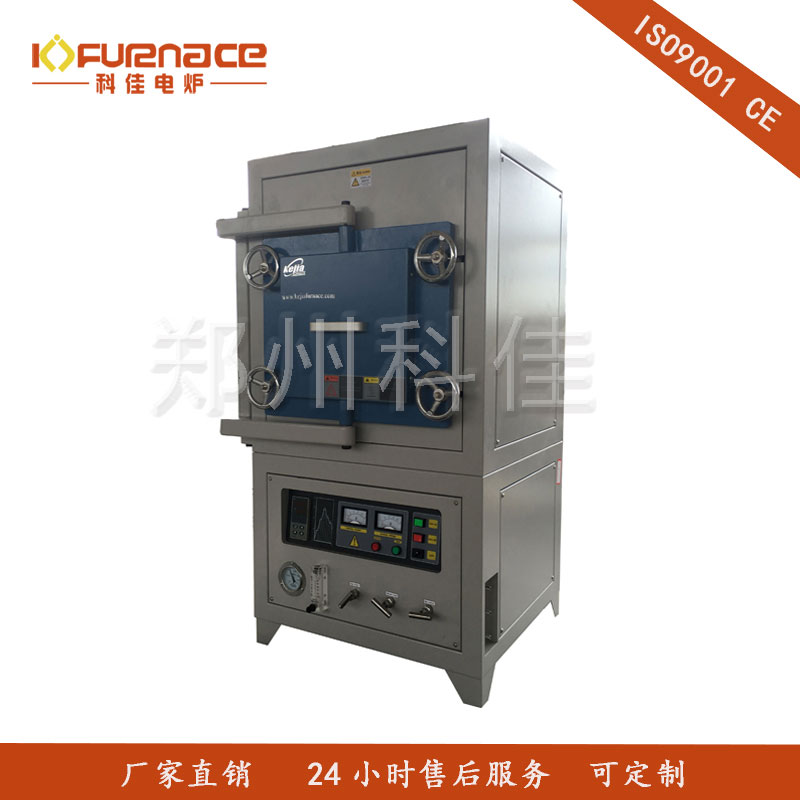

Box type atmosphere furnace (upper and lower box)
  • Box type atmosphere furnace (upper and lower box)
  • Box type atmosphere furnace (upper and lower box)
  • Box type atmosphere furnace (upper and lower box)
  • Box type atmosphere furnace (upper and lower box)
  • Box type atmosphere furnace (upper and lower box)

    Model:KJ-A1700-12LZ

    Description:

    Product name Box type atmosphere furnace (upper and lower box) Model KJ-A1700-12LZ Shell structure Double-layer air cooling, surface ele

    Product name Box type atmosphere furnace (upper and lower box)
    Model KJ-A1700-12LZ
    Shell structure Double-layer air cooling, surface electrostatic spraying, upper and lower box structure
    Liner structure Carbon steel is fully welded and sealed, and the top cover and furnace door are tightly sealed with silicone sealing rings
    Effective size 200*200*300mm
    Max.temperature 1700℃
    Working.temperature ≤1600℃
    Temperature control accuracy ±1℃
    Furnace chamber material High quality polycrystalline alumina refractory fiber
    Temperature control method Using PID controller, intelligent 30-segment programmable control
    Heating rate Recommended ≤10°C/min, 0--30°C/min
    Heating element Silicon molybdenum rod
    thermocouple Type B double platinum rhodium thermocouple temperature measurement
    Furnace door opening method Front side opening, hand wheel + silicone sealing ring seal
    inlet/outlet One air inlet, one air outlet, one vacuum port
    Passable atmosphere Inert atmosphere such as nitrogen and argon
    Vacuum Mechanical vacuum pressure gauge can reach -0.1MPa
    Operating Voltage 220V 50HZ
    Maximum power approx. 6KW
    Standard configuration 1 host, 1 crucible tongs, 1 pair of high-temperature gloves, 2m vacuum silicone tube
    warranty period 15 months from the date of delivery or 12 months from the date of acceptance, whichever comes first; wearing parts and man-made damage are excluded
