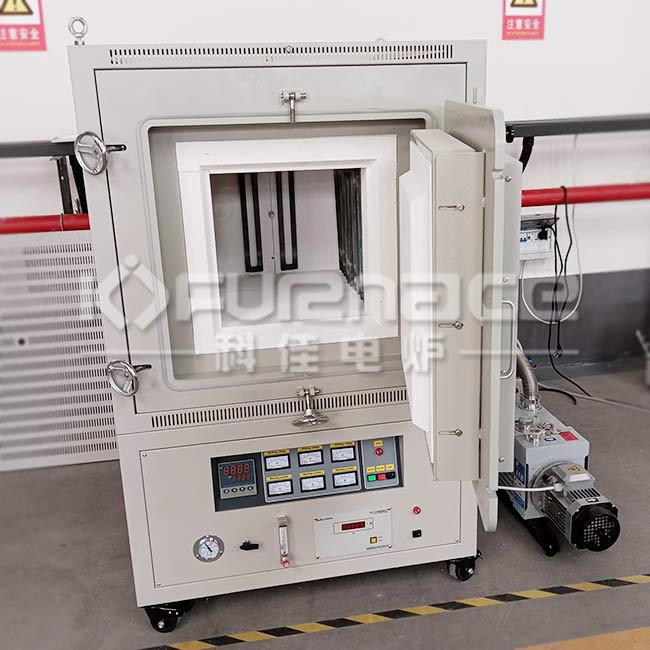

Medium temperature box type atmosphere furnace
  • Medium temperature box type atmosphere furnace
  • Medium temperature box type atmosphere furnace
  • Medium temperature box type atmosphere furnace
  • Medium temperature box type atmosphere furnace
  • Medium temperature box type atmosphere furnace

    Model:KJ-A1400-80LZ

    Description:

    The medium-temperature box-type atmosphere furnace can be applied to the heat treatment process of electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, c

    Product description:
    The medium-temperature box-type atmosphere furnace is an internal heating single-chamber structure with high-quality silicon carbide rods as heating elements. The aluminum oxide polycrystalline fiber material is used, which has good thermal insulation and energy saving effects. Double-layer air-cooled structure, housing.

    Applications:
    The medium-temperature box-type atmosphere furnace can be applied to the heat treatment process of electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises for pre-sintering, sintering, brazing and other processes of electronic ceramic products.

    Features:
    1. The heating elements are evenly arranged on multiple sides to ensure that the work is heated evenly.
    2. It is airtight, equipped with a vacuum pump to pre-evacuate and replace the gas.
    3. There are air inlet and outlet ports, which can be used for air intake and exhaust according to process requirements.
    4. Equipped with an audible and visual alarm device for over-temperature disconnection.
    5. Optional digital display vacuum gauge can display the vacuum degree in the furnace in real time

    Product parameters:
    Product name Medium temperature box type atmosphere furnace
    Model KJ-A1400-80LZ
    Material area size 400*400*500mm
    heating element High quality silicon carbide rod
    Temperature control method Intelligent multi-stage program temperature control
    Working temperature ≤1300℃
    extreme temperature 1400℃
    Heating rate ≤10℃/min
    thermocouple S type temperature measuring thermocouple
    Ultimate vacuum -0.1MPA
    Vacuum pump Various pumping speeds are optional
    power supply 3-phase 380V power about 27KW
    Other sizes available
    Material area size(mm) volume (L) Material area size(mm) volume (L)
    200*200*200 8 300*300*300 27
    200*200*300 12 300*300*400 36
    250*250*300 19 400*400*500 80
    More sizes can be customized
