Brief Introduction:

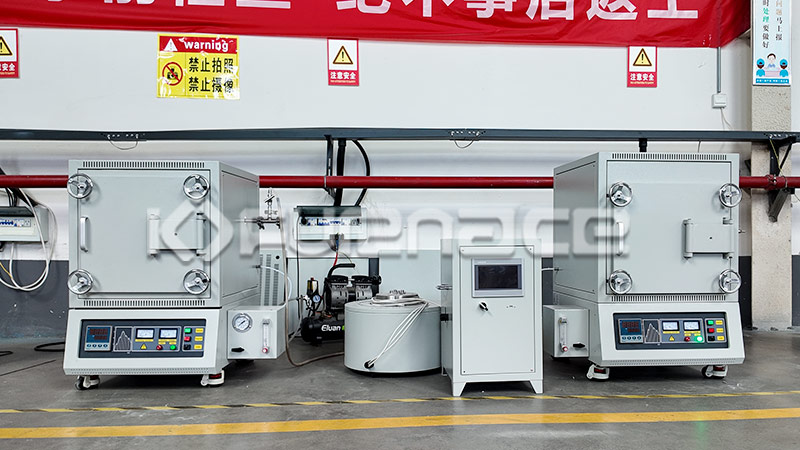

KJ-A1400 atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.
Technical Parameter:
KJ-A1400 atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.
Technical Parameter:
| Display | LED display | |
| Chamber material | Alumina fiber | |
| Max. Temperature | 1400℃ | |
| Constant working temperature | ≦1300℃ | |
| Heating elements | SiC Rods | |
| Heating rate | 0-10℃/min (Max 20℃/min) | |
| Inside chamber size | 150×150×200mm (W×H×D) | |
| Volume | 4.5L | |
| Temperature accuracy | ±1℃ | |
| Thermocouple | S type | |
| Temperature control | 30 segments programmed setting control | |
| Voltage | AC 110-480V, 50/60HZ | |
| Output Power | 4KW | |
| Float flowmeter for Argon | Flow range can be desiged on your request. | |
| Inlet&Outlet | 1 Inlet+1 Outlet+1 Vacuum Port(KF16) | |
| Mechanical vacuum gauge | -0.1-0.15MPA measurement range | |
| Warranty | One year (consumable parts such as heating elements are not covered by the warranty) | |
| Standard Accessories | Thermal gloves | |
| Crucible Tong | ||
| Thermocouple | ||
| Furnace Door Block | ||
| User Manual | ||
