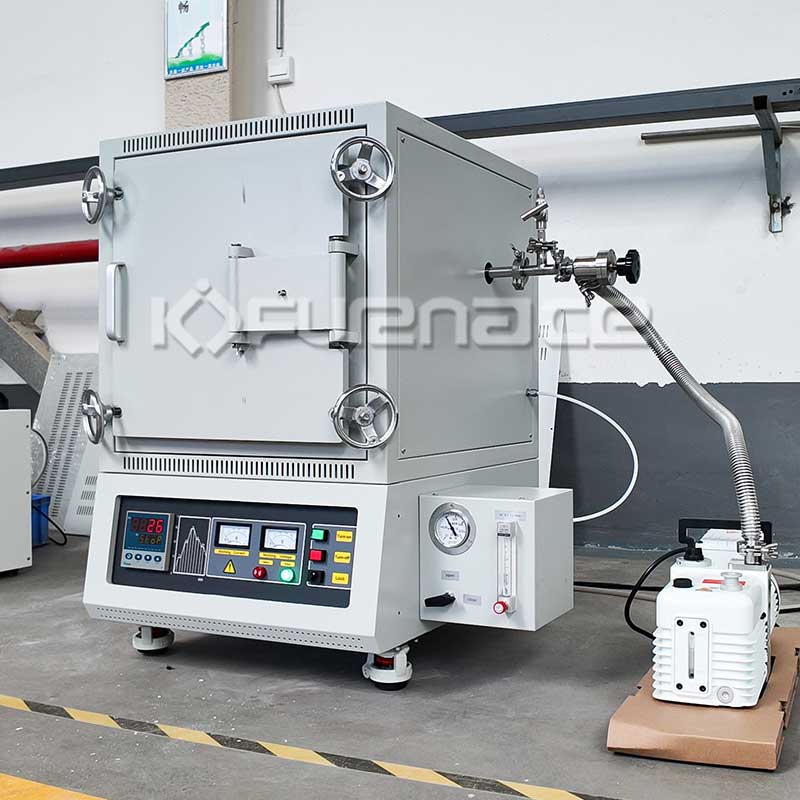

KJ-A1400-4.5L Atmosphere Furnace
  • KJ-A1400-4.5L Atmosphere Furnace
  • KJ-A1400-4.5L Atmosphere Furnace
  • KJ-A1400-4.5L Atmosphere Furnace
  • KJ-A1400-4.5L Atmosphere Furnace
  • KJ-A1400-4.5L Atmosphere Furnace

    Model:KJ-A1400-4.5L

    Description:

    KJ-A1400 atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small s

    Brief Introduction:
        KJ-A1400-4.5L atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.

    Features:

    1.Excellent heat-insulation effect, symmetrical temperature uniform.
    2.Good sealing to make sure no leakage.

    3.Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
    4. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
    5. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
    6. Power control with mutli segments programmable.

    Technical Parameter:
    Model KJ-A1400-4.5L
    Display LED display
    Chamber material Alumina fiber
    Max. Temperature 1400℃
    Constant working temperature ≦1300℃
    Heating elements SiC Rods
    Heating rate 0-10℃/min (Max 20℃/min)
    Inside chamber size 150×150×200mm (W×H×D)
    Volume 4.5L
    Temperature accuracy ±1℃
    Thermocouple S type
    Temperature control 30 segments programmed setting control
    Voltage AC 110-480V, 50/60HZ
    Output Power 4KW
    Float flowmeter for Argon Flow range can be desiged on your request.
    Inlet&Outlet 1 Inlet+1 Outlet+1 Vacuum Port(KF16)
    Mechanical vacuum gauge -0.1-0.15MPA measurement range
    Warranty One year (consumable parts such as heating elements are not covered by the warranty)
    Standard Accessories Thermal gloves
    Crucible Tong
    Thermocouple
    Furnace Door Block
    User Manual


    At the same time, we can customize different temperatures, styles and control methods specifically for customers. Welcome to inquire.

    1400C atmosphere furnace
    Laboratory atmosphere furnace
