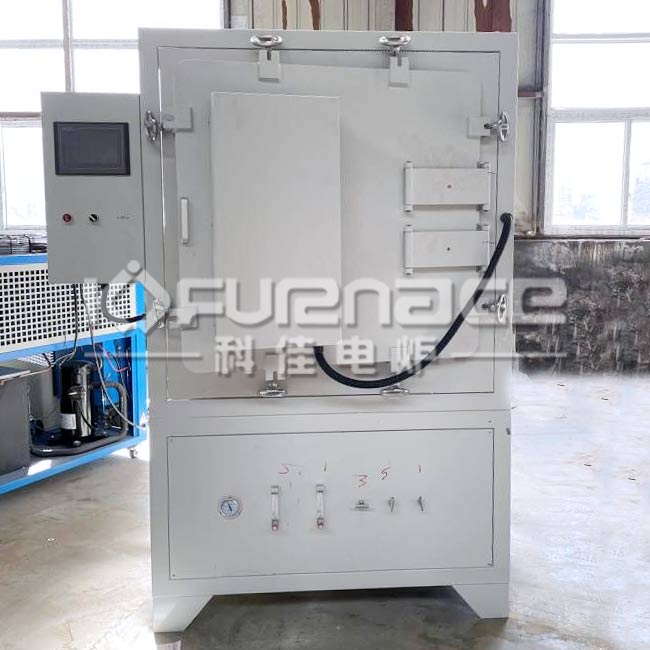

KJ-A1200-125L Atmosphere furnace
  • KJ-A1200-125L Atmosphere furnace
  • KJ-A1200-125L Atmosphere furnace
  • KJ-A1200-125L Atmosphere furnace
  • KJ-A1200-125L Atmosphere furnace
  • KJ-A1200-125L Atmosphere furnace

    Model:KJ-A1200-125L

    Description:

    KJ-A series atmosphere furnace adopts imported heat-preservation material,high purity alumina polycrystalline fiber.The fully welded double shell structure ensures the air tightness of the furnace.Temperature is controlled by double platinum rhodium therm

    Brief Introduction
    KJ-A series atmosphere furnace adopts imported heat-preservation material,high purity alumina polycrystalline fiber.The fully welded double shell structure ensures the air tightness of the furnace.Temperature is controlled by double platinum rhodium thermocouple and Al intelligent temperature controller 518P.The furnaces can protect materials from oxidation and decarburization with flowing Nitrogen,Argon and other inert gas,balanced temperature field,fast temperature rising and cooling,energy-efficient,delicate appearance,practical.It is widely used for sintering,reducing with inert atmosphere in labs of colleges and universities,research institutes and industrial and mining enterprise.

    Main Specifications
    Model KJ-A1200-125L
    Display LED
    Chamber material Alumina fiber
    Max Temperature 1200℃
    Constant working temperature ≦1100℃
    Heating elements Electric Wire With Mo
    Heating rate 0-10℃/min
    Heating zone Single zone
    Inside chamber size 500×500×500mm(W×H×D)
    Volume 125L
    Temperature accuracy ±1℃
    Thermocouple K type
    Temperature control PID automatic control via SCR power control
    Temperature curve 30-steps programmable
    Voltage AC 380V, 50/60HZ Two phases
    Output Power About 33KW
    N2 Flow Meter 0.3-3L/min flow range
    3-30L/min flow range
    O2 Flow Meter 0.3-3L/min flow range
    3-30L/min flow range
    Flow range or base on your request
    Mechanical vacuum gauge   -0.1-0.15MPa measurement range

    Vacuum pump+connecting pipe+Ball valve

      Rotary vane pump with pumping speed 4L/S
    Warranty One year (consumable parts such as heating elements are not covered by the warranty)
    Standard Accessories Thermal gloves
    Crucible Tong
    Thermocouple
    User Manual
