Rotary Tube Furnace
  • Rotary Tube Furnace
  • Rotary Tube Furnace
  • Rotary Tube Furnace
  • Rotary Tube Furnace
  • Rotary Tube Furnace

    Model:KJ-T1400

    Description:

    Rotary tube furnace is a high temperature reactor with special rotary and tilt function.

    Introduction:

        Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment

    Technical Parameter:



    Model KJ-T1400
    Display LED
    Max. Temperature 1400℃ Max for < 1 hours
    Continuous working Temperature ≤1300℃
    Heating Rate Suggestion 0~10℃/min
    Temperature Zone 300+400+300 mm3 hot zones
    Temperature Control Accuracy ±1℃
    Tube Diameter Ф110 mm OD
    Tube Material Mulite tube

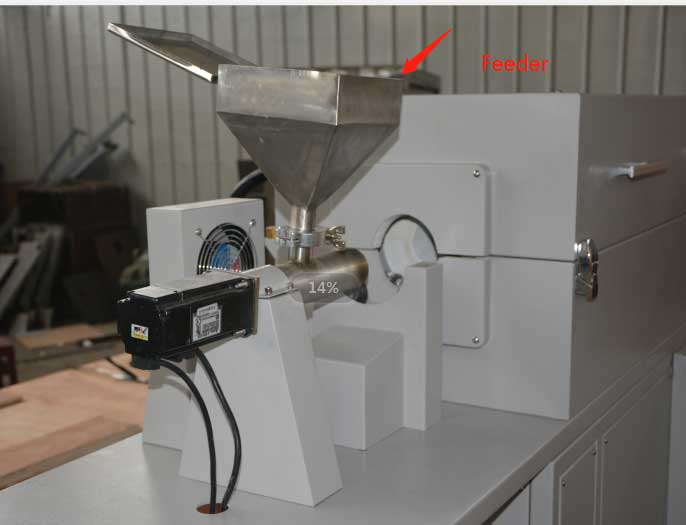

    Tube sealing One side of tube is with feeder
      The other side is with outlet
    Rotary Tube Furnace
    cover for tube and container for samples.
    Heating Element Sic heating elements
    Tube Rotating Speed 0-10 RPM
    Furnace Tilt Angle 0~5℃
    Thermocouple S Type x 3 pcs
    Tube Function Rotating and tilt function.
    Rotary Tube Furnace
    Max. Power 15 KW
    Working Voltage AC 380V 3 phases, 50Hz
    Temperature Control 3 sets PID automatic control via SCR power control
    Heating curves 30 steps programmable
    Chamber material Alumina Fiber
    Warranty One year limited warranty (Consumable parts such as heating elements and mulite tube are not covered by the warranty)


    rotary tube furnace
    rotary tube furnace
