product description:

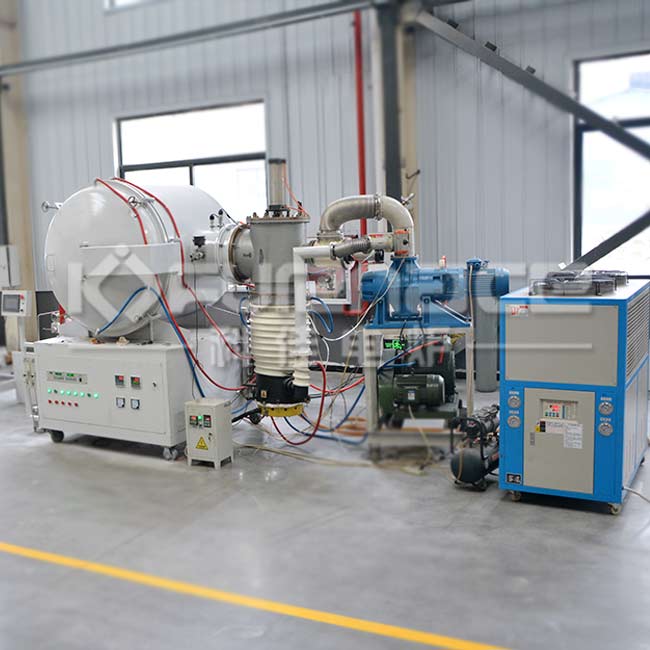

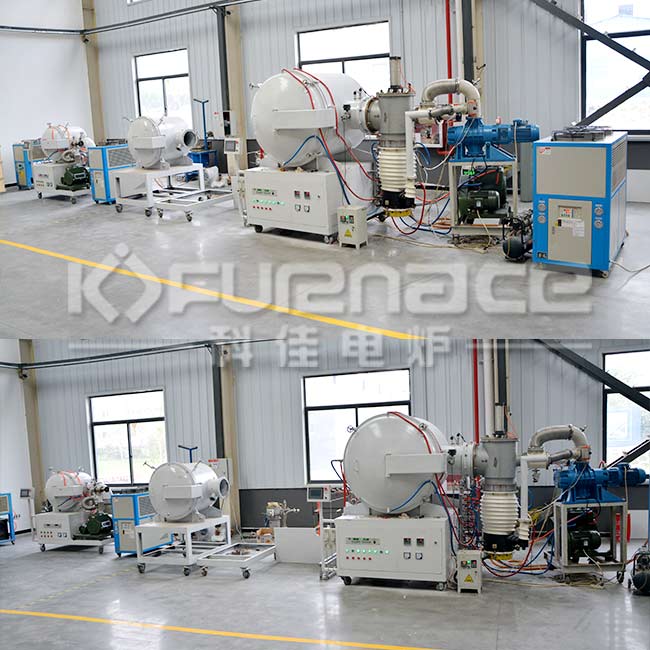

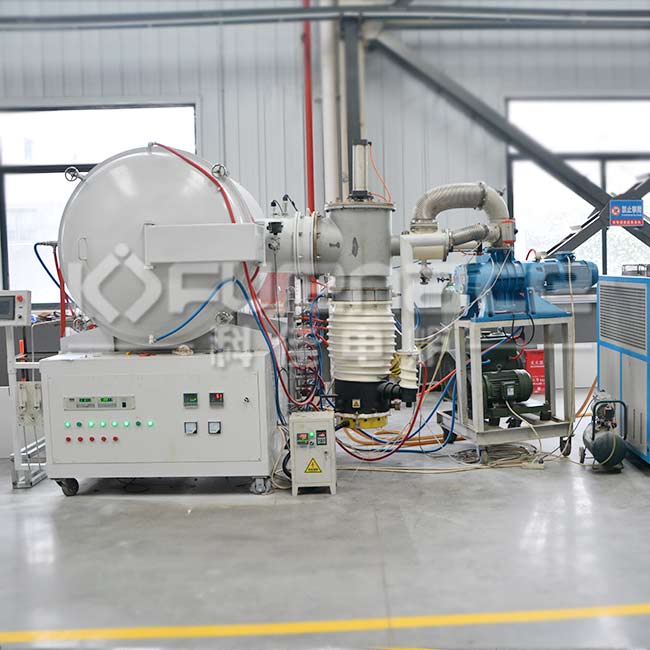

The equipment is an intermittent horizontal single-chamber vacuum brazing furnace, which is composed of a vacuum chamber, a heating system, a vacuum system, an electric control system and a cooling system. The vacuum chamber has a double-layer structure, and with the cooling system, the heat will not overflow, which is safe and environmentally friendly; the heating system purchases molybdenum belt as the heating element, and the design of the molybdenum plate heat shield has high reflectivity, uniform temperature in the furnace, clean and energy-saving; the vacuum system adopts Mechanical rotary vane pumps, Roots pumps and oil diffusion pumps form a high-vacuum pump unit, which can quickly realize a high-vacuum working environment, and the operation is simple and convenient; the electric control system purchases first-line brand electrical components such as Chint and Siemens, and the touch screen human-computer interaction interface, Various controls are convenient and fast; the cooling system can be connected to the existing circulation system, or can be separately configured with a water cooler for cooling.
Applications:
The equipment is specially designed for vacuum brazing of metal devices, and is suitable for vacuum brazing of aluminum, copper, stainless steel, high-speed steel, hard alloy and ceramics. It can be used for vacuum brazing of the same material or different materials Vacuum brazing between them can also be used for heat treatment processes such as normalizing, tempering, and annealing of various metal materials or devices, and is widely used in tests and pilot tests in the fields of automobiles, electronics, national defense, aviation, and aerospace.
Features:
1. Molybdenum foil metal furnace and molybdenum heating belt are used as heating elements, and the maximum temperature can reach 1300°C.
2. The molybdenum heating belt is circularly distributed in the furnace, and is heated by radiation around it. The temperature uniformity of the furnace is high, which can reach plus or minus 5 degrees.
3. Clean molybdenum foil furnace, equipped with mechanical pump + diffusion pump vacuum unit, the cold vacuum degree is 6.67*10^(-3)Pa; the working vacuum degree is 10-^(-2)Pa.
4. According to the need, it can be filled with inert gas for accelerated cooling.
Product parameters:
The equipment is an intermittent horizontal single-chamber vacuum brazing furnace, which is composed of a vacuum chamber, a heating system, a vacuum system, an electric control system and a cooling system. The vacuum chamber has a double-layer structure, and with the cooling system, the heat will not overflow, which is safe and environmentally friendly; the heating system purchases molybdenum belt as the heating element, and the design of the molybdenum plate heat shield has high reflectivity, uniform temperature in the furnace, clean and energy-saving; the vacuum system adopts Mechanical rotary vane pumps, Roots pumps and oil diffusion pumps form a high-vacuum pump unit, which can quickly realize a high-vacuum working environment, and the operation is simple and convenient; the electric control system purchases first-line brand electrical components such as Chint and Siemens, and the touch screen human-computer interaction interface, Various controls are convenient and fast; the cooling system can be connected to the existing circulation system, or can be separately configured with a water cooler for cooling.
Applications:
The equipment is specially designed for vacuum brazing of metal devices, and is suitable for vacuum brazing of aluminum, copper, stainless steel, high-speed steel, hard alloy and ceramics. It can be used for vacuum brazing of the same material or different materials Vacuum brazing between them can also be used for heat treatment processes such as normalizing, tempering, and annealing of various metal materials or devices, and is widely used in tests and pilot tests in the fields of automobiles, electronics, national defense, aviation, and aerospace.
Features:
1. Molybdenum foil metal furnace and molybdenum heating belt are used as heating elements, and the maximum temperature can reach 1300°C.
2. The molybdenum heating belt is circularly distributed in the furnace, and is heated by radiation around it. The temperature uniformity of the furnace is high, which can reach plus or minus 5 degrees.
3. Clean molybdenum foil furnace, equipped with mechanical pump + diffusion pump vacuum unit, the cold vacuum degree is 6.67*10^(-3)Pa; the working vacuum degree is 10-^(-2)Pa.
4. According to the need, it can be filled with inert gas for accelerated cooling.
Product parameters:
| Product name | 1200℃ Vacuum Brazing Furnace 43L |
| Model | KJ-VM1200-43CWG |
| Extreme temperature | 1300℃ |
| Working | ≤1200℃ |
| work area size | 350×350×350mm |
| Heating element | High temperature molybdenum strip |
| Insulation components | High temperature molybdenum plate + stainless steel molybdenum plate |
| Temperature measuring element | S type thermocouple |
| heating control | It adopts PID intelligent temperature control module design, can edit 30 sections of heating and cooling curves, and can store 16 groups of process formulas through the touch screen |
| Temperature control accuracy | ±1℃ |
| Heating rate | 0-10℃/min |
| Ultimate vacuum | ≤6.67×10-3Pa (empty, cold, cleaned) |
| Vacuum gauge | Composite digital display vacuum gauge |
| safety protection | The equipment has functions such as self-inspection, fault self-diagnosis, automatic protection, and prevention of misoperation. In case of over-temperature, over-current, broken coupler, water cut-off and other faults, it can automatically shut down for protection and give an audible and visual alarm |
| Air system | The equipment is reserved with an air inlet pipe, which can be filled with inert gases such as nitrogen and argon for protection. |
| Operation interface | Touch screen human-computer interaction interface |
| voltage | three phase 380V，50Hz |
| heating power | 50KW ( actual power adjustable） |
| Total power of equipment | 65KW (including heating system, vacuum unit, chiller, etc.) |
