Syngas pyrolysis system
  • Syngas pyrolysis system
  • Syngas pyrolysis system
  • Syngas pyrolysis system
  • Syngas pyrolysis system
  • Syngas pyrolysis system

    Model:KJ-T1200-V3Z1

    Description:

    Parameters: Model KJ-T1200-V3Z1 Part I Primary Reactor
    Structure Split tube furnace Tube size OD280mm, three-heating z

    Parameters:
    Model KJ-T1200-V3Z1

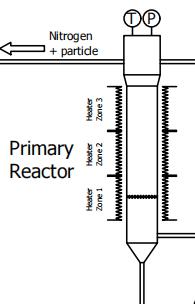

    Part I Primary Reactor

     vertical tube furnace
    Structure Split tube furnace
    Tube size OD280mm, three-heating zone 460+460+460mm
    Tube material 310S
    Sealing  Reactor top with clamp;
    Silicone gasket&flange with grove for top lid;
    Reactor outlet with flange and groove+silicone gasket, clamp;
    Heating element Resistance wire with Mo
    Refractory material Semi-cylinder ceramic fiber
    Max. working Temperature 1000℃
    Temperature sensor type Three K type thermocouples
    Temperature Control Three temperature controllers to control each zone separately
    30 steps programmable
    PID automatic control
    Over-temp protection
    Heating Rate 0~20℃/min (suggestion: ≤10℃)
    Temperature Accuracy +/-1℃
    Working Voltage  110-415V, 50/60Hz
    Max. Heating Power  40 KW(specific according to design)

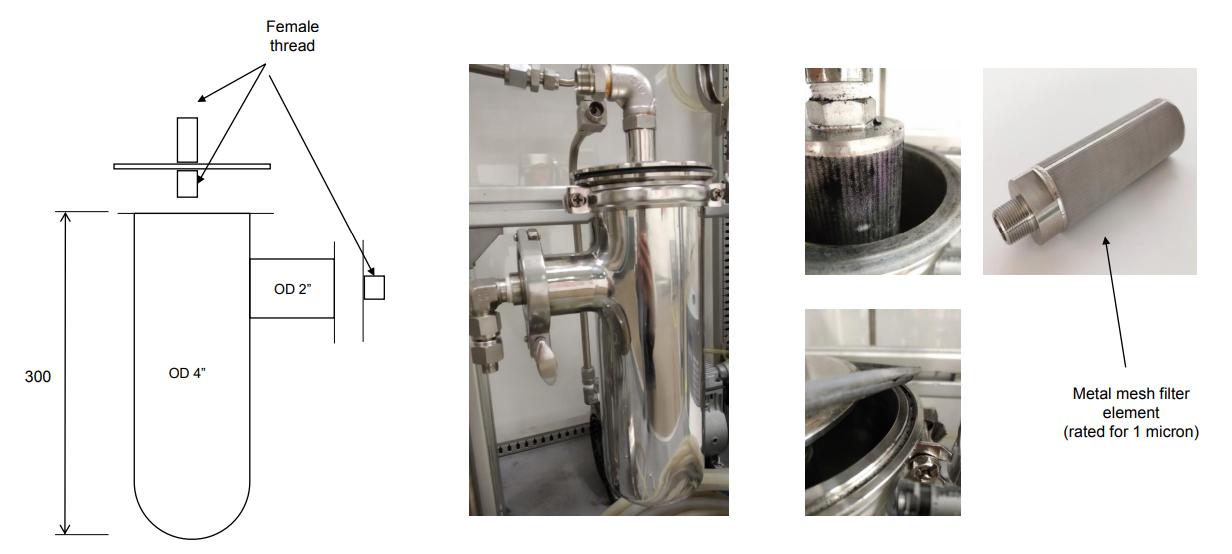

    Part II Particle filter

    Particle filter 1 and 2 OD100mmxH300mm,
    Metal mesh filter element (rated for 1 micron)
    Particle filter 3 15L
    Metal mesh filter element (rated for 1 micron)
    Part III Gas Buffer Tank

    Volume Stainless steel 20 L
    Pressure  Analog pressure gauge max. 6-10 bar
    Pressure sensor up to 6-10 bar
    Part IV Air driven gas booster

    Max. Drive pressure 10 Bar/145psi
    Max. Outlet pressure 40 Bar/580psi
    Part V Float flowmeter

    4 Float flowmeters Measuring range: 0-100L/min

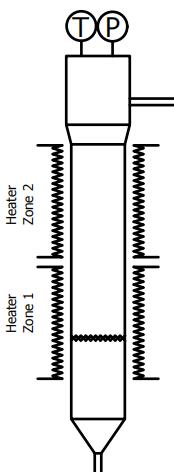

    Part VI Secondary Reactor
     100
    Structure Split tube furnace
    Tube size OD280mm, double-heating zone 690+690mm
    Tube material 310S
    Sealing Reactor top with clamp;
    Silicone gasket&flange with grove for top lid;
    Reactor outlet with flange and groove+silicone gasket, clamp;
    Heating element Resistance wire with Mo
    Refractory material Semi-cylinder ceramic fiber
    Max. working Temperature 1000℃
    Temperature sensor type Two K type thermocouples
    Temperature Control Two temperature controllers to control each zone separately
    30 steps programmable
    PID automatic control
    Over-temp protection
    Heating Rate 0~20℃/min (suggestion: ≤10℃)
    Temperature Accuracy +/-1℃
    Working Voltage 110-415V, 50/60Hz
    Max. Heating Power 40 KW(specific according to design)
    Part VI Afterburner
      ...

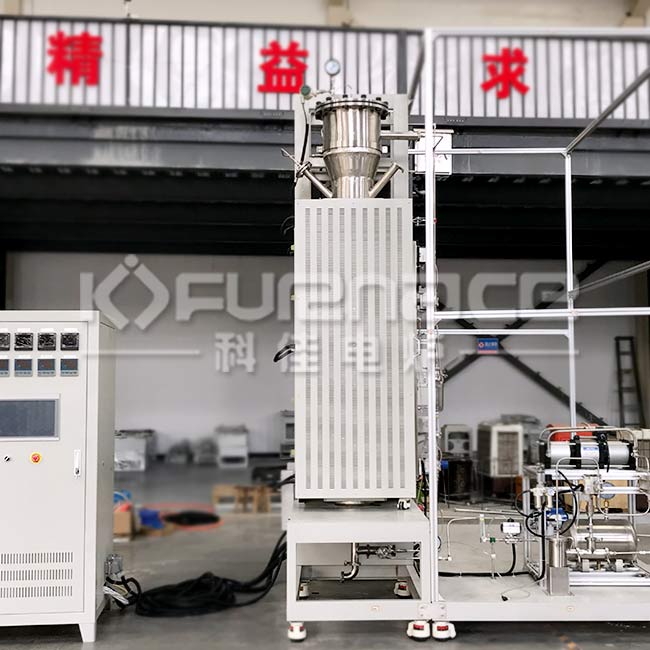

    Whole system with stainless steel frame

    vertical furnace system
