Laboratory fluidized bed vertical tube furnace
  • Laboratory fluidized bed vertical tube furnace
  • Laboratory fluidized bed vertical tube furnace
  • Laboratory fluidized bed vertical tube furnace
  • Laboratory fluidized bed vertical tube furnace
  • Laboratory fluidized bed vertical tube furnace

    Model:KJ-TL1200-S25LK5

    Description:

    KJ-TL1200-S25LK5 is a fluidized bed vertical tube furnace, specially designed for CVD experiments of powder surface deposition.

    Introduction:

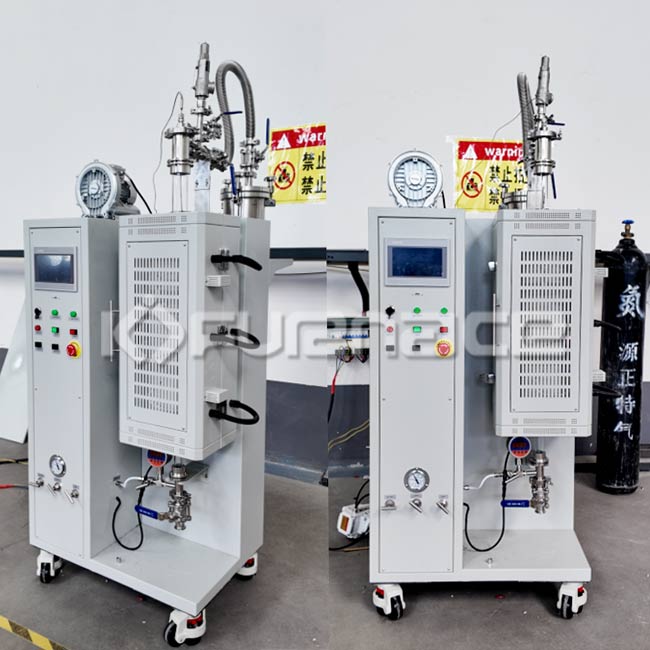

    KJ-TL1200-S25LK5 is a fluidized bed vertical tube furnace, specially designed for CVD experiments of powder surface deposition. The furnace tube is a high-purity quartz tube with a sand core plate inside the furnace tube. The pore size of the sand core is 50 microns. The powder can be placed on a porous quartz plate, and the gas can be introduced from the lower end of the furnace tube. The sample particles are suspended in the heating area through the porous quartz plate to conduct deposition experiments. There are reserved inlet and outlet ports and vacuum pump interfaces, which can be used with a vacuum pump.


    fluidized bed vertical tube furnace


    features
    • Vertical open design The furnace is designed to be vertical open. When the experiment is over, the furnace can be opened, the quartz tube can be taken out, and the particles after the reaction can be taken out.

    • It can realize complex heat treatment processes. Five temperature zones are independently controlled, which can form a temperature gradient or a longer constant temperature zone in the heating zone.

    • Intelligent temperature control system Adopts artificial intelligence regulation technology, has PID regulation, self-tuning functions and can program multi-stage temperature rise and fall programs

    • Over-temperature protection and alarm Over-temperature protection and broken-couple protection. The electric furnace heating circuit is automatically cut off when over-temperature or broken-couple occurs. Over-temperature protection and alarm

    • Touch screen operation is simple and convenient Touch screen operation is adopted, and the temperature rise and fall data can be recorded, and the data can be stored and exported

    • Excellent dynamic sealing system The furnace tube and flange are sealed by O-ring extrusion, which is easy to remove and can be removed repeatedly, and has good airtightness.

    Technical Parameters
    Vertical tube furnace part
    Model KJ-TL1200-S25LK5
    Heating zone length  Five temperature zones, each zone is 100mm, the total length of the heating zone is 500mm
    Furnace tube size diameter 25*1200mm
    Furnace tube material  High purity quartz tube with built-in 40-90 micron sand core plate (customized)
    Working temperature  ≦1100℃
    Max temperature 1200℃
    Temperature measuring element  K-type thermocouple temperature measurement, 5 thermocouples
    Temperature Control System Intelligent 30-segment PID programmable control
    The temperature control system adopts artificial intelligence regulation technology, has PID regulation, self-tuning functions and can compile multi-stage temperature rise and fall programs;
    1. Use PID to adjust temperature control, and can set multi-stage temperature rise and fall programs
    2. Temperature control accuracy ±1ºC
    3. Over-temperature protection and broken couple protection. The electric furnace heating circuit is automatically cut off when over-temperature or broken couple is exceeded
    4. The instrument has the function of temperature self-tuning
    5. Touch screen operation is adopted, and the temperature rise and fall data can be recorded, and the data can be stored and output
    Temperature control accuracy ±1℃
    Temperature control protection With over-temperature and broken couple protection function
    Heating rate 0-20ºC/min,10ºC/min is recommended, which can be adjusted according to the experimental process
    Heating element  Alloy resistance wire
    Operating Voltage AC 220V single phase 50HZ
    Heating power 5KW
    Furnace chamber material  The furnace is made of polycrystalline fiber material, which has good thermal insulation performance, high reflectivity and balanced temperature field.
    Flange Stainless steel vacuum flange, easy to disassemble
    Sealing system The furnace tube and flange are sealed with O-rings, which are easy to remove and can be removed repeatedly, and have good airtightness.
    Fluidized area 1. The reaction gas passes through the reaction zone evenly.
    2. The solid particles are suspended in the heating zone by the gas.
    3. The furnace body is designed to be open. When the experiment is over, the furnace body can be opened, the quartz tube can be taken out, and the particles after the reaction can be taken out.
    Note: When the gas is introduced to suspend the sample particles, the particles may pass through the heating zone due to excessive gas flow. Therefore, the gas flow should be adjusted according to the size of the particles during the experiment.


    Shell structure Double shell structure with air cooling system, open type
    Furnace structure Vertical structure
    Intake control Equipped with argon float flowmeter, the flow range can be selected according to user requirements
    Air inlet and outlet Two inlets and one outlet, air inlet at the bottom (two-way air inlet), air outlet at the top
    Standard accessories A set of gas system, 1 pair of high-sealing flanges, 1 quartz tube, 4 sealing rings, 1 pair of high-temperature gloves, 1 crucible hook, 1 hexagonal wrench for disassembling flanges, 1 warranty card and instruction manual
    After-sale warranty 12 months (excluding wearing parts)
