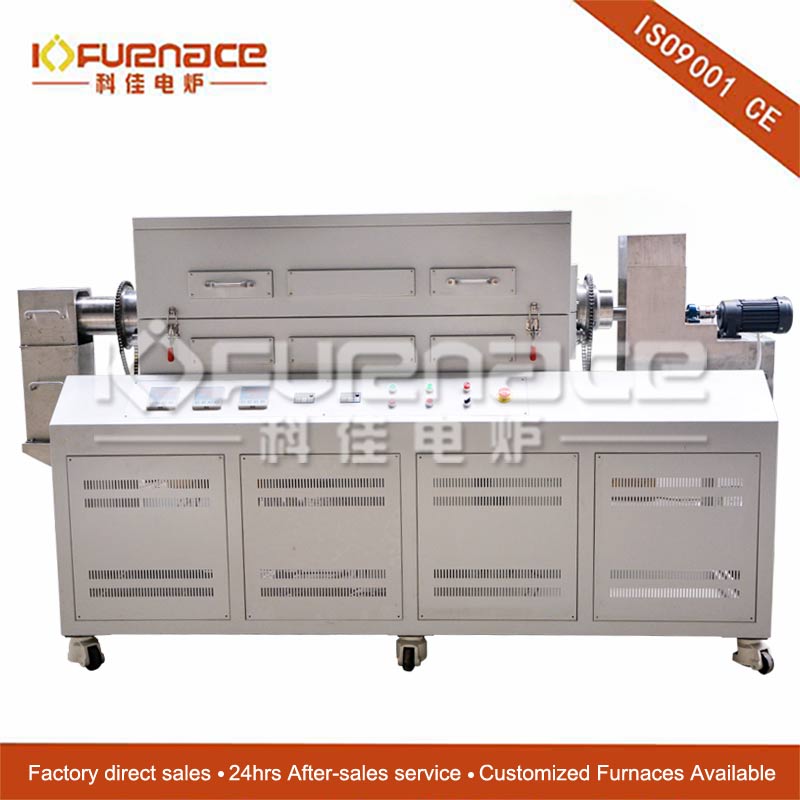

Continuous feeding and discharging rotary and tilting tube furnace

Continuous feeding and discharging rotary and tilting tube furnace

Model：KJ-TX1400-140IC

Description：

This rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity.

Email：web@kejiafurnace.com

Leave A Message

Online Chat

IntroductionFeaturesTechnical ParametersInquiryCustomer Case

Introduction:
This rotary tube furnaces consist of heating coils/ rods surrounding a cylindrical cavity where temperature is controlled by a thermocouple. A rotary tube furnace is available as single or multi-zone, split design. They also come in either continuous or batch rotary tube furnaces. Many tube furnaces are equipped with two or more heating zones and can produce temperatures up to 1300°C. The general design will vary based on process temperature, throughput, atmosphere requirements, characteristics of material, cooling requirements, etc.

Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.

features

The tube is rotary design for uniform heating.
Three independent heating zone with independent temperature controller to guarantee good uniform heating.
Adjustable slanted control for sintering material in / out.
Continuous spiral feeding.
30 steps of programmable temperature, PID automatic temperature controller.
Combined aural and visual alarm for accident of over temperature & thermocouple broken, and the power supply of the heating part will cut off automatically.

Technical Parameters

Model	KJ-TX1400-140IC
Display	LED
Max. Temperature	1400℃ for limiting
Continuous working Temperature	≤1300℃
Heating Rate	Suggestion 0~10℃/min
Temperature Zone	300+400+300 mm 3 hot zones temperature
Temperature Control Accuracy	±1℃
Tube Diameter	Ф140/130 mm OD /Ф120/110 mm ID More furnace tube sizes can be customized according to customer needs
Tube Material	Mullite tube
Tube sealing	One side of tube is with feeder.
Tube sealing	The other side is with outlet. Cover for tube and container for samples.
Heating Element	Sic heating elements
Tube Rotating Speed	0-10 RPM
Furnace Tilt Angle	0~10℃
Thermocouple	S Type
Tube Function	Rotating and tilt function.
Temperature Control	3 Sets PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Warranty	One year limited warranty (Consumable parts such as heating elements and mullite tube are not covered by the warranty)

Automatic loading and unloading rotating tilting tube furnace

Rotary tilting tube furnace

We can customize different pipe diameters, temperature zones, heating sizes, etc. according to customer needs. Everyone is welcome to come for consultation.
