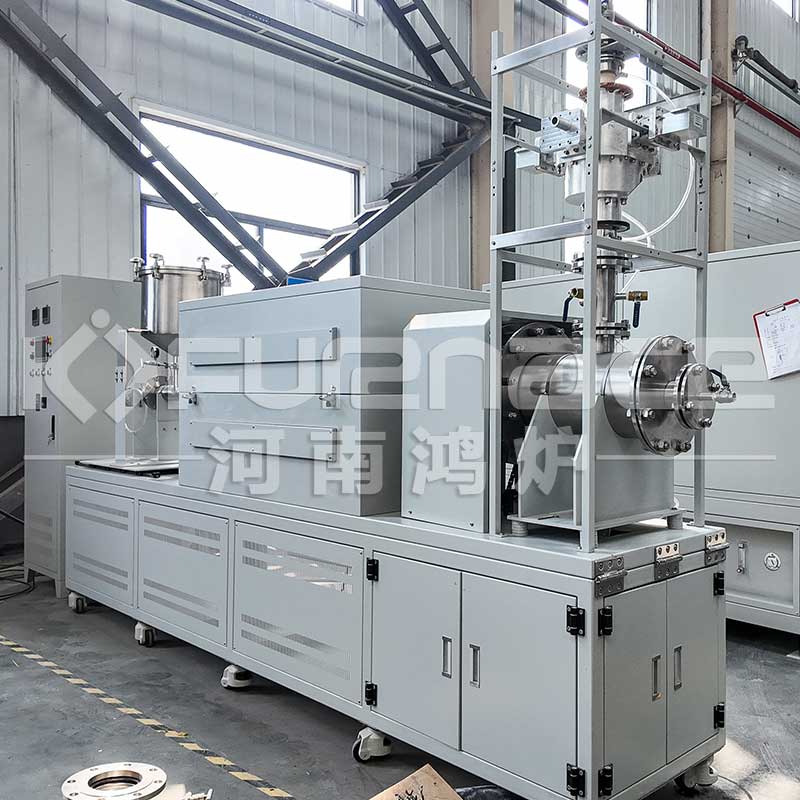

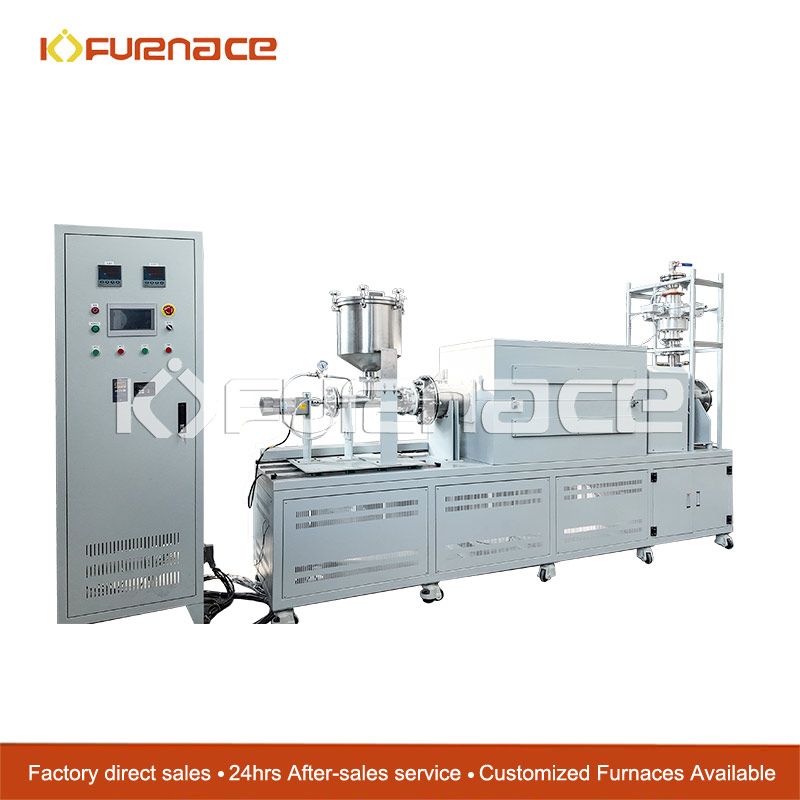

Continuous metal liner small rotary kiln
  • Continuous metal liner small rotary kiln
  • Continuous metal liner small rotary kiln
  • Continuous metal liner small rotary kiln
  • Continuous metal liner small rotary kiln
  • Continuous metal liner small rotary kiln

    Model:KJ-TX1000-H219

    Description:

    This equipment is specifically designed for laboratory calcination and drying of battery positive and negative electrode materials, non-acidic and non-alkaline powder materials, and granular materials. Users can adjust parameters such as rotation speed a


    Equipment Introduction:
    This rotary tilting tube furnace utilizes silicon carbide rod heating, a 30-stage programmable temperature control system, phase-shift triggering, and thyristor control. The furnace chamber is constructed of alumina polycrystalline fiber for a balanced temperature field. The double-layer furnace shell features an air cooling system for rapid temperature rise and fall. A lifting plate is installed within the tube, and the furnace tube features forward and reverse rotation and adjustable speed. This tilting rotary tube furnace utilizes dual temperature zones with independent heating control, each with multiple programmable temperature control. This equipment is specifically designed for laboratory calcination and drying of battery positive and negative electrode materials, non-acidic and non-alkaline powder materials, and granular materials. Users can adjust parameters such as rotation speed and heating temperature to suit the specific material being calcined, adapting to the processing needs of various materials.


    rotary kiln

    features
    • The rotating motion of the furnace tube causes the materials to be constantly turned and mixed in the furnace, avoiding the problems of material accumulation and local overheating, ensuring that the materials are heated evenly, thereby improving the consi

    • It can process materials in various forms, such as powders, granules, bulk solids, etc., and is suitable for heating, sintering, synthesis and other processes of various materials, including ceramics, metals, semiconductors, catalysts and other material f

    • PID automatic control and thyristor adjustment can accurately control the temperature in the furnace, achieve a stable heating process, improve heating quality, and ensure the reliability and repeatability of product performance.

    Technical Parameters
    Model KJ-TX1000-H21
    Working temperature ≤600℃ under continuous operation; limit temperature: 1000℃ (short time)
    Heating element Silicon carbon rod
    Thermouple N type
    Temperature control accuracy ±1℃
    Temperature control system PID automatic control is achieved through SCR power control;
    30 programmable steps;
    Over-temperature alarm and burnout indication.
    Controller touchscreen
    Tilt angle Speed 1-2r/min adjustable, tilt angle: 0-5° adjustable
    Heating rate suggest 0-10℃/min
    Furnace tube size Outer diameter 219mm, total length approximately 2150mm (subject to actual length)
    (Customizable upon request)
    Temperature zone length 500mm+500mm
    (Can be customized according to customer needs)
    Temperature zone number double temperature zone
    Furnace tube material Stainless steel
    Furnace door structure Electric opening
    Furnace structure Double-layer structure of carbon steel shell with cooling fan
    Furnace cavity material Alumina polycrystalline fiber
    In and out Stainless steel inlet and outlet hopper, sealed structure
    Air intake and outlet system The left end of the furnace tube is reserved for air inlet, the right end is for pyrolysis gas outlet, the pyrolysis gas end is reserved for water vapor, argon gas interface, sampling port, and the rear end is connected to the water cooling flange
    Optional Separate water cooler provides cooling water for water-cooled flange
