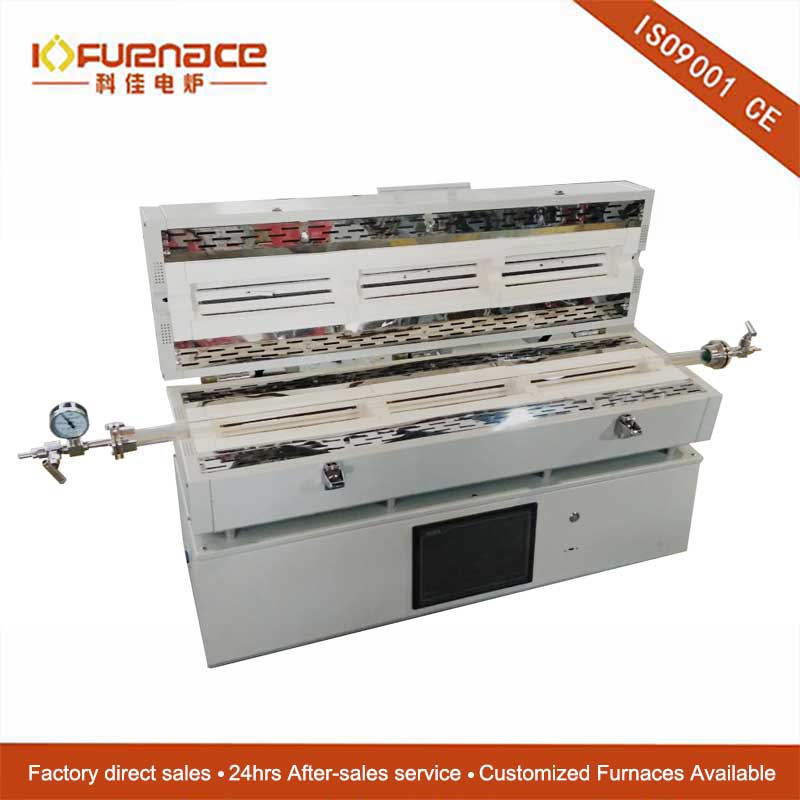

Touch screen three temperature zone tube furnace
  • Touch screen three temperature zone tube furnace
  • Touch screen three temperature zone tube furnace
  • Touch screen three temperature zone tube furnace
  • Touch screen three temperature zone tube furnace
  • Touch screen three temperature zone tube furnace

    Model:KJ-T1200-L3015-KQ

    Description:

    Each temperature control system is adjusted in PID mode, and 30 steps of temperature rise and fall programs can be set. The K-type thermocouple is used for temperature measurement and control, and its temperature control accuracy can reach +/- 1℃.

    Product Introduction:
       The touch-screen three-temperature zone tube furnace is a three-temperature zone open tube furnace that has passed CE certification. Each temperature zone is separately controlled by three independent temperature control systems. For the temperature, four-stage temperature gradient can be formed in the heating zone or a longer constant temperature zone can be formed. Each temperature control system is adjusted in PID mode, and 30 steps of temperature rise and fall programs can be set. The K-type thermocouple is used for temperature measurement and control, and its temperature control accuracy can reach +/- 1℃.

    Technical Parameter:

    product name

    Touch screen three temperature zone tube furnace

    Product number

    KJ-T1200-L3015-KQ

    Furnace material

    Furnace uses alumina polycrystalline fiber

    Furnace tube size

    Φ30×1400mm

    Heating zone

    Three temperature zone heating, each temperature zone 300mm

    Furnace tube material

    Quartz furnace tube

    Operating temperature

    1100°C

    Maximum temperature

    1200°C

    Temperature control accuracy

    ±1℃

    Temperature control method

    Touch screen control, independent temperature control of three temperature zones, each temperature zone can realize intelligent 30-segment PID programmable control, with over-temperature and burnout protection functions

    Flange joint

    Equipped with two stainless steel vacuum flanges, mechanical pressure gauge has been installed

    Sealing system

    The furnace tube and flange are extruded and sealed with a silica gel O-ring, which is convenient to remove and can be removed repeatedly, and has good air tightness. Gases such as argon and nitrogen can be vented.

    Heating rate

    0-10℃/min

    Heating element

    Resistance wire

    Operating Voltage

    AC220V 50Hz

    Temperature measuring element

    3 K-type thermocouples, independent temperature control

    Vacuum

    Pre-evacuated to -0.1MPa (value of vacuum pressure gauge)

    Provide related accessories

    Crucible tongs, high temperature gloves, thermocouple, furnace plug, manual, warranty card, etc.

    After-sales service

    12-month warranty and lifetime warranty (except vulnerable parts)
